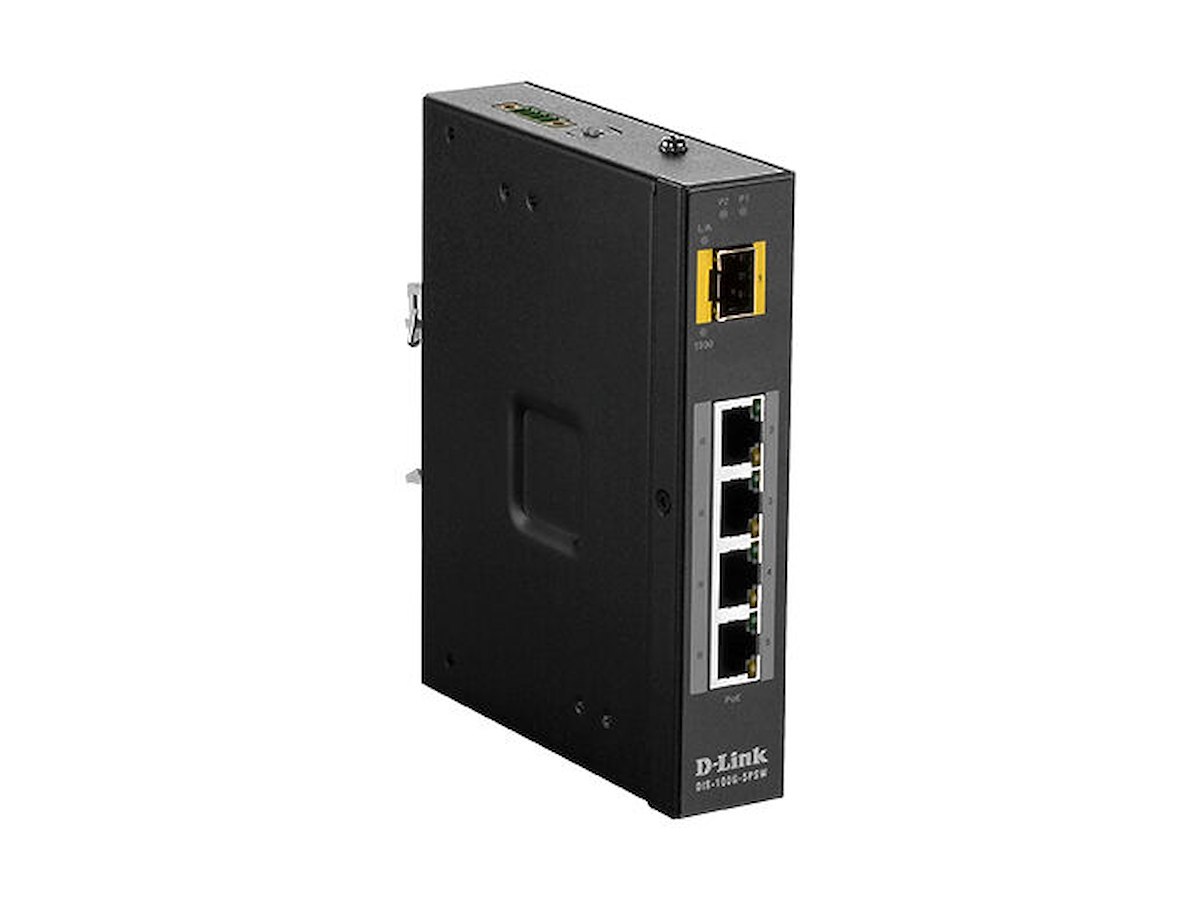

Unmanaged Plug and Play with SFP and PoE
Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.
Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Switch lag | L2 |
Trafik formning | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 4 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Antal SFP modulslots | 1 |
Fiber optisk strømstik | LC |
Netværk | |
Netværksstandarder | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
10G understøttelse | Ingen |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Broadcast stormkontrol | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
Dataoverførsel | |
MAC adresselabel | 2000 entries |
Switch kapacitet | 10 Gbit/sek. |
Hastighed for videresendelse | 7,44 Mpps |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Design | |
Stativ-montering | Ingen |
Produktfarve | Sort |
LED-indikatorer | LAN, PoE, Strøm |
Kan monteres på væggen | Ja |
DIN-skinne montering | Ja |
Elektromagnetisk kompatibilitet | FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3) |
Certificering | IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE |
Tekniske detaljer | |
Forsendelseskassens højde (indvendig) | 24 cm |
Forsendelseskasses kassens bredde (indvendig) | 38 cm |
Forsendelseskassens længde (indvendig) | 39 cm |
Forsendelsesemballage nettovægt | 7 kg |
Produkter pr. forsendelseskasse (indvendig) | 10 stk |
Palle bruttovægt (luft) | 251,3 kg |
Antal papkasser pr. palle (luft) | 30 stk |
Antal pr. palle (luft) | 300 stk |
Pallens bruttolængde | 120 cm |
Pallens bruttobredde | 110 cm |
Pallehøjde (luft) | 133,5 cm |
Palle bruttovægt (hav) | 391,9 kg |
Antal papkasser pr. palle (hav) | 48 stk |
Antal pr. palle (hav) | 480 stk |
Pallehøjde (hav) | 2,06 m |
Forsendelseskassens bruttovægt (indvendig) | 7,81 kg |
Strømstyring | |
DC indgangsspænding | 12 - 58 V |
Strømforbrug (maks.) | 120,2 W |
Strømbeskyttelsesfunktioner | Overstrøm, Omvendt polaritet |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 4 |
Power over Ethernet (PoE) spændingsområde | 54 - 58 V |
Total Power over Ethernet (PoE) | 120 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | -40 - 75 °C |
Opbevaringstemperatur (T-T) | -40 - 85 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
Varmeafgivelse | 410,12 BUT/t |
Vægt & størrelser | |
Bredde | 139 mm |
Dybde | 29 mm |
Højde | 107 mm |
Vægt | 375 g |
Emballeringsdata | |
Pakkebredde | 181 mm |
Pakkedybde | 210 mm |
Pakkehøjde | 75 mm |
Pakkevægt | 700 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
