Industry Standard CLI with 10G SFP+ stacking

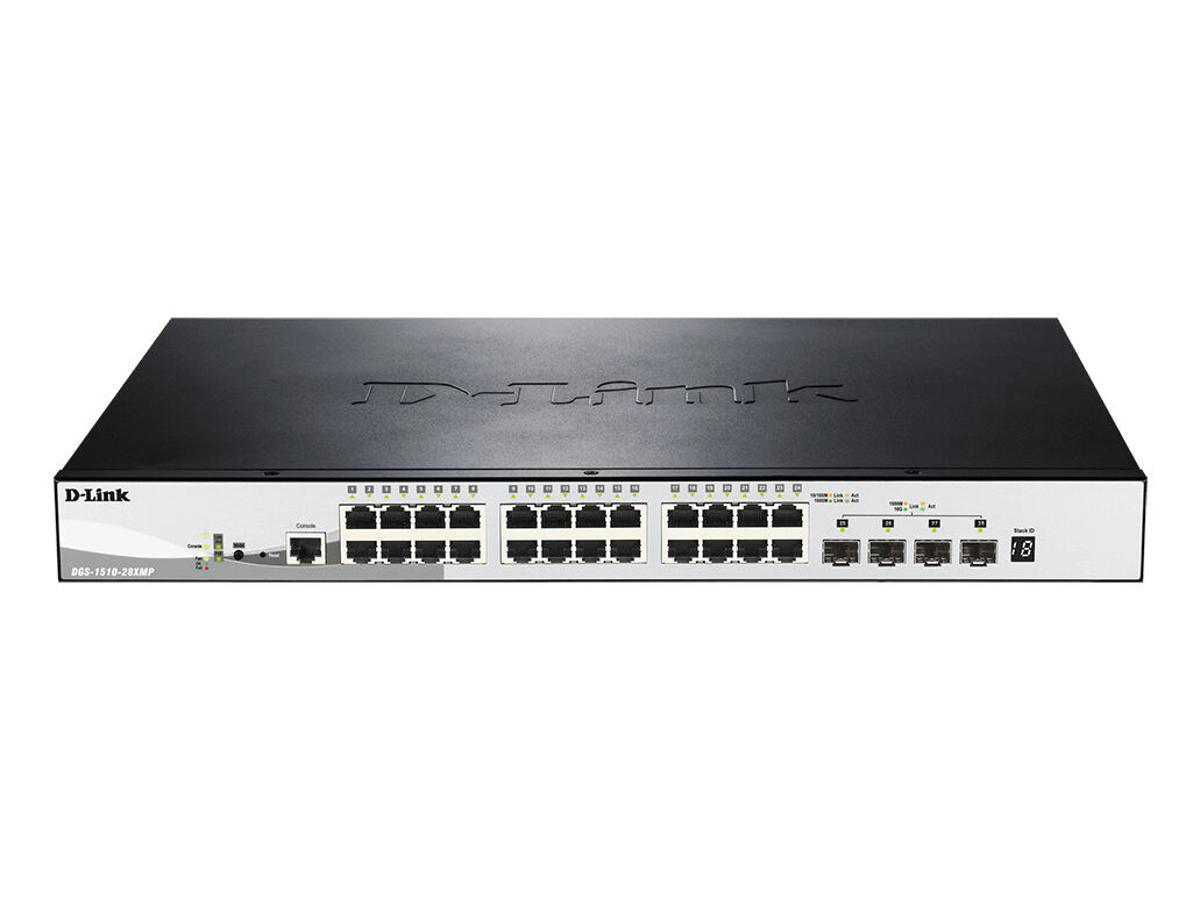

The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.
Fully‑Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images,and multiple configuration files.
10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.
Max PoE with budgets up to 740W2
Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.
Powerful Network Design and Management Software
The DGS-1510 Series supports D-View 8, an intelligent management platform that allows for centralized management of the core network. This extensive toolset enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.
Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2/L3 |
Servicekvalitet support (QoS) | Ja |
Trafik klassificering | Ja |
System hændelseslog | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Antal SFP + modulslots | 4 |
Fiber optisk strømstik | SFP+ |
Netværk | |
Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
10G understøttelse | Ja |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
Understøttede kabeltyper | Cat5, Cat5e |
Port-spejlning | Ja |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Broadcast stormkontrol | Ja |
Auto MDI/MDI-X | Ja |
Spanning tree protokol | Ja |
Head-of-line (HOL) blokering | Ja |
Auto-forhandling | Ja |
MAC-adresse auto-indlæring understøttet | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Tagged VLAN, Protocol-based VLAN |
Antal VLAN'er | 4094 |
Dataoverførsel | |
MAC adresselabel | 16384 entries |
Switch kapacitet | 128 Gbit/sek. |
Gennnemløb | 95,24 Mpps |
Opbevar-og-frem | Ja |
Antal køer | 8 |
Jumbo Frames support | Ja |
Jumbo rammer | 9216 |
Pakke bufferlager | 1,5 MB |
Sikkerhed | |
DHCP funktioner | DHCP server, DHCP client |
Adgangskontrolliste (ACL) | Ja |
Adgangskontrolliste (ACL) regler | 768 |
IGMP snooping | Ja |
Sikkerhedsalgoritmer | 802.1x RADIUS, EAP, SNMP, SSH, SSH-2, SSL/TLS |
SSH/SSL support | Ja |
BPDU filtrering/beskyttelse | Ja |
Godkendelse | MAC-baseret godkendelse, Portbaseret godkendelse |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Design | |
Stativ-montering | Ja |
Stabelbar | Ja |
Produktfarve | Sort, Grå |
LED-indikatorer | Aktivitet, Link, PoE, Strøm, Hastighed |
Antal blæsere | 2 blæser(e) |
Sikkerhed | cUL, CB |
Præstation | |
Indbygget processer | Ja |
Processorfrekvens | 400 MHz |
Intern hukommelse | 256 MB |
Flashhukommelse | 32 MB |
Gennemsnitstid mellem fejl (MTBF) | 274796 t |
Tekniske detaljer | |
Forsendelseskassens højde (indvendig) | 48,5 cm |
Forsendelseskasses kassens bredde (indvendig) | 38,5 cm |
Forsendelseskassens længde (indvendig) | 53 cm |
Forsendelsesemballage nettovægt | 14,3 kg |
Produkter pr. forsendelseskasse (indvendig) | 3 stk |
Palle bruttovægt (luft) | 561,6 kg |
Antal papkasser pr. palle (luft) | 24 stk |
Antal pr. palle (luft) | 72 stk |
Pallens bruttolængde | 110 cm |
Pallens bruttobredde | 120 cm |
Pallehøjde (luft) | 2,08 m |
Palle bruttovægt (hav) | 561,6 kg |
Antal papkasser pr. palle (hav) | 24 stk |
Antal pr. palle (hav) | 72 stk |
Pallehøjde (hav) | 2,08 m |
Forsendelseskassens bruttovægt (indvendig) | 22,6 kg |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Strømforbrug (maks.) | 436,3 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet (PoE) porte, antal | 24 |
Power over Ethernet (PoE) effekt pr. port | 30 W |
Total Power over Ethernet (PoE) | 370 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | -5 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
Varmeafgivelse | 1487,78 BUT/t |
Vægt & størrelser | |
Bredde | 440 mm |
Dybde | 308,5 mm |
Højde | 44 mm |
Vægt | 4,25 kg |
Emballeringsdata | |
Pakkebredde | 450 mm |
Pakkedybde | 510 mm |
Pakkehøjde | 121 mm |
Pakkevægt | 7,06 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
