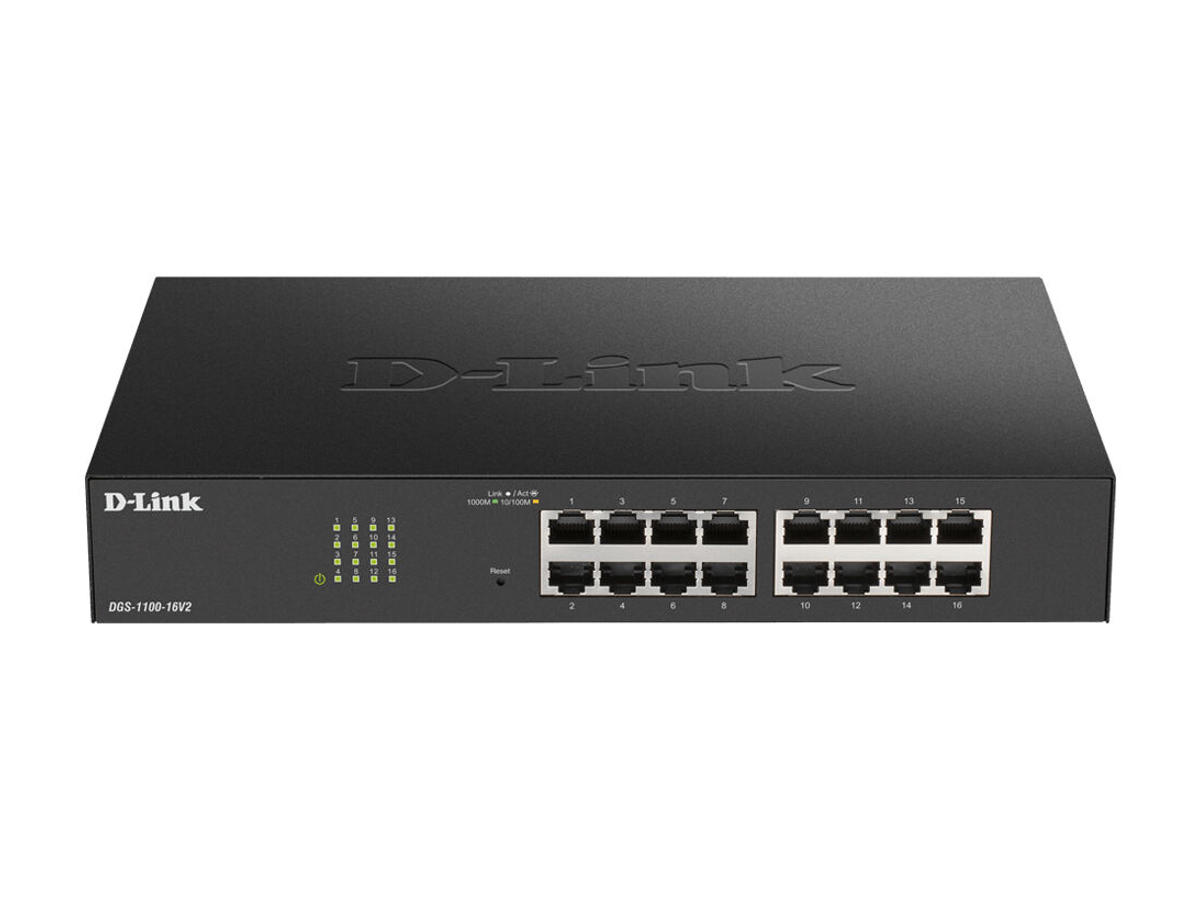

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Gigabit Ethernet Speeds
Take your Ethernet speeds to the next level with Gigabit Connectivity
Cutting Edge Green Technology
Innovative D-Link Green power saving features keep your budget in check
Manage Anywhere, Anytime
Remote setup & management is easy, and can be done from anywhere.
Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2 |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
System hændelseslog | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 16 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Netværk | |
Netværksstandarder | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 10BASE-TX, 1000BASE-T |
Port-spejlning | Ja |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Broadcast stormkontrol | Ja |
Begrænsning af hastighed | Ja |
Auto MDI/MDI-X | Ja |
Spanning tree protokol | Ja |
Head-of-line (HOL) blokering | Ja |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Auto-forhandling | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Port-based VLAN, Voice VLAN |
Antal VLAN'er | 128 |
Dataoverførsel | |
MAC adresselabel | 8000 entries |
Switch kapacitet | 32 Gbit/sek. |
Hastighed for videresendelse | 23,81 Mpps |
Opbevar-og-frem | Ja |
Antal køer | 4 |
Jumbo Frames support | Ja |
Jumbo rammer | 9216 |
Pakke bufferlager | 4,1 MB |
Sikkerhed | |
DHCP funktioner | DHCP client |
IGMP snooping | Ja |
Sikkerhedsalgoritmer | SNMP, SSL/TLS |
Algoritmer for køplanlægning | SPQ, Weighted Round Robin (WRR) |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
LED-indikatorer | Ja |
Certificering | EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC |
Præstation | |
Indbygget processer | Ja |
Processorfrekvens | 125 MHz |
Hukommelsestype | DRAM |
Flashhukommelse | 16 MB |
Ventilatorfri | Ja |
Gennemsnitstid mellem fejl (MTBF) | 710519 t |
Strømstyring | |
Vekselstrømsindgangsspænding | 100 - 240 V |
Strømforbrug (maks.) | 10,1 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | -5 - 50 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
Driftshøjde | 0 - 2000 m |
Varmeafgivelse | 34,46 BUT/t |
Vægt & størrelser | |
Bredde | 280 mm |
Dybde | 180 mm |
Højde | 44 mm |
Vægt | 1,27 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
