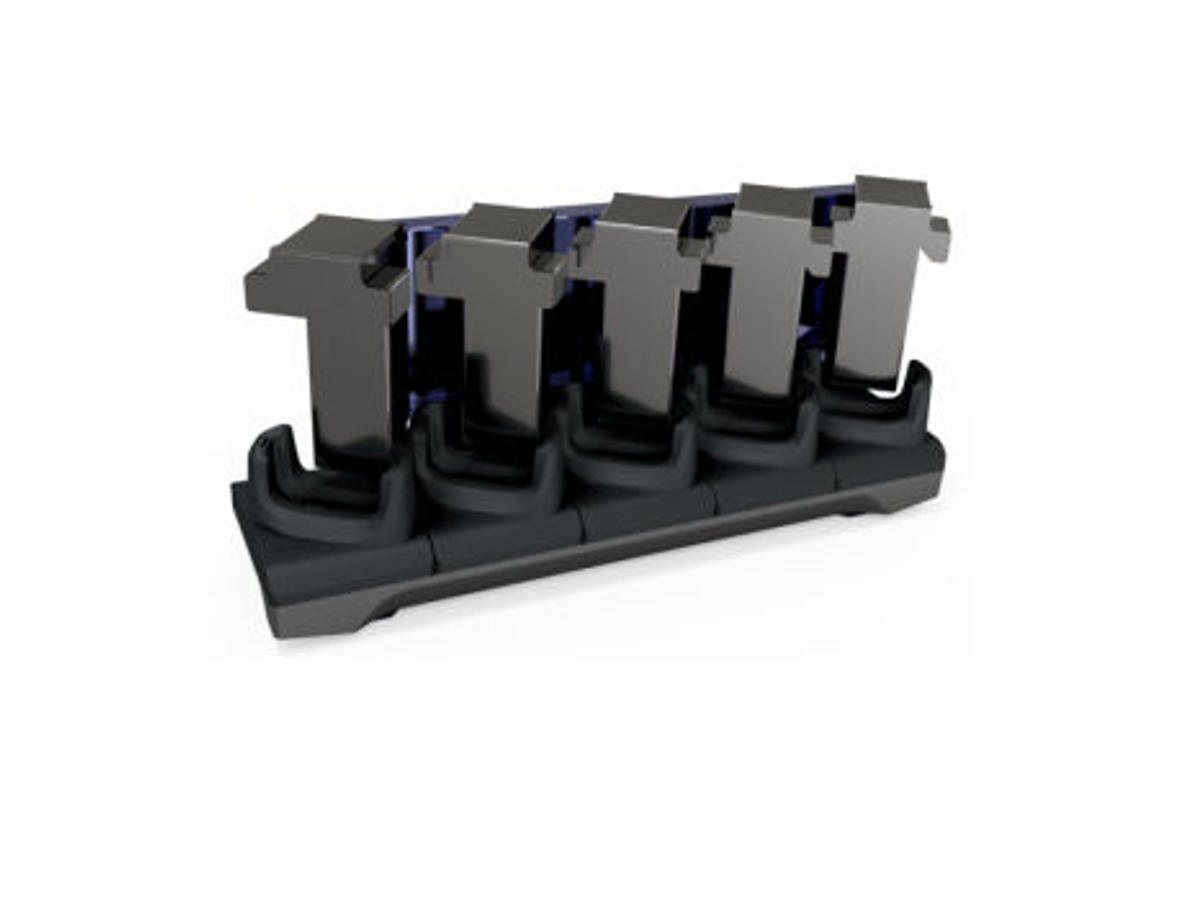

►Kit allows 5-Slot ShareCradles or 4-Slot + Spare Battery
"toaster" to be retrofitted with mechanical lock to prevent
unauthorized use/theft.
►User must authenticate on device (via PIN code or
barcode scan) before locking mechanism will release it.
►ShareCradle with Locking Kit can be installed inside
Intelligent Cabinet or can be placed on desk/counter.
Can't be installed on Storage Racks.
►Includes software app for device that enables the
locking mechanism.
►Typically used with Zebra Intelligent Cabinet solution
but can also be integrated with other applications using
SDK.
►Not compatible with Snap-On accessories attached
(e.g. MSR, Trigger Handle etc…)
►Lock taps into ShareCradle's power supply (PWRBGA12V108W0WW) using included pigtail cable.
►Device communicates with the cradle lock by sending a
series of light pulses at the top of its display. The
correct sequence of pulses locks or unlocks the
clamp/arm.
►Clamp/Arm operation details:
- Clamp is held in place by gravity so the user has
to physically raise the clamp to retrieve their device.
- Clamp will then drop back down past the point
where is would clamp a device. This lower position
tells the clamp not to re-engage the lock.
- The lock only re-engages when a device is present
in the cradle and the clamp descends to the
correct level.
