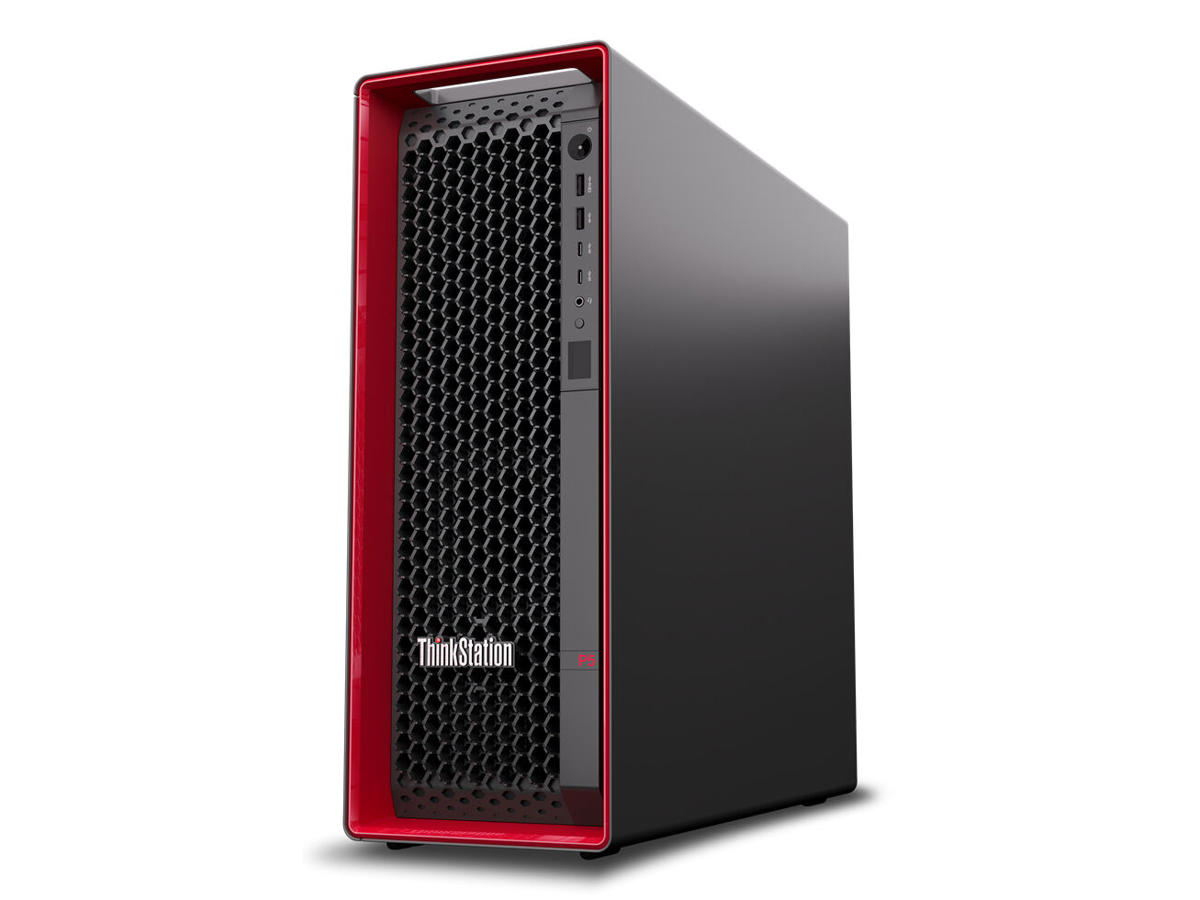

ThinkStation P5
Powered for modern businesses, the brand-new ThinkStation P5 features dependable power, performance and security at its best. The up to 1 Intel Xeon W-2400 series processor supports up to 24 cores and delivers top-notch productivity in any workspace. Its HD Realtek audio and 1.5W speaker
bring massive, detailed soundstage that takes online streaming and conferencing to the next level. Security features, including the Discrete TPM 2.0 chip, Kensington security slot and chassis intrusion switch provide end-to-end protection against device and data theft.
Whether working from remote job locations or a corporate space, the Intel Wi-Fi 6E feature enables consistent speed and strong bandwidth at all times. The front and rear connectivity ports, including USB-C 3.2 Gen 2 allow seamless data transfer and connectivity to monitors and peripherals.
With up to 512GB DDR5 memory support and up to 4TB storage, this workstation lets users multitask and switch between applications without having to worry about performance and speed.
It has up to 512 DDR5 GB memory, supports up NVIDIA RTX A6000 graphics, up to 1 Intel Xeon processor as well as up to 4TB SSD storage, which make it a powerful workstation that breezes through compute-intensive tasks or heavy-duty applications easily.
Processor | |
Processorserie | Intel® Xeon W |
Processorproducent | Intel |
Processormodel | w3-2435 |
Processorfrekvens | 3,1 GHz |
Processorkerner | 8 |
Processortråde | 16 |
Processor boost frekvens | 4,5 GHz |
Performance-kerner | 8 |
Effektive kerner | 0 |
Processor-cache | 22,5 MB |
Processor cache type | Smart cache |
Processor base power | 165 W |
Maksimal turbokraft | 198 W |
Hukommelse | |
Intern hukommelse | 32 GB |
Maksimal intern hukommelse | 512 GB |
Intern hukommelsestype | DDR5-SDRAM |
Hukommelseslayout (slots x størrelse) | 2 x 16 GB |
Hukommelsesstik | 8x DIMM |
Hukommelsesur hastighed | 4800 MHz |
Fejlkorrigerende kode | Ja |
Ikke-fejlkorrigerende kode | Ingen |
Hukommelseskanaler | Fire-kanals |
Overførselshastighed for hukommelsesdata | 4800 MT/s |
Lagring | |
Samlet lagringskapacitet | 1 TB |
Optisk drevtype | Ingen |
Lagermedie | SSD |
Antal installerede lagerdiske | 1 |
Samlet kapacitet for SSD'er | 1 TB |
Antal installerede SSD'er | 1 |
SDD-kapacitet | 1 TB |
SSD-grænsefladetype | PCI Express 4.0 |
NVMe | Ja |
SSD-formfaktor | M.2 |
M.2 SSD størrelse | 2280 (22 x 80 mm) |
Indbygget kortlæser | Ja |
Grafik | |
Diskret grafikadapter | Ingen |
On-board grafikkort | Ingen |
Diskret grafikadaptermodel | Ikke tilgængelig |
On-board grafikkort, model | Ikke tilgængelig |
Netværk | |
Ethernet LAN | Ja |
Wi-Fi | Ingen |
Ethernet LAN-datahastigheder | 100,1000 Mbit/s |
Kabelteknologi | 10/100/1000Base-T(X) |
LAN Kontroller | Intel® I219-LM |
Porte & Grænseflader | |
Antal USB 2.0-porte | 2 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 0 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 5 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 2 |
Antal Thunderbolt 3-porte | 0 |
Antal HDMI-porte | 0 |
Antal USB 3.2 Gen 2x2 type-C-porte | 1 |
Ethernet LAN-porte (RJ-45) | 1 |
Linie ud | Ja |
Line-in | Ja |
Kombineret hovedtelefon/mikrofon-port | Ja |
Antal USB-porte bag | 6 |
Antal USB-porte for | 4 |
Udvidelsessokler | |
PCI Express x4 (Gen 4.x)-stik | 3 |
PCI Express x8 (Gen 4.x) porte | 1 |
PCI Express x16 (Gen 5.x) slots | 2 |
Design | |
Kabinettype | Tower |
Produktfarve | Sort, Rød |
Volumen | 33 L |
Understøttet placering | Horisontal/vertikal |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Præstation | |
Produkttype | Workstation |
Bundkort chipsæt | Intel W790 |
Lydchip | Realtek ALC897-Q |
Lydsystem | High definition lyd |
Indbyggede højttaler(e) | Ja |
Antal højttalere | 1 |
Beskyttelse af adgangskode | Ja |
Adgangskodebeskyttelse type | BIOS, Strøm til, Tilsynsførende |
BIOS-type | UEFI |
Trusted Platform Module (TPM) | Ja |
Trusted Platform Module (TPM) version | 2.0 |
Software | |
Operativsystem installeret | Windows 11 Pro for Workstations |
Operativsystemets arkitektur | 64-bit |
Operativsystem sprog | Engelsk, Polsk |
Strømstyring | |
Strømforsyning | 1000 W |
80 PLUS certificering | 80 PLUS Platinum |
Driftsbetingelser | |
Driftstemperatur (T-T) | 10 - 35 °C |
Opbevaringstemperatur (T-T) | -40 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Driftshøjde | 0 - 3048 m |
Ikke-drift højde | 0 - 12192 m |
Godkendelser | |
Compliance-certifikater | RoHS |
Bæredygtighed | |
Bæredygtighedscertifikater | TCO, ENERGY STAR, EPEAT Gold |
Vægt & størrelser | |
Bredde | 165 mm |
Dybde | 453,9 mm |
Højde | 446 mm |
Vægt | 19 kg |
Emballage indhold | |
Skærm inkluderet | Ingen |
Mus inkluderet | Ja |
Tilslutning til mus | Ledningsført |
Tastatur inkluderet | Ja |
Tilslutning til tastatur | Ledningsført |
