Compact yet full of possibilities

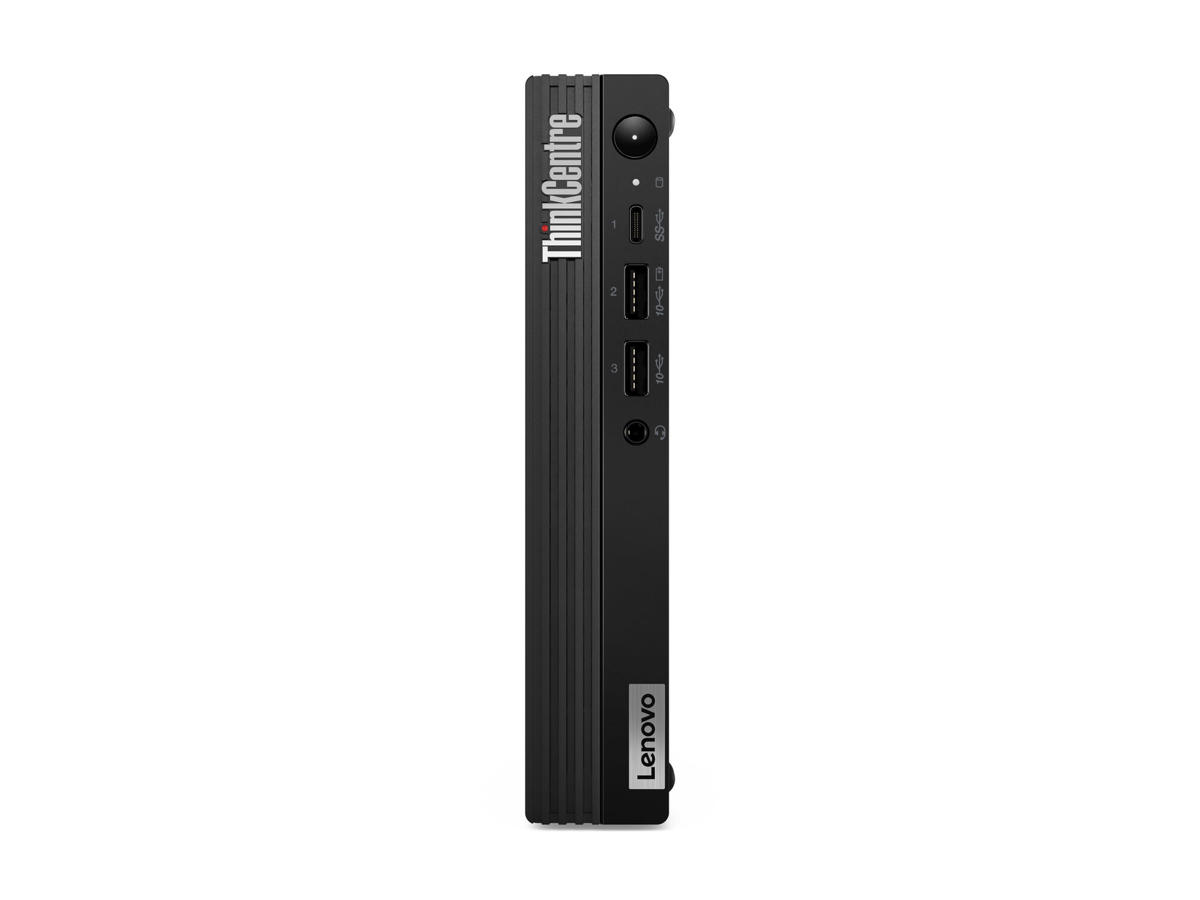

The ThinkCentre M70q Gen 3 Tiny (Intel) is full of enterprise-grade level power, speed, and potential. Thanks to Intel® vPro® with 12th Gen Intel® Core™ processors, this compact PC gives you high performance in the smallest of workspaces. It comes with various storage options and dual rear expansion slots to extend your port options.
Safeguard your data, ideas, & business
Every ThinkCentre has the added protection of ThinkShield—Lenovo’s comprehensive, end-to-end security solution, combining industry-leading hardware, software, and services. The ThinkCentre M70q Gen 3 Tiny also has customizable security features, including BIOS-based Smart USB Protection, a secure hardware-based crypto-processor, and a cable lock slot to help thwart theft.
Easy to deploy, upgrade, & manage
A breeze to set up and run, this desktop PC has built-in drivers to support various operating systems. As your business needs grow, the storage and memory can be expanded easily without using a screwdriver. It also has a host of ports and connectivity options, enabling you to connect all manner of devices, from industry-specific equipment to legacy peripherals.
Totally versatile, totally practical
With its sleek form, the ThinkCentre M70q Gen 3 Tiny is ideal for any modern workspace. whether it's in an office, healthcare, or retail environment. It can also live anywhere—on a desk or ThinkCentre Vertical Stand, up on a wall, or bundled with a Tiny-in-One (TIO). You can also connect up to four monitors and turn on the PC with a simple keyboard shortcut.
Durability & reliability you can trust
The ThinkCentre M70q Gen 3 Tiny is tested against the US Department of Defense's MIL-STD 810H standards, including more than 200 quality checks to ensure it can run in extreme conditions. This includes harsh environments like the Arctic wilderness and desert dust storms, plus stringent tests for temperature, pressure, humidity, vibration, and more.
Sustainable engineering at its best
The ThinkCentre M70q Gen 3 Tiny meets various global standards for energy-efficiency, health & safety, and sustainability. This includes ENERGY STAR® 8.0, EPEAT® Gold, and is low-noise certified by TÜV Rheinland. It also has the option of a ThinkCentre Tiny Dust Shield, an easy to remove, wash, and replace nylon mesh sheet to stop dust and dirt from getting inside your PC.
Processor | |
Processorserie | Intel® Core™ i5 |
Processorproducent | Intel |
Processormodel | i5-12400T |
Processorgeneration | 12th gen Intel® Core™ i5 |
Processorkerner | 6 |
Processortråde | 12 |
Processor boost frekvens | 4,2 GHz |
Performance-kerner | 6 |
Effektive kerner | 0 |
Ydelseskerne maksimal turbofrekvens | 4,2 GHz |
Basisfrekvens af performancekerne | 1,8 GHz |
Processor-cache | 18 MB |
Processor cache type | Smart cache |
Processor base power | 35 W |
Maksimal turbokraft | 74 W |
Hukommelse | |
Intern hukommelse | 16 GB |
Maksimal intern hukommelse | 64 GB |
Intern hukommelsestype | DDR4-SDRAM |
Hukommelseslayout (slots x størrelse) | 1 x 16 GB |
Hukommelsesstik | 2x SO-DIMM |
Hukommelsesur hastighed | 3200 MHz |
Hukommelseskanaler | To-kanals |
Lagring | |
Samlet lagringskapacitet | 512 GB |
Optisk drevtype | Ingen |
Lagermedie | SSD |
Antal installerede lagerdiske | 1 |
Samlet kapacitet for SSD'er | 512 GB |
Antal installerede SSD'er | 1 |
SDD-kapacitet | 512 GB |
SSD-grænsefladetype | PCI Express 4.0 |
NVMe | Ja |
SSD-formfaktor | M.2 |
Indbygget kortlæser | Ingen |
Grafik | |
Diskret grafikadapter | Ingen |
On-board grafikkort | Ja |
Diskret grafikadaptermodel | Ikke tilgængelig |
On-board grafikkort, model | Intel UHD Graphics 730 |
4 | Intel |
Indbygget grafikadapterfamilie | Intel® UHD Graphics |
Netværk | |
Ethernet LAN | Ja |
Wi-Fi | Ja |
Ethernet LAN-datahastigheder | 100,1000 Mbit/s |
Kabelteknologi | 10/100/1000Base-T(X) |
LAN Kontroller | Intel® I219-LM |
Bedste Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi-standarder | Wi-Fi 6 (802.11ax) |
Producent af WLAN-controller | Intel |
WLAN-controller model | Intel Wi-Fi 6 AX201 |
Antenne type | 2x2 |
Bluetooth | Ja |
Bluetooth-version | 5.1 |
Wake-on-LAN klar | Ja |
Porte & Grænseflader | |
Antal USB 2.0-porte | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 1 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 4 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 0 |
Antal Thunderbolt 3-porte | 0 |
Antal HDMI-porte | 1 |
HDMI-version | 2.1 |
Antal DisplayPorts | 2 |
Ethernet LAN-porte (RJ-45) | 1 |
Kombineret hovedtelefon/mikrofon-port | Ja |
Design | |
Kabinettype | Mini PC |
Produktfarve | Sort |
Farvenavn | Raven black |
Volumen | 1 L |
Understøttet placering | Horisontal/vertikal |
VESA montering | Ja |
Antal 2.5" bays | 1 |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Visningsvindue | Ingen |
Præstation | |
Produkttype | Mini PC |
Bundkort chipsæt | Intel Q670 |
Lydchip | Realtek ALC256-VB |
Lydsystem | High definition lyd |
Indbyggede højttaler(e) | Ja |
Antal højttalere | 1 |
Beskyttelse af adgangskode | Ja |
Adgangskodebeskyttelse type | HDD, Strøm til, Tilsynsførende |
Trusted Platform Module (TPM) | Ja |
Software | |
Operativsystem installeret | Windows 11 Pro |
Operativsystemets arkitektur | 64-bit |
Operativsystem sprog | Tysk |
Strømstyring | |
Strømforsyning | 90 W |
Strømforsyning indgangsspænding | 100 - 240 V |
Strømforsyningens indgangsfrekvens | 50/60 Hz |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 35 °C |
Opbevaringstemperatur (T-T) | -40 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Driftshøjde | 0 - 3048 m |
Ikke-drift højde | 0 - 12192 m |
Godkendelser | |
Compliance-certifikater | RoHS |
Certificering | ErP Lot 3, MIL-STD-810H |
Bæredygtighed | |
Bæredygtighedscertifikater | ENERGY STAR, TCO |
Vægt & størrelser | |
Bredde | 179 mm |
Dybde | 182,9 mm |
Højde | 36,5 mm |
Vægt | 1,25 kg |
Pakkebredde | 490 mm |
Pakkedybde | 268 mm |
Pakkehøjde | 141 mm |
Pakkevægt | 2,85 kg |
Emballage indhold | |
Mus inkluderet | Ja |
Tastatur inkluderet | Ja |
Display | |
Skærm inkluderet | Ingen |
