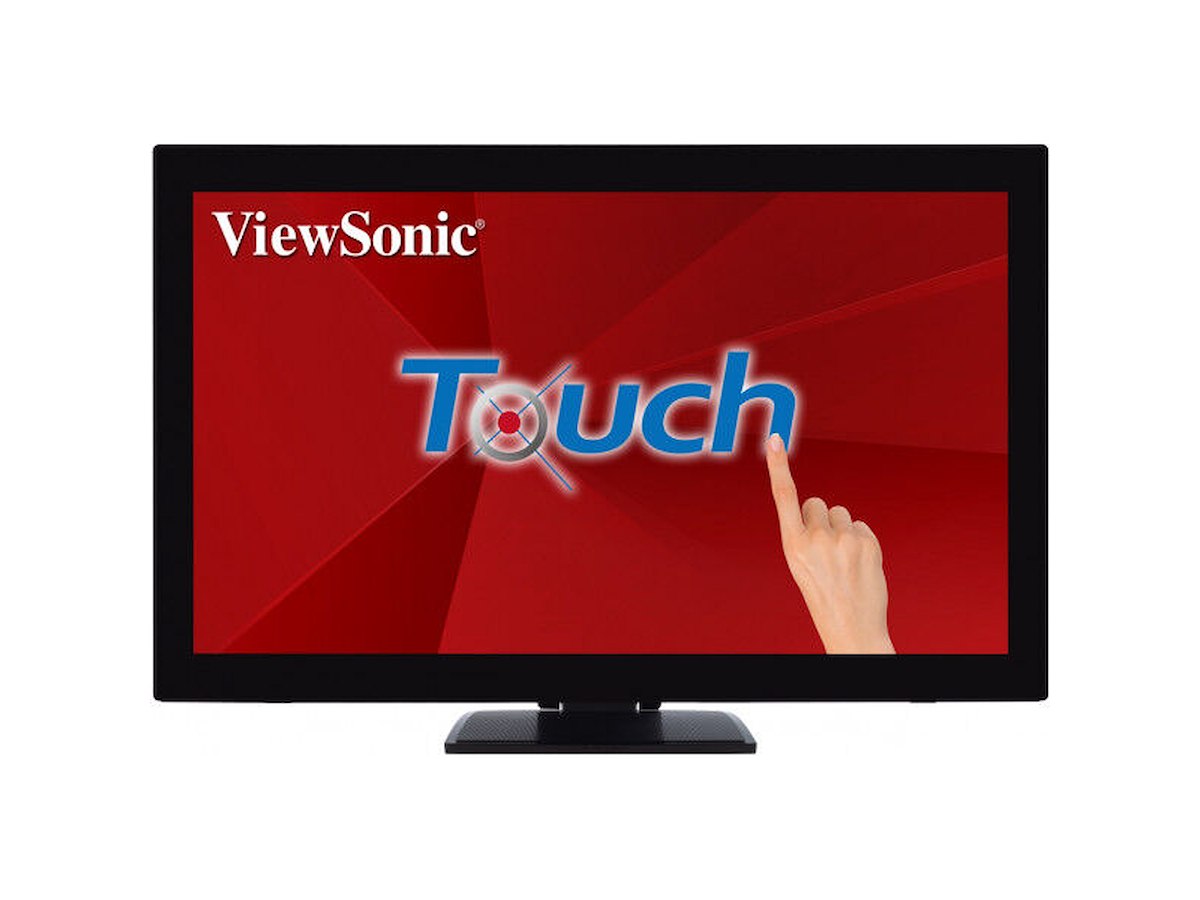

The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.
10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.
Display | |
Skærm diagonal | 68,6 cm (27") |
Skærmopløsning | 1920 x 1080 pixel |
Naturligt aspektforhold | 16:9 |
Skærmteknologi | LED |
Berøringsskærm | Ja |
HD-type | Fuld HD |
Paneltype | VA |
Responstid | 6 ms |
Skærm form | Flad |
Kontrastforhold (typisk) | 3000:1 |
Vis antal farver | 16,78 millioner farver |
LED-baggrundsbelysning | Ja |
Type af baggrundslys | LED |
Berøringsskærmstype | Multibruger |
Berøringsskærm teknologi | Projekteret kapacitivt systemet |
Berøringsteknologi | Multi-touch |
Antal simultane touchpunkter | 10 |
Skærmens lysstyrke | 300 cd/m² |
Antirefleksskærm | Ja |
Billedformat | 16:9 |
Kontrastforhold (dynamisk) | 50000000:1 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Pixel pitch | 0,311 x 0,311 mm |
Horisontal scanningsområde | 15 - 90 kHz |
Vertikalt scanningsområde | 50 - 76 Hz |
Synlig størrelse, horisontal | 59,8 cm |
Synlig størrelse, vertikal | 33,6 cm |
Skærm diagonal (metrisk) | 68,58 cm |
Overfladehårdhed | 6H |
Separat H/V-synkronisering | Ja |
Præstation | |
NVIDIA G-SYNC | Ingen |
AMD FreeSync | Ingen |
Multimedie | |
Indbyggede højttaler(e) | Ja |
Indbygget kamera | Ingen |
Antal højttalere | 2 |
Udgangseffekt (RMS) | 4 W |
Indbygget mikrofon | Ingen |
Design | |
Produktfarve | Sort |
Glas tykkelse | 1,88 mm |
Porte & Grænseflader | |
Indbygget USB-hub | Ja |
HDMI | Ja |
USB-hub-version | 3.2 Gen 1 (3.1 Gen 1) |
USB upstream port type | USB Type-B |
Antal upstream-porte | 1 |
Antal USB Type-B opstrømsporte | 1 |
Antal USB type-A downstream-porte | 2 |
Antal VGA-porte (D-sub) | 1 |
Antal HDMI-porte | 1 |
HDMI-version | 1.4 |
Antal DisplayPorts | 1 |
DisplayPort-version | 1.2 |
Lydindgang | 1 |
Lydudgang | 1 |
HDCP | Ja |
RS-232-porte | 1 |
Ergonomisk | |
VESA montering | Ja |
Slot til kabellås | Ja |
Panel montering grænseflade | 100 x 100 mm |
Kan monteres på væggen | Ja |
Kabellåseslids type | Kensington |
Hældningsindstilling | Ja |
Hældningsvinkelområde | -4 - 90° |
Skærmvisning (OSD) | Ja |
Antal OSD sprog | 14 |
Strømstyring | |
Energieffektivitetsklasse (SDR) | F |
Energiforbrug (SDR) pr. 1000 timer | 19 kWh |
Strømforbrug (typisk) | 26 W |
Strømforbrug (standby) | 0,3 W |
Strømforbrug (slukket) | 0,3 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Strømforsyningstype | Vekselstrøm |
Kode for europæisk produktregister for energimærkning (EPREL) | 384384 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 90% |
Vægt & størrelser | |
Bredde (med stativ) | 660 mm |
Dybde (med stativ) | 239 mm |
Højde (med stativ) | 443 mm |
Vægt (med stativ) | 7,9 kg |
Bredde (uden stativ) | 660 mm |
Dybde (uden stativ) | 58 mm |
Højde (uden stativ) | 410 mm |
Vægt (uden stativ) | 5,5 kg |
Emballeringsdata | |
Pakkebredde | 753 mm |
Pakkedybde | 204 mm |
Pakkehøjde | 525 mm |
Pakkevægt | 10,2 kg |
Emballage indhold | |
Hurtig start guide | Ja |
Andre funktioner | |
Tilslutning til pc | Ja |
Tilbehør inkluderet | Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable |
Gennemsnitstid mellem fejl (MTBF) | 30000 t |
Certificering | MX-CoC, Mexico Energy, CE, CE EMC, CB |
Logistik data | |
Harmoniseret systemkode (HS) | 85285210 |
