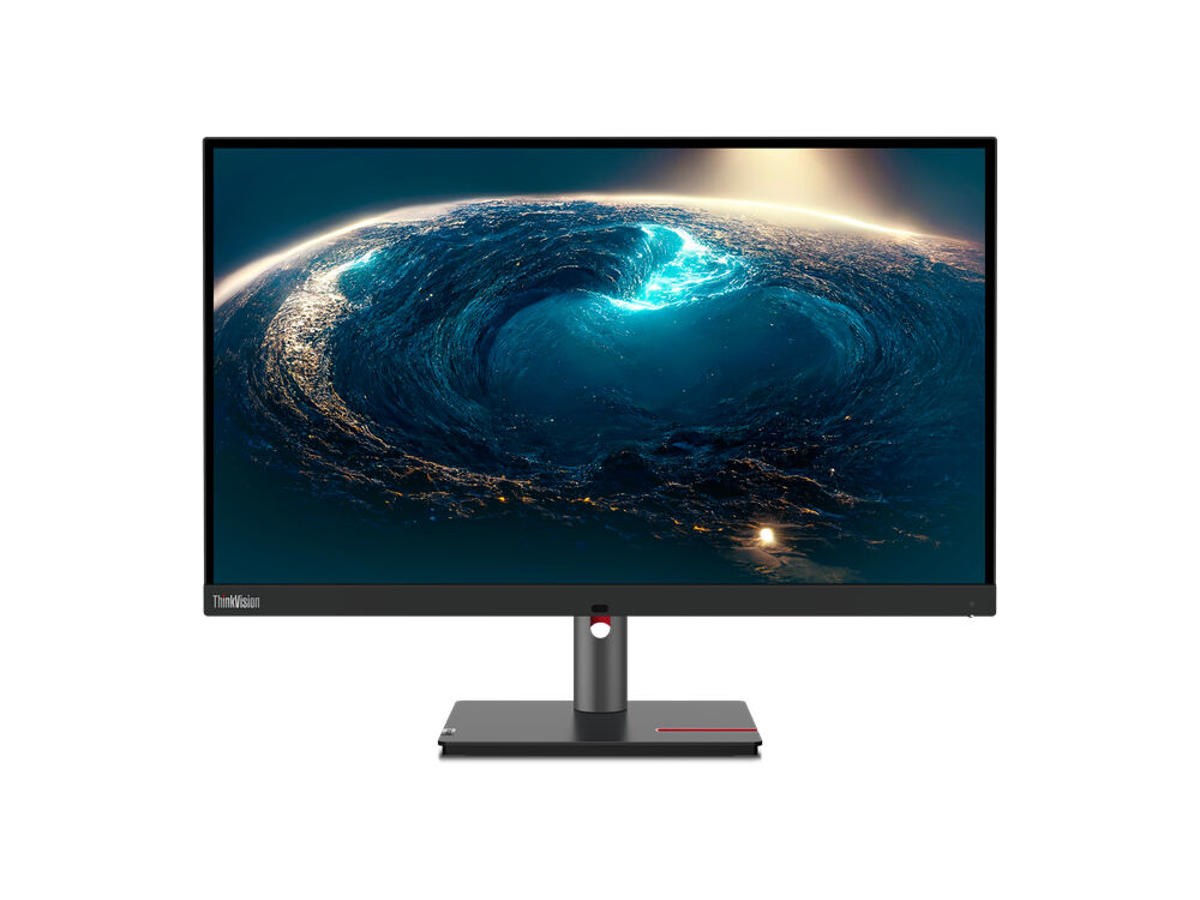

A go-to for graphic design and video creation, the ThinkVision P32pz-30 is the world’s 1st USB4 31.5-inch Mini-LED docking monitor.
It gives you the capability of one cable docking, along with up to 140W1 charging for the connected computer.
You can view multiple projects side-by-side as the 31.5-inch, 3-side NearEdgeless In-Plane Switching screen gives you ample space.
Its 3840 x 2160 resolution and quantum dot technology give you truly life-like visuals!
With excellent color space coverage (99% Adobe RGB, 99% DCI-P3) and color accuracy (Avg. Delta E<1.5), the monitor makes the perfect display for any sort of color grading or content creation work.
Thanks to its VESA certified HDR 1000 imaging technology, mastering HDR content has never been a more pleasing experience.
Its 1152 zones in the Mini-LED backlight displays outstanding brightness and darkness and helps minimize the halo effect so that you get to enjoy the best HDR viewing and editing experience.
Connecting your monitor to your computers, speakers, the internet, and to an additional monitor is now a breeze, thanks to the plethora of I/O ports - 2 x HDMI 2.1, 1 x DP 1.4, USB4, DP 1.4 Out, Ethernet, and Audio Out.
The availability of a KVM switch, an ethernet port, Picture-In-Picture and Picture-By-Picture support, and multiple inputs let you multitask and switch seamlessly between two PCs.
Additionally, you can also now connect your storage devices and additional peripherals directly to the monitor, thanks to the USB 3.2 Gen 22 hub that gives a high-speed connection.
Getting to a comfortable position is easy with the ergonomic stand and its wide range of adjustments.
Its compatibility with the ThinkVision VoIP Stack3: MC60 Monitor Webcam and MS30 Monitor Soundbar allow you to enjoy enhanced audio and video quality if required.
The ThinkVision P32pz-30 Mini-LED Monitor is environmentally friendly too since it’s made with recycled metal4 and comes in bio-based4, plastic-free packaging.
Display | |
Skærm diagonal | 80 cm (31.5") |
Skærmopløsning | 3840 x 2160 pixel |
Naturligt aspektforhold | 16:9 |
Skærmteknologi | LCD |
Berøringsskærm | Ingen |
HD-type | 4K Ultra HD |
Paneltype | IPS |
Responstid | 6 ms |
Skærm form | Flad |
Kontrastforhold (typisk) | 1000:1 |
Maksimal opdateringshastighed | 60 Hz |
Vis antal farver | 1,07 milliarder farver |
Type af baggrundslys | Mini-LED |
Skærmens lysstyrke (spidsbelastning) | 1200 cd/m² |
Skærmens lysstyrke (typisk) | 650 cd/m² |
Antirefleksskærm | Ja |
Kontrastforhold (dynamisk) | 3000000:1 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Pixel pitch | 0,182 x 0,182 mm |
Pixeltæthed | 140 ppi |
Synlig størrelse, horisontal | 69,7 cm |
Synlig størrelse, vertikal | 39,2 cm |
HDR-teknologi (High Dynamic Range) | DisplayHDR 1000, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Farvedybde | 10 Bit |
sRGB-dækning (typisk) | 100% |
Adobe RGB dækning | 99% |
BT.2020 dækning | 81% |
Responstid (ekstrem) | 4 ms |
Farveskala DCI-P3 | 98% |
Fabrikskalibreret | Ja |
Præstation | |
NVIDIA G-SYNC | Ingen |
AMD FreeSync | Ingen |
Understøttede Windows-operativsystemer | Windows 10, Windows 11 |
Multimedie | |
Indbyggede højttaler(e) | Ingen |
Indbygget kamera | Ingen |
Design | |
Produktfarve | Sort |
Farvenavn | Raven Black |
Frontkantfarve | Sort |
Farve | Sort |
Porte & Grænseflader | |
Indbygget USB-hub | Ja |
HDMI | Ja |
Udgang til hovedtelefoner | Ingen |
USB upstream port type | USB Type-C |
Antal upstream-porte | 2 |
Antal USB type-A downstream-porte | 4 |
Antal USB type-C downstream-porte | 1 |
USB type-C DisplayPort alternativ tilstand | Ja |
Antal HDMI-porte | 2 |
HDMI-version | 2.1 |
Antal DisplayPorts | 2 |
DisplayPort-version | 1.4 |
Lydudgang | Ja |
Indbygget KVM switch | Ja |
Netværk | |
Ethernet LAN | Ja |
Ergonomisk | |
VESA montering | Ja |
Slot til kabellås | Ja |
Højdejustering | Ja, 15,5 cm |
Panel montering grænseflade | 100 x 100 mm |
Forbedret kabelstyring | Ja |
Kabellåseslids type | Kensington |
Akse | Ja |
Pivot vinkel | -90 - 90° |
Drejelig | Ja |
Drejevinkel område | -45 - 45° |
Hældningsvinkelområde | -5 - 23,5° |
Billede-i-billede | Ja |
Strømstyring | |
Strømforbrug (typisk) | 32 W |
Strømforbrug (standby) | 0,5 W |
Strømforbrug (maks.) | 305 W |
Strømforbrug (slukket) | 0,3 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Vægt & størrelser | |
Bredde (med stativ) | 714,2 mm |
Dybde (med stativ) | 234,9 mm |
Højde (med stativ) | 456,6 mm |
Vægt (med stativ) | 10,5 kg |
Bredde (uden stativ) | 714,2 mm |
Dybde (uden stativ) | 78,9 mm |
Højde (uden stativ) | 430,9 mm |
Vægt (uden stativ) | 7,6 kg |
Facet bredde (side) | 2 mm |
Facet bredde (øverste) | 2 mm |
Facet bredde (bund) | 2,9 cm |
Emballeringsdata | |
Pakkebredde | 908 mm |
Pakkedybde | 163 mm |
Pakkehøjde | 518 mm |
Pakkevægt | 14,6 kg |
Emballage indhold | |
Stativ inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, DisplayPort, HDMI, USB Type-C til USB Type-A |
Hurtig start guide | Ja |
DisplayPort kabellængde | 1,8 m |
HDMI-kabellængde | 1,8 m |
Strømkabellængde | 1,8 m |
Bæredygtighed | |
Bæredygtighedscertifikater | ENERGY STAR, EPEAT Gold |
Andre funktioner | |
Lokale dæmpningszoner | 1152 |
Billede-for-billede (PbP) | Ja |
Compliance-certifikater | RoHS |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Ethernet LAN-porte (RJ-45) | 1 |
Certificering | EU Energy Label (G-class) Volatile Organic Compound Certification TÜV Rheinland® Eye Comfort Certification TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light |
