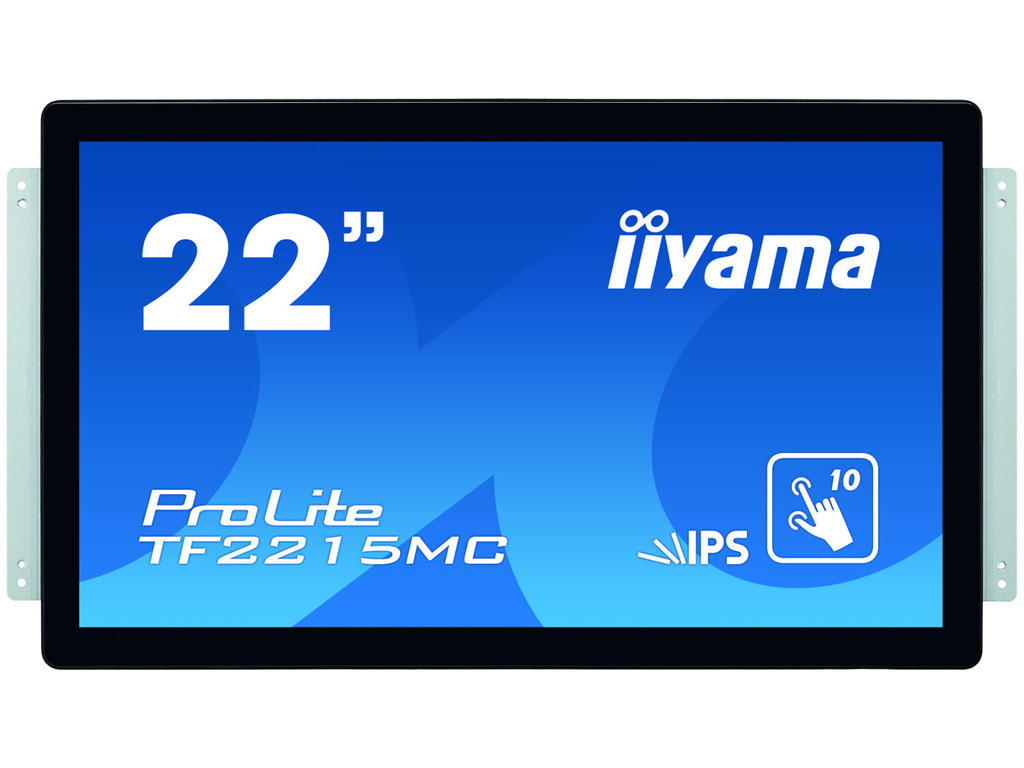

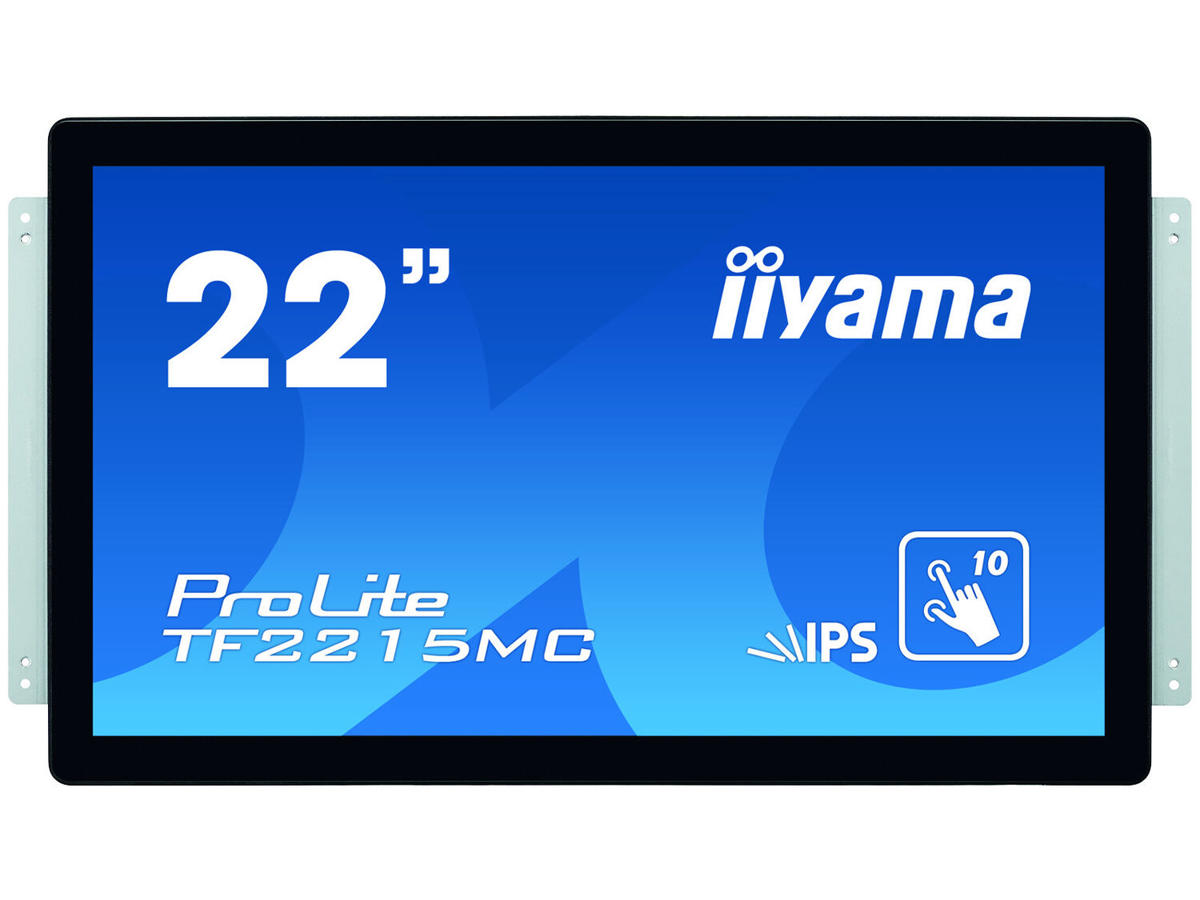

The ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
Display | |
Skærm diagonal | 54,6 cm (21.5") |
Skærmopløsning | 1920 x 1080 pixel |
Naturligt aspektforhold | 16:9 |
Skærmteknologi | LED |
Berøringsskærm | Ja |
HD-type | Fuld HD |
Paneltype | IPS |
Responstid | 14 ms |
Skærm form | Flad |
Kontrastforhold (typisk) | 1000:1 |
Vis antal farver | 16,78 millioner farver |
Berøringsskærmstype | Multibruger |
Berøringsskærm teknologi | Projekteret kapacitivt systemet |
Berøringsteknologi | Multi-touch |
Antal simultane touchpunkter | 10 |
Skærmens lysstyrke | 315 cd/m² |
Billedformat | 16:9 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Pixel pitch | 0,24795 x 0,24795 mm |
Horisontal scanningsområde | 31,4 - 82 kHz |
Vertikalt scanningsområde | 56 - 75 Hz |
Skærm diagonal (metrisk) | 54,6 cm |
Separat H/V-synkronisering | Ja |
Præstation | |
NVIDIA G-SYNC | Ingen |
AMD FreeSync | Ingen |
OmniTapps Multitouch-kompabilitet | Ingen |
Multimedie | |
Indbygget kamera | Ingen |
Indbygget mikrofon | Ingen |
Design | |
Produktfarve | Sort |
Porte & Grænseflader | |
HDMI | Ja |
USB-berøringsporte | Ja |
Antal VGA-porte (D-sub) | 1 |
Antal HDMI-porte | 1 |
Antal DisplayPorts | 1 |
Udgange til hovedtelefoner | 1 |
HDCP | Ja |
Ergonomisk | |
VESA montering | Ja |
Panel montering grænseflade | 100 x 100 mm |
Kan monteres på væggen | Ja |
OSD-sprog | Tysk, Engelsk, Spansk, Fransk, Italiensk, Japansk |
Antal OSD sprog | 6 |
Plug and play | Ja |
Strømstyring | |
Energieffektivitetsklasse (SDR) | F |
Energiforbrug (SDR) pr. 1000 timer | 19 kWh |
Strømforbrug (typisk) | 19 W |
Strømforbrug (standby) | 1,2 W |
Strømforbrug (slukket) | 1,2 W |
Strømforsyningstype | DC |
Energieffektivitetsskala | A til G |
Kode for europæisk produktregister for energimærkning (EPREL) | 378611 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Vægt & størrelser | |
Bredde (uden stativ) | 520 mm |
Dybde (uden stativ) | 42,5 mm |
Højde (uden stativ) | 315 mm |
Vægt (uden stativ) | 4,4 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm, DisplayPort, HDMI, USB |
Hurtig start guide | Ja |
Andre funktioner | |
Kode for international beskyttelse (IP) | IP65 |
AC-adapter inkluderet | Ja |
Vis synligt område (HxL) | 476,064 x 267,786 mm |
Understøttet placering | Horisontal/vertikal |
Full HD | Ja |
Certificering | CB, CE, TÜV-Bauart, CU, cULus, REACH |
Logistik data | |
Harmoniseret systemkode (HS) | 85285210 |
