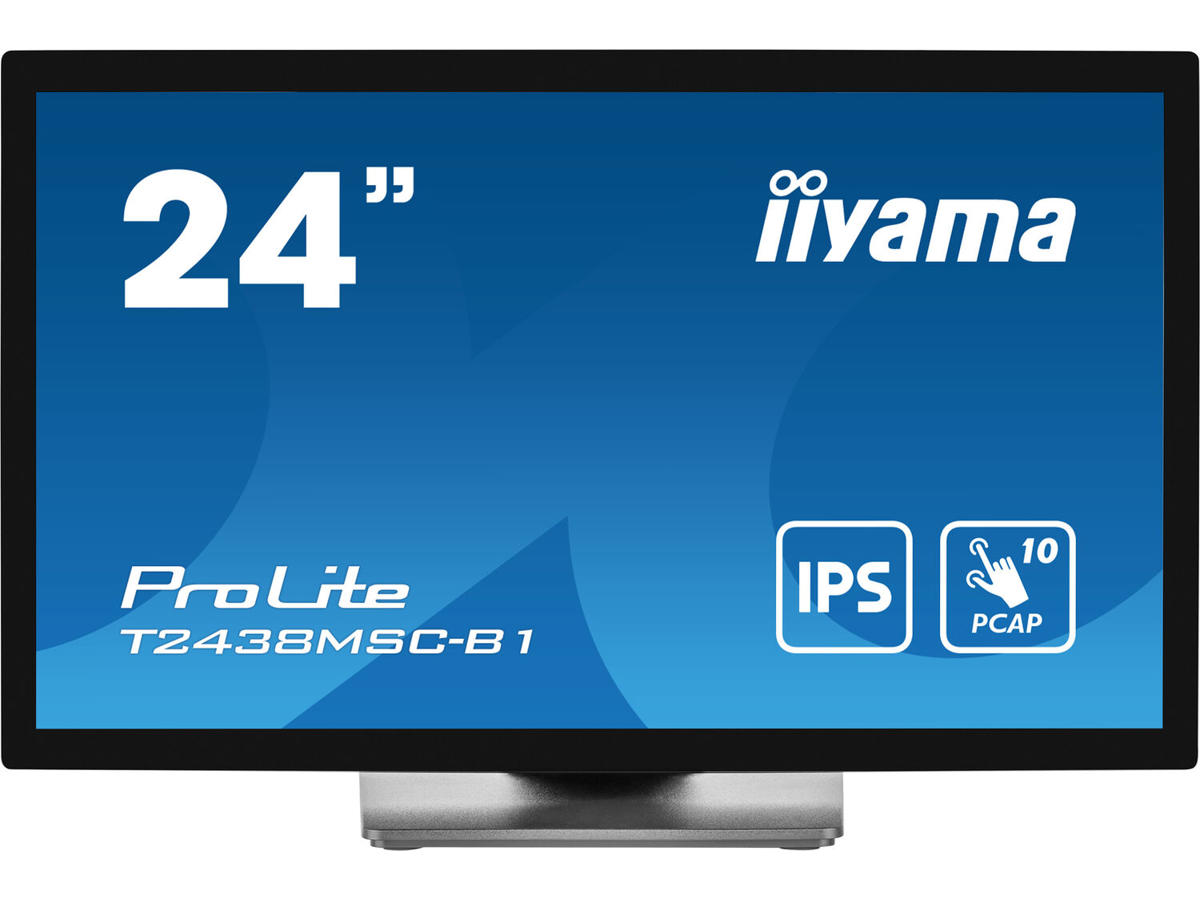

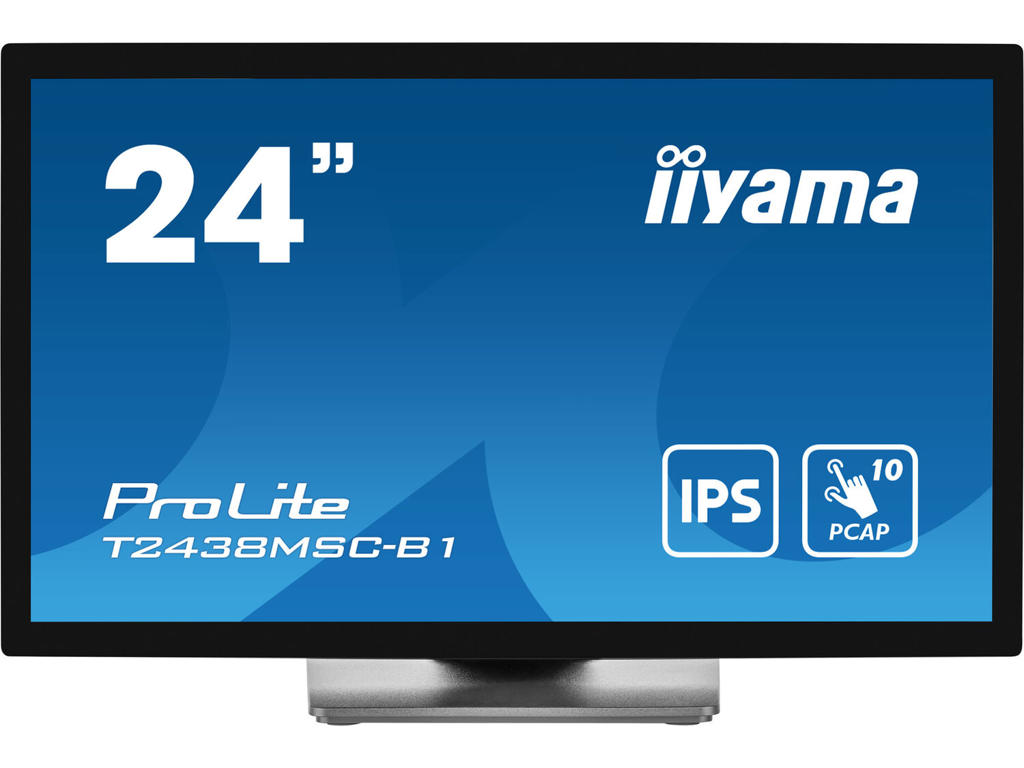

23.8” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
The Full HD (1920x1080) monitor ProLite T2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water.

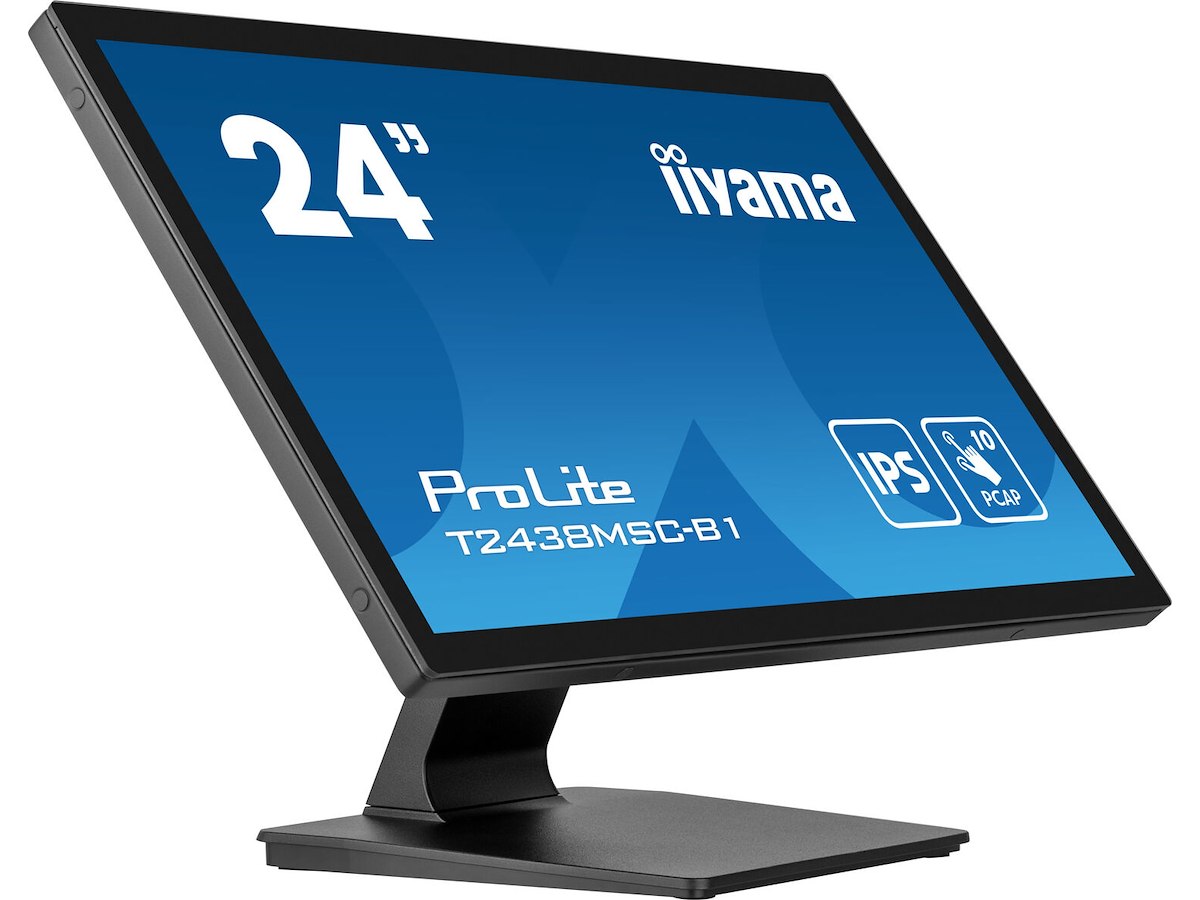

The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
Display | |
Skærm diagonal | 60,5 cm (23.8") |
Skærmopløsning | 1920 x 1080 pixel |
Naturligt aspektforhold | 16:9 |
Skærmteknologi | LED |
Berøringsskærm | Ja |
HD-type | Fuld HD |
Paneltype | IPS |
Skærm form | Flad |
Kontrastforhold (typisk) | 1000:1 |
Vis antal farver | 16.7 millioner farver |
Berøringsskærm teknologi | Projekteret kapacitivt systemet |
Berøringsteknologi | Multi-touch |
Antal simultane touchpunkter | 10 |
Skærmens lysstyrke (spidsbelastning) | 600 cd/m² |
Skærmens lysstyrke (typisk) | 525 cd/m² |
Billedformat | 16:9 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Responstid (hurtig) | 5 ms |
Pixel pitch | 0,275 x 0,275 mm |
Horisontal scanningsområde | 30 - 83 kHz |
Skærm diagonal (metrisk) | 60,5 cm |
Overfladehårdhed | 7H |
Præstation | |
NVIDIA G-SYNC | Ingen |
AMD FreeSync | Ingen |
Multimedie | |
Indbyggede højttaler(e) | Ja |
Indbygget kamera | Ingen |
Antal højttalere | 2 |
Udgangseffekt (RMS) | 2 W |
Design | |
Produktfarve | Sort |
Glas tykkelse | 3,6 mm |
Porte & Grænseflader | |
Indbygget USB-hub | Ja |
HDMI | Ja |
Udgang til hovedtelefoner | Ingen |
USB-hub-version | 3.2 Gen 1 (3.1 Gen 1) |
Antal USB type-A downstream-porte | 2 |
Antal HDMI-porte | 1 |
Antal DisplayPorts | 1 |
HDCP | Ja |
Ergonomisk | |
VESA montering | Ja |
Panel montering grænseflade | 100 x 100 mm |
Skærmvisning (OSD) | Ja |
OSD-sprog | Tysk, Engelsk, Fransk, Japansk, Polsk, Russisk |
Plug and play | Ja |
Strømstyring | |
Energieffektivitetsklasse (SDR) | E |
Energieffektivitetsklasse (HDR) | Ikke tilgængelig |
Strømforbrug (typisk) | 22 W |
Strømforbrug (standby) | 1,5 W |
Strømforbrug (slukket) | 0,3 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Kode for europæisk produktregister for energimærkning (EPREL) | 1530357 |
Vægt & størrelser | |
Bredde (med stativ) | 561,5 mm |
Dybde (med stativ) | 239,5 mm |
Højde (med stativ) | 366 mm |
Vægt (med stativ) | 8,2 kg |
Facet bredde (side) | 1,73 cm |
Facet bredde (øverste) | 2,03 cm |
Facet bredde (bund) | 2,03 cm |
Emballeringsdata | |
Pakkebredde | 650 mm |
Pakkedybde | 155 mm |
Pakkehøjde | 430 mm |
Pakkevægt | 10 kg |
Emballage indhold | |
Kabler inkluderet | HDMI, Strøm, USB |
Hurtig start guide | Ja |
Andre funktioner | |
Kode for international beskyttelse (IP) | IP1X |
Certificering | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
