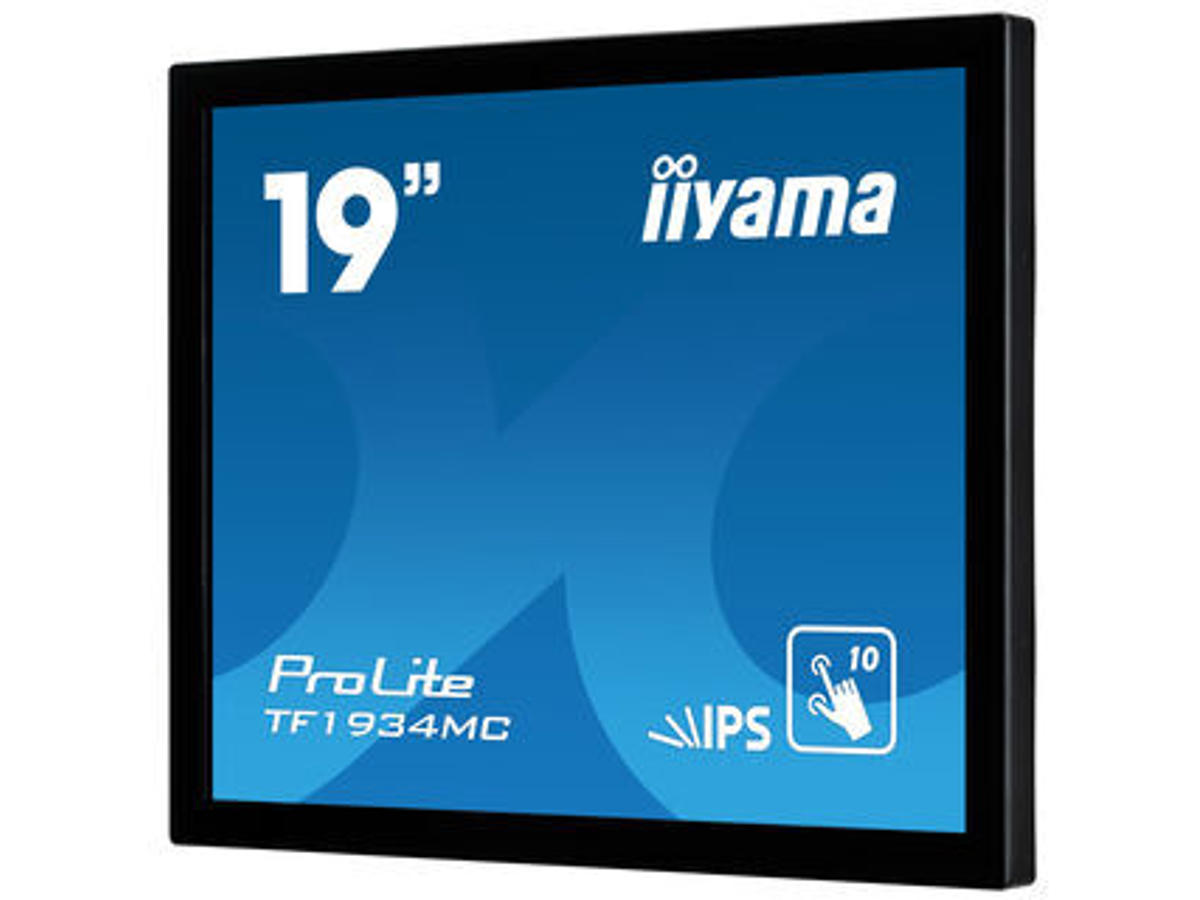

10pt touch Open Frame monitor with IPS panel and touch through glass function
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
Display | |
Skærm diagonal | 48,3 cm (19") |
Skærmopløsning | 1280 x 1024 pixel |
Naturligt aspektforhold | 5:4 |
Skærmteknologi | LED |
Berøringsskærm | Ja |
HD-type | SXGA |
Paneltype | IPS |
Skærm form | Flad |
Vis antal farver | 16,78 millioner farver |
Type af baggrundslys | LED |
Berøringsskærm teknologi | Projekteret kapacitivt systemet |
Berøringsteknologi | Multi-touch |
Responstid | 14 ms |
Understøttede grafikopløsninger | 1280 x 1024 (SXGA) |
Billedformat | 5:4 |
Kontrastforhold (dynamisk) | 1000:1 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Pixel pitch | 0,294 x 0,294 mm |
Horisontal scanningsområde | 31,4 - 80 kHz |
Synlig størrelse, horisontal | 30,1 cm |
Synlig størrelse, vertikal | 37,6 cm |
Synlig størrelse, diagonal | 48 cm |
Skærm diagonal (metrisk) | 48 cm |
Skærmens lysstyrke | 350 cd/m² |
LED-baggrundsbelysning | Ja |
Præstation | |
NVIDIA G-SYNC | Ingen |
AMD FreeSync | Ingen |
Multimedie | |
Indbygget kamera | Ingen |
Indbygget mikrofon | Ingen |
Design | |
Produktfarve | Sort |
Kode for international beskyttelse (IP) | IP65 |
Glas tykkelse | 6 mm |
Certificering | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead |
Porte & Grænseflader | |
HDMI | Ja |
Antal VGA-porte (D-sub) | 1 |
Antal HDMI-porte | 1 |
Antal DisplayPorts | 1 |
HDCP | Ja |
Ergonomisk | |
VESA montering | Ja |
Panel montering grænseflade | 100 x 100 mm |
Kan monteres på væggen | Ja |
Skærmvisning (OSD) | Ja |
OSD-sprog | Tysk, Engelsk, Spansk, Fransk, Italiensk, Japansk |
Antal OSD sprog | 7 |
Strømstyring | |
Energieffektivitetsklasse (SDR) | F |
Energiforbrug (SDR) pr. 1000 timer | 18 kWh |
Strømforbrug (typisk) | 21 W |
Strømforbrug (standby) | 1,5 W |
Strømforbrug (slukket) | 1,5 W |
Strømforsyningstype | DC |
Energieffektivitetsskala | A til G |
Vægt & størrelser | |
Bredde (uden stativ) | 416 mm |
Dybde (uden stativ) | 46,5 mm |
Højde (uden stativ) | 344 mm |
Vægt (uden stativ) | 4,4 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85285210 |
Andre funktioner | |
Vis synligt område (HxL) | 376,5 x 301,1 mm |
Tilslutning til pc | Ja |
