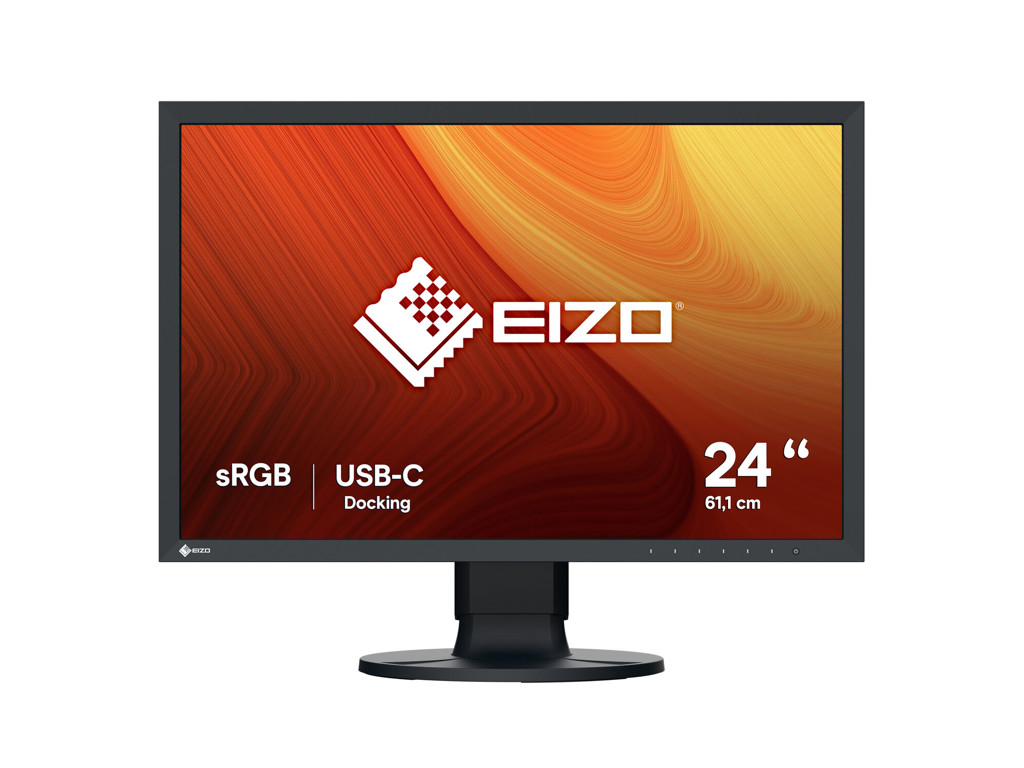

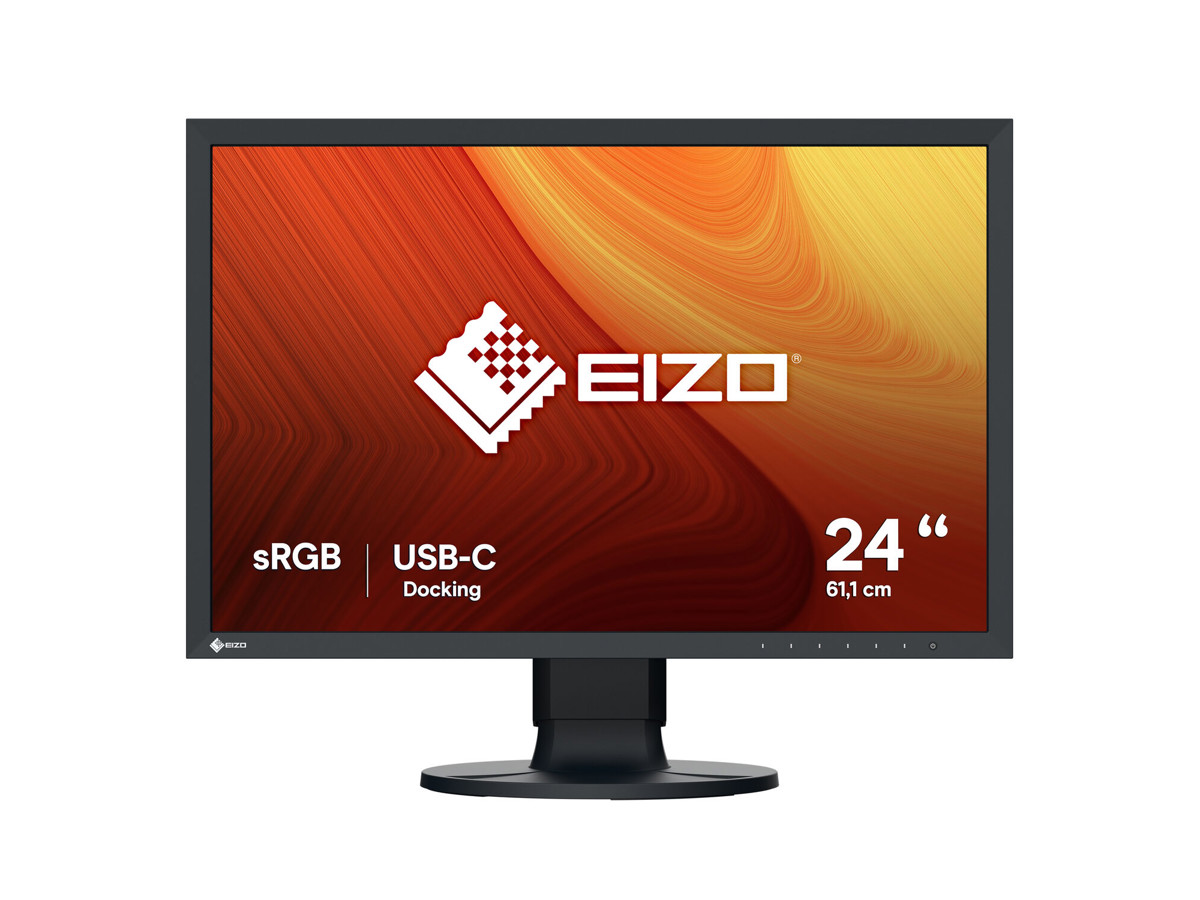

The ColorEdge CS2400R is the most affordable entry into the world of maximum precision: the panel offers full coverage of the sRGB and Rec 709 colour spaces. The Digital Uniformity Equalizer (DUE) ensures homogeneous image representation and the 16-bit look-up table guarantees absolutely precise colour representation with up to 10 bits. On the one hand, the exact factory calibration guarantees the highest precision "out of the box". On the other hand, the regularly recommended recalibration is done in no time at all. This means that photographers, filmmakers or image editors can always rely on their monitor to show them an absolutely precise view of their image file. The docking functions via USB-C allow the image signal to be transferred and the monitor’s USB hub to be powered with just one cable. In addition, a mobile device can be supplied with up to 70 watts of charging current. In this way, the CS2400S becomes the central dock of the creative workflow with a flick of the wrist. Alternatively, the monitor can of course also be operated via HDMI or DisplayPort as well as USB-B upstream.
Display | |
Skærm diagonal | 61,2 cm (24.1") |
Skærmopløsning | 1920 x 1200 pixel |
Naturligt aspektforhold | 16:10 |
Skærmteknologi | LCD |
Berøringsskærm | Ingen |
HD-type | WUXGA |
Paneltype | IPS |
Responstid | 14 ms |
Skærm form | Flad |
Kontrastforhold (typisk) | 1000:1 |
Maksimal opdateringshastighed | 60 Hz |
Vis antal farver | 1,07 milliarder farver |
Type af baggrundslys | LED |
Skærmens lysstyrke (typisk) | 300 cd/m² |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Pixel pitch | 0,27 x 0,27 mm |
Horisontal scanningsområde | 15 - 76 kHz |
Vertikalt scanningsområde | 23 - 61 Hz |
Synlig størrelse, horisontal | 51,8 cm |
Synlig størrelse, vertikal | 32,4 cm |
Skærm diagonal (metrisk) | 61,1 cm |
Standard for farveskala | sRGB |
sRGB-dækning (typisk) | 100% |
Præstation | |
NVIDIA G-SYNC | Ingen |
AMD FreeSync | Ingen |
Flimmerfri teknologi | Ja |
Multimedie | |
Indbyggede højttaler(e) | Ingen |
Indbygget kamera | Ingen |
Design | |
Markedspositionering | Grafisk design |
Produktfarve | Sort |
Farve | Sort |
Porte & Grænseflader | |
Indbygget USB-hub | Ja |
HDMI | Ja |
Udgang til hovedtelefoner | Ingen |
USB-hub-version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
USB upstream port type | USB Type-B, USB Type-C |
Antal USB Type-B opstrømsporte | 1 |
Antal USB Type-C opstrømsporte | 1 |
Antal USB type-A downstream-porte | 4 |
USB type-C DisplayPort alternativ tilstand | Ja |
USB strømforsyning | Ja |
USB strømforsyning op til | 70 W |
Antal HDMI-porte | 1 |
Antal DisplayPorts | 1 |
Indbygget KVM switch | Ja |
HDCP | Ja |
Ergonomisk | |
VESA montering | Ja |
Slot til kabellås | Ja |
Højdejustering | Ja, 15,5 cm |
Panel montering grænseflade | 100 x 100 mm |
Kabellåseslids type | Kensington |
Akse | Ja |
Pivot vinkel | 0 - 90° |
Drejelig | Ja |
Drejevinkel område | 0 - 344° |
Hældningsindstilling | Ja |
Hældningsvinkelområde | -5 - 35° |
Skærmvisning (OSD) | Ja |
OSD-sprog | Tysk, Engelsk, Spansk, Fransk, Italiensk, Svensk |
Antal OSD sprog | 6 |
Strømstyring | |
Energieffektivitetsklasse (SDR) | F |
Energieffektivitetsklasse (HDR) | Ikke tilgængelig |
Energiforbrug (SDR) pr. 1000 timer | 19 kWh |
Strømforbrug (typisk) | 15 W |
Strømforbrug (standby) | 0,3 W |
Strømforbrug (strømbesparelse) | 0,3 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Kode for europæisk produktregister for energimærkning (EPREL) | 1442822 |
Vægt & størrelser | |
Bredde (med stativ) | 554 mm |
Dybde (med stativ) | 245 mm |
Højde (med stativ) | 396 mm |
Vægt (med stativ) | 8,1 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm, HDMI, USB Type-A til USB Type-B |
Hurtig start guide | Ja |
Andre funktioner | |
Kalibrering af hardware | Ja |
Certificering | CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC |
