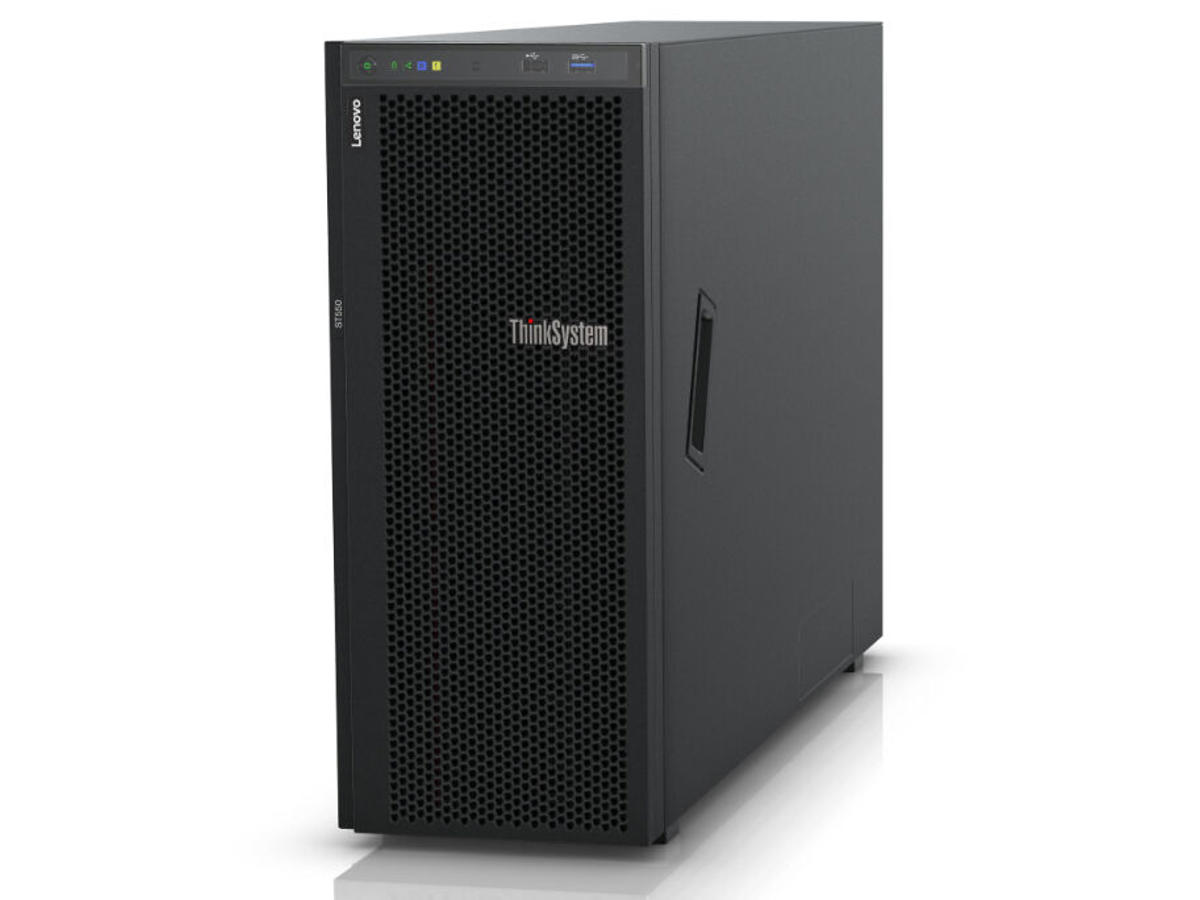

The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. Now available with second-generation Intel Xeon Scalable processors, the ST550 is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices.
This product guide provides essential presales information to understand the ThinkSystem ST550 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST550 and consider its use in IT solutions.
Processor | |
Processorserie | Intel® Xeon Silver |
Processorproducent | Intel |
Processormodel | 4208 |
Processorfrekvens | 2,1 GHz |
Processorgeneration | Intel Xeon skalerbar 2. generation |
Processor boost frekvens | 3,2 GHz |
Processor-cache | 11 MB |
Bundkort chipsæt | Intel® C624 |
Antal installerede processorer | 1 |
Udfør deaktivering af bit | Ja |
Indlejret tilgængelige muligheder | Ingen |
Hukommelse | |
Intern hukommelse | 16 GB |
Intern hukommelsestype | DDR4-SDRAM |
Hukommelsesstik | 12 |
Fejlkorrigerende kode | Ja |
Hukommelsesur hastighed | 2933 MHz |
Hukommelseslayout (slots x størrelse) | 1 x 16 GB |
Lagring | |
Understøtter RAID | Ja |
RAID-niveauer | 0, 1, 5, 6, 10, 50, 60 |
Understøttede RAID-kontroller | 930-8i 2GB |
Grafik | |
On-board grafikkort | Ja |
On-board grafikkort, model | Ikke tilgængelig |
Maksimal grafikadapterhukommelse | 16 MB |
Netværk | |
Ethernet LAN | Ja |
Kabelteknologi | 10/100/1000Base-T(X) |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
Antal USB 2.0-porte | 5 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
Antal VGA-porte (D-sub) | 1 |
Design | |
Kabinettype | Tårn (4U) |
Produktfarve | Sort |
Understøttelse af redundante blæsere | Ja |
Præstation | |
Målstyring | XClarity Enterprise |
Trusted Platform Module (TPM) | Ja |
Software | |
Kompatible operativsystemer | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
Processor særlige funktioner | |
Enhanced Intel SpeedStep Teknologi | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Trusted Execution Teknologi | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® TSX-NI | Ja |
Intel® 64 | Ja |
Intel® Virtualization Technology (VT-x) | Ja |
Strømstyring | |
Redundant strømforsyning | Ja |
Strømforsyning | 750 W |
Antal installerede strømforsyninger | 1 |
Logistik data | |
Harmoniseret systemkode (HS) | 84714100 |
Bæredygtighed | |
Bæredygtighedscertifikater | ENERGY STAR |
Vægt & størrelser | |
Bredde | 176 mm |
Dybde | 660 mm |
Højde | 438 mm |
Vægt | 36 kg |
