Built for business, with business-critical versatility

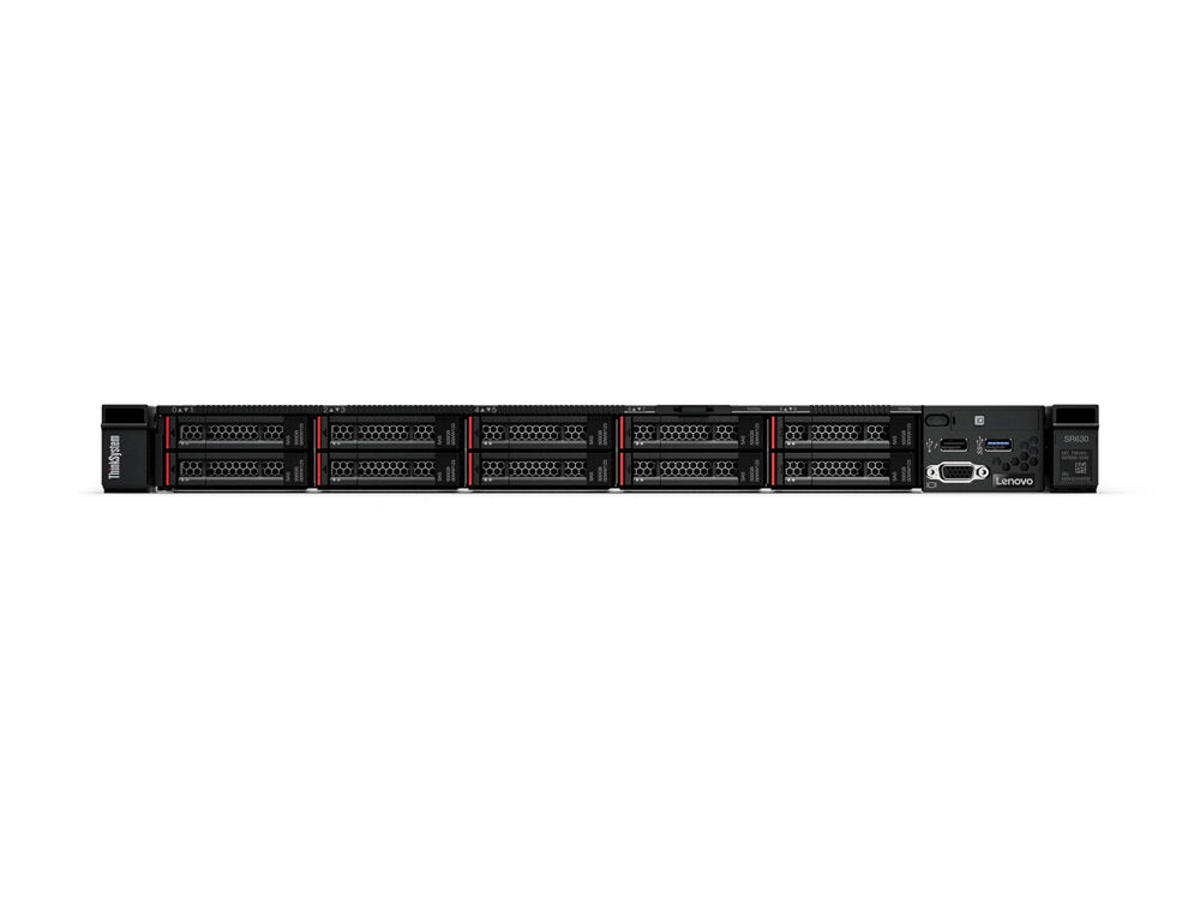

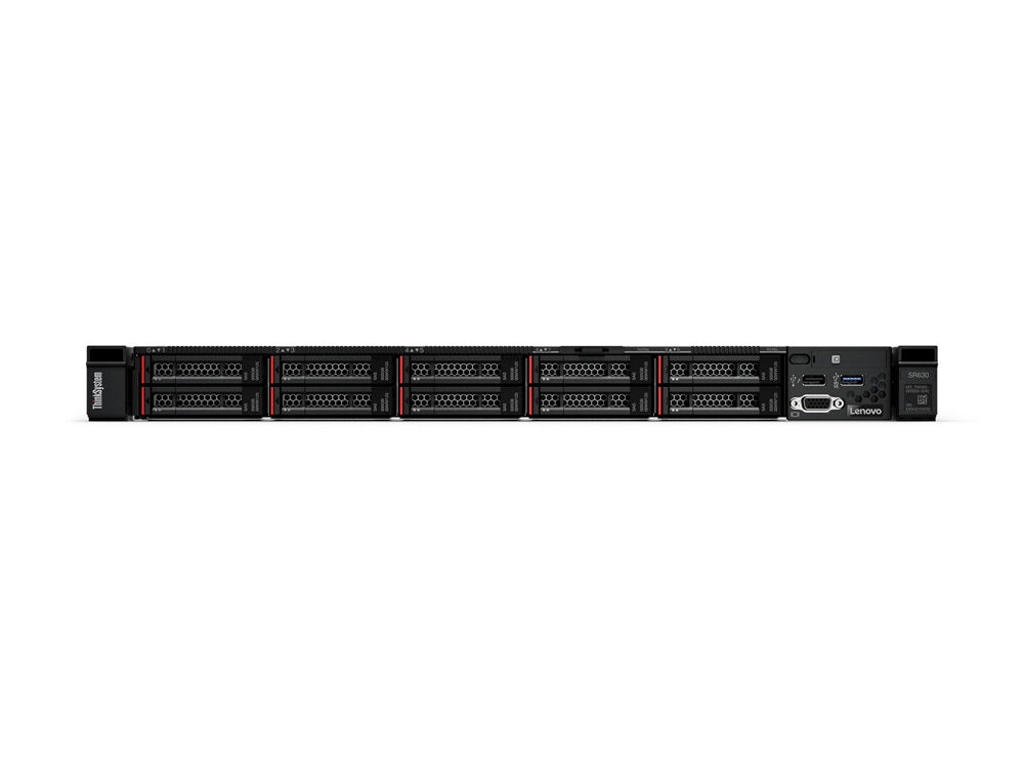

The versatile, highly reliable 1U ThinkSystem SR630 2P rack server is designed to handle most data center workloads, from IT infrastructure and HPC to cloud and hyperconverged.
Future defined data center
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*
* Based on Intel internal testing, August 2018.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
Processor | |
Processorserie | Intel® Xeon Silver |
Processorproducent | Intel |
Processormodel | 4214 |
Processorfrekvens | 2,2 GHz |
Processorgeneration | Intel Xeon skalerbar 2. generation |
Processor boost frekvens | 3,2 GHz |
Processorkerner | 12 |
Processor-cache | 16,5 MB |
Bundkort chipsæt | Intel® C624 |
Antal installerede processorer | 1 |
Thermal Design Power (TDP) | 85 W |
Processor sokkel | LGA 3647 (Socket P) |
Processor litografi | 14 nm |
Processortråde | 24 |
Processor driftstilstande | 64-bit |
Processor kodenavn | Cascade Lake |
Tcase | 77 °C |
Maksimal intern hukommelse understøttet af processor | 1,02 TB |
Hukommelsestyper understøttet af processor | DDR4-SDRAM |
Hukommelsesurhastigheder understøttet af processor | 2400 MHz |
Udfør deaktivering af bit | Ja |
Maksimalt antal PCI Express-kanaler | 48 |
Processor-pakke størrelse | 76.0 x 56.5 mm |
Understøttede instruktionssæt | AVX-512 |
Skalerbarhed | 2S |
Indlejret tilgængelige muligheder | Ja |
Hukommelse | |
Intern hukommelse | 16 GB |
Intern hukommelsestype | DDR4-SDRAM |
Hukommelsesstik | 24 |
Hukommelsesur hastighed | 2666 MHz |
Hukommelseslayout (slots x størrelse) | 1 x 16 GB |
Lagring | |
Understøtter RAID | Ja |
Understøttede HDD-størrelser | 2.5" |
RAID-niveauer | 0, 1, 5, 6, 10, 50, 60 |
Understøttede RAID-kontroller | 930-8i 2GB |
Hot-swap | Ja |
Grafik | |
On-board grafikkort | Ja |
On-board grafikkort, model | Ikke tilgængelig |
Netværk | |
Ethernet LAN | Ja |
Kabelteknologi | 10/100/1000Base-T(X) |
Porte & Grænseflader | |
Antal USB 2.0-porte | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
Antal VGA-porte (D-sub) | 1 |
Udvidelsessokler | |
PCI Express slots version | 3.0 |
Design | |
Kabinettype | Stativ (1U) |
Produktfarve | Sort, Sølv |
Stativ-montering | Ja |
Præstation | |
Målstyring | XClarity |
Trusted Platform Module (TPM) | Ja |
Software | |
Kompatible operativsystemer | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1 ,Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 Xen SP4 , SUSE Linux Enterprise Server 12 Xen SP5 SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 Xen, SUSE Linux Enterprise Server 15 Xen SP1, SUSE Linux Enterprise Server 15 Xen SP2, VMware ESXi 6.5 U2, VMware ESXi 6.5 U3, VMware ESXi 6.7 U1, VMware ESXi 6.7 U2, VMware ESXi 6.7 U3 VMware ESXi 7.0, VMware ESXi 7.0 U1 |
Processor særlige funktioner | |
Enhanced Intel SpeedStep Teknologi | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
Intel® Turbo Boost Teknologi | 2.0 |
Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
Intel® Trusted Execution Teknologi | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® TSX-NI | Ja |
Intel® 64 | Ja |
Intel® Virtualization Technology (VT-x) | Ja |
Processor ARK ID | 193385 |
Strømstyring | |
Redundant strømforsyning | Ja |
Strømforsyning | 750 W |
Antal understøttede overflødige strømforsyninger | 2 |
Antal af hovedstrømforsyninger | 1 |
Logistik data | |
Harmoniseret systemkode (HS) | 84714100 |
Bæredygtighed | |
Bæredygtighedscertifikater | ENERGY STAR |
Vægt & størrelser | |
Bredde | 435 mm |
Dybde | 750 mm |
Højde | 43 mm |
