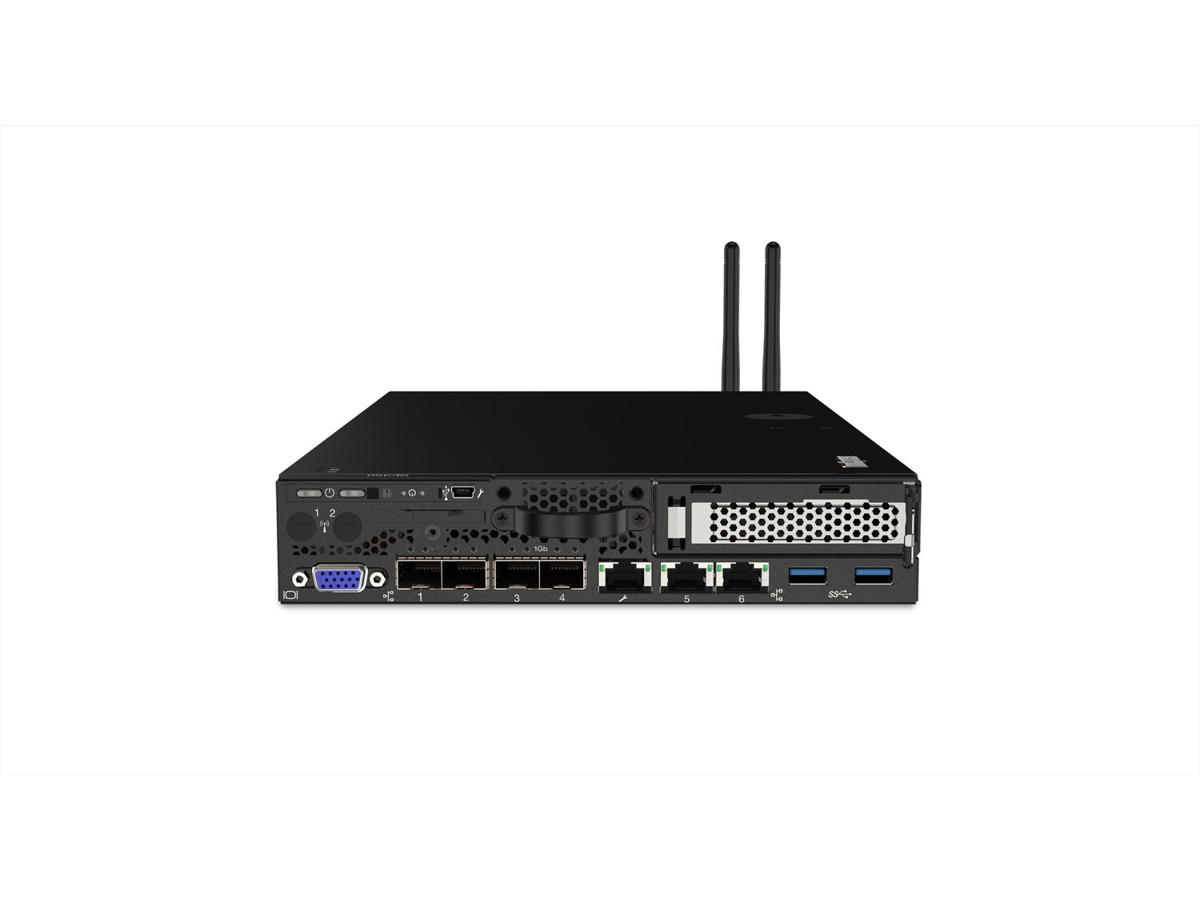

The ThinkSystem SE350 is a purpose-built server that is half the width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. It can be mounted on a wall, stacked on a shelf or mounted in a rack. The ThinkSystem SE350 puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly..
This product guide provides essential pre-sales information to understand the ThinkSystem SE350 edge server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SE350 and consider its use in IT solutions.
Introduction
The ThinkSystem SE350 is a purpose-built server that is half the width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. It can be mounted on a wall, stacked on a shelf or mounted in a rack. The ThinkSystem SE350 puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly.
Suggested uses: edge computing (IoT, AI, machine learning), retail, video security, inventory management, building control, telecommunications, manufacturing, distribution
Did you know?
Customers looking for computing solutions at the edge of their networks often have to compromise -- to use either datacenter-class equipment which is too large and power hungry, or PC based equipment which can't run their enterprise level applications. The ThinkSystem SE350 fits the space between those two extremes. Its compact design, low power usage, and high performance are just the right combination for edge locations. The SE350 can be wall mounted, stacked on a shelf or installed in a rack. It is also designed to operate in rugged environments, up to 55°C.
Processor | |
Processorserie | Intel® Xeon® D |
Processorproducent | Intel |
Processormodel | D-2143IT |
Processorfrekvens | 2,2 GHz |
Processor boost frekvens | 3 GHz |
Processorkerner | 8 |
Processor-cache | 11 MB |
Antal installerede processorer | 1 |
Thermal Design Power (TDP) | 65 W |
Processor sokkel | BGA 2518 |
Processor litografi | 14 nm |
Processortråde | 16 |
Processor driftstilstande | 64-bit |
Stepping | M1 |
Bus type | UPI |
Processor kodenavn | Skylake |
Maksimal intern hukommelse understøttet af processor | 512 GB |
Hukommelsestyper understøttet af processor | DDR4-SDRAM |
Hukommelsesurhastigheder understøttet af processor | 2133 MHz |
Udfør deaktivering af bit | Ja |
Idle status | Ja |
Termiske overvågningsteknologier | Ja |
Maksimalt antal PCI Express-kanaler | 32 |
Understøttede instruktionssæt | AVX 2.0 |
Processor kode | SR3ZU |
Skalerbarhed | 1S |
Indlejret tilgængelige muligheder | Ja |
Konfliktfri processor | Ja |
Hukommelse | |
Intern hukommelse | 32 GB |
Intern hukommelsestype | DDR4-SDRAM |
Maksimal intern hukommelse | 256 GB |
Hukommelsesstik | 4 |
Fejlkorrigerende kode | Ja |
Hukommelsesur hastighed | 2666 MHz |
Hukommelseslayout (slots x størrelse) | 1 x 32 GB |
Lagring | |
Maksimal lagerkapacitet | 15,68 TB |
Understøtter RAID | Ja |
Optisk drevtype | Ingen |
SSD-grænsefladetype | M.2 |
Antal understøttede SSD'er | 4 |
RAID-niveauer | 0, 1, 5, 10 |
Grafik | |
On-board grafikkort | Ja |
On-board grafikkort, model | Matrox G200 |
Netværk | |
Wi-Fi | Ja |
Wi-Fi-standarder | Wi-Fi 5 (802.11ac) |
Wake-on-LAN klar | Ja |
Ethernet LAN | Ja |
Kabelteknologi | 10/100/1000Base-T(X) |
Ethernet-grænsefladetype | 10 Gigabit Ethernet, Gigabit Ethernet |
Porte & Grænseflader | |
Antal USB 2.0-porte | 2 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
Antal VGA-porte (D-sub) | 1 |
Antal serielle porte | 1 |
Udvidelsessokler | |
PCI Express slots version | 3.0 |
Design | |
Kabinettype | Stativ (1U) |
Produktfarve | Sort |
Præstation | |
Målstyring | XClarity Enterprise |
Trusted Platform Module (TPM) | Ja |
Trusted Platform Module (TPM) version | 2.0 |
Software | |
Kompatible operativsystemer | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. Ubuntu Server certification. |
Processor særlige funktioner | |
CPU-konfiguration (maks.) | 1 |
Enhanced Intel SpeedStep Teknologi | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
Intel® Turbo Boost Teknologi | 2.0 |
Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
Intel® Trusted Execution Teknologi | Ja |
Intel® Enhanced Halt State | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® Sikker Nøgle | Ja |
Intel® TSX-NI | Ja |
Intel® OS Guard | Ja |
Intel® Software Guard Extensions (Intel® SGX) | Ingen |
Intel® 64 | Ja |
Intel® Secure Key Technology version | 1,00 |
Intel® Virtualization Technology (VT-x) | Ja |
Intel® TSX-NI-version | 1,00 |
Intel® QuickAssist Teknologi | Ingen |
Processor ARK ID | 136431 |
Strømstyring | |
Redundant strømforsyning | Ja |
Antal installerede strømforsyninger | 1 |
Vægt & størrelser | |
Bredde | 209 mm |
Dybde | 376 mm |
Højde | 43 mm |
Vægt | 3,75 kg |
