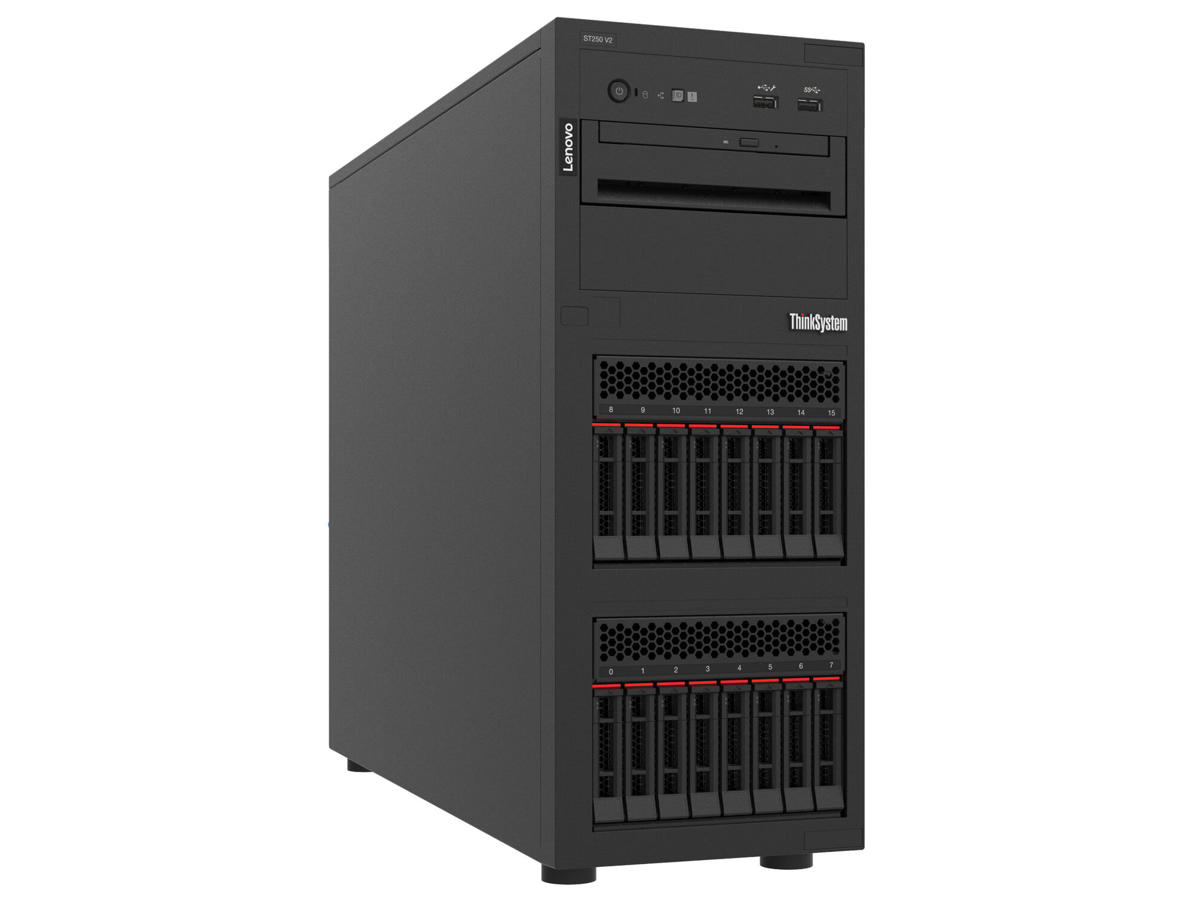

The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST250 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V2 and consider its use in IT solutions.
Processor | |
Processorserie | Intel Xeon E |
Processorproducent | Intel |
Processormodel | E-2356G |
Processorfrekvens | 3,2 GHz |
Processor boost frekvens | 5 GHz |
Processorkerner | 6 |
Processor-cache | 12 MB |
Bundkort chipsæt | Intel C256 |
Antal installerede processorer | 1 |
Hukommelse | |
Intern hukommelse | 32 GB |
Intern hukommelsestype | DDR4-SDRAM |
Maksimal intern hukommelse | 128 GB |
Hukommelsesstik | 4x DIMM |
Fejlkorrigerende kode | Ja |
Hukommelseslayout (slots x størrelse) | 1 x 32 GB |
Lagring | |
Understøtter RAID | Ja |
Optisk drevtype | Ingen |
Understøttede RAID-kontroller | 5350-8i |
Interne drevbåse | 8 |
Grafik | |
On-board grafikkort | Ja |
Indbygget grafikadapterfamilie | Intel® UHD Graphics |
On-board grafikkort, model | Intel UHD Graphics P750 |
Netværk | |
Ethernet LAN | Ja |
Porte & Grænseflader | |
Antal USB 2.0-porte | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 1 |
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 4 |
Antal VGA-porte (D-sub) | 1 |
Antal serielle porte | 1 |
Design | |
Kabinettype | Tower |
Produktfarve | Sort |
Præstation | |
Fjernstyret administration | XCC Enterprise |
Støjniveau | 27,6 dB |
Trusted Platform Module (TPM) | Ja |
Trusted Platform Module (TPM) version | 2.0 |
Software | |
Operativsystem installeret | Ingen |
Kompatible operativsystemer | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
Processor særlige funktioner | |
CPU-konfiguration (maks.) | 1 |
Strømstyring | |
Strømforsyning | 750 W |
Antal af hovedstrømforsyninger | 1 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 45 °C |
Opbevaringstemperatur (T-T) | -40 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 8 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 8 - 90% |
Driftshøjde | 0 - 3050 m |
Vægt & størrelser | |
Bredde | 176 mm |
Dybde | 578 mm |
Højde | 444 mm |
Vægt | 23,6 kg |
