Powerful and balanced

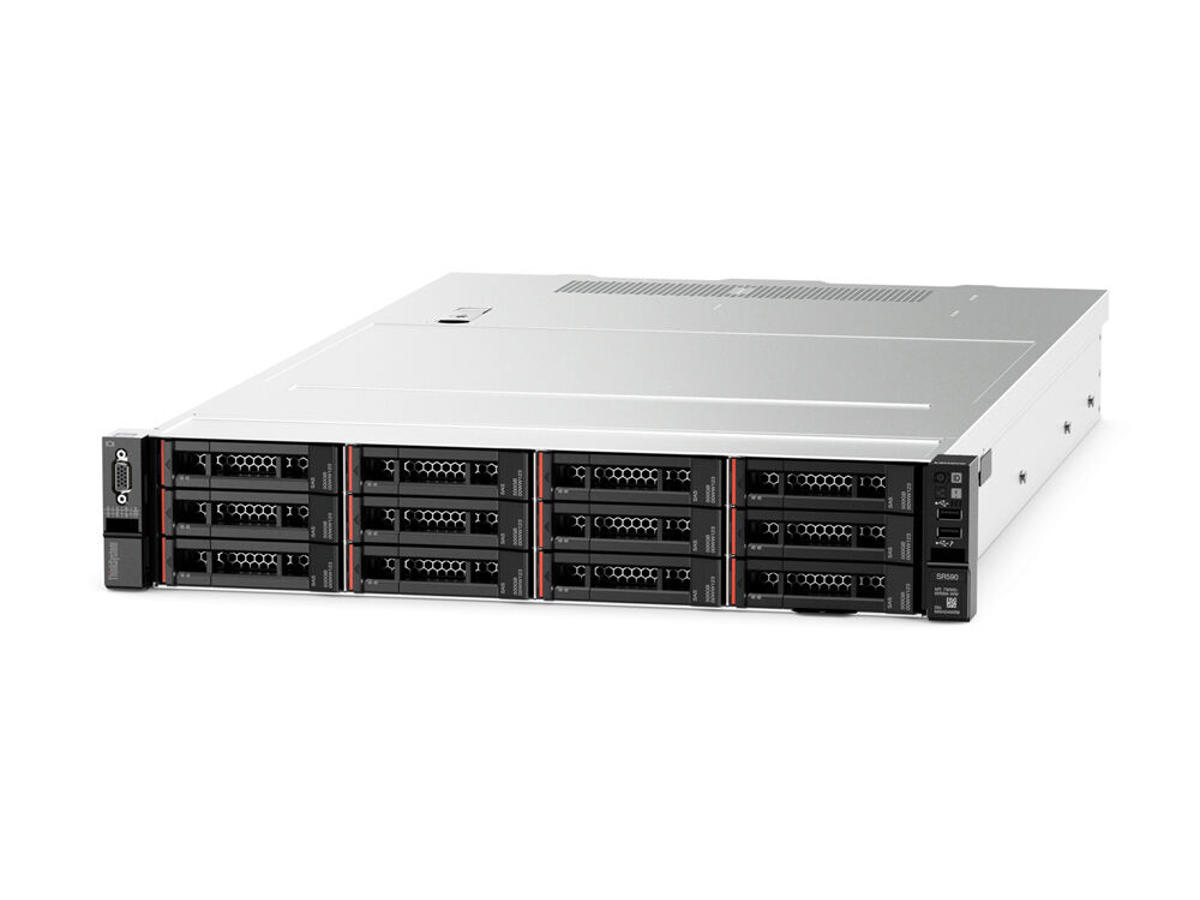

Designed for rack environments that require peak two-socket performance and sizeable memory capacity, the Lenovo ThinkSystem SR590 can tackle cloud and Big Data environments for medium and large enterprises. The SR590 is a balanced, midrange rack server that also works well for small-scale virtualization, collaboration and productivity applications, as well as caching and logging.
Two Intel® Xeon® Scalable Family processors increase agility and manage data-rich, high-demand workloads with up to a 1.5x memory bandwidth increase over the previous generation. Combined with up to 1TB of memory capacity, this enables applications to run faster and more efficiently and boosts business performance at a lower cost and higher overall value.
Flexible and expandable
The SR590 supports up to 16 hot-swap 2.5” or 14 hot-swap or simple-swap 3.5” drive bays. Up to four of the 2.5” or 3.5” bays can be AnyBay, capable of supporting not only SAS/ SATA drives, but also direct -connect NVMe drives (which bypass the SAS bus) for the ultimate in storage performance. In addition, the SR590 supports SAS and SATA HDDs and SSDs with up to 12Gb SAS throughput, as well as up to two M.2 drives for faster, more secure OS boot. The SR590 provides storage flexibility, NIC expansion in multiple form factors, including LOM, ML2, and PCIe, and replaceable I/O riser cards for varied adapter slot configurations.
Reliable and secure
Lenovo servers have been the most reliable in the industry for several years. They were ranked #1 yet again in the latest ITIC survey of x86 server reliability*. The SR590 is no exception, including many features that contribute to the reliability and security of the server and your all-important data.
These features result in an ideal server for proxy caching, cloud, CRM, security, virtualization, media streaming, Big Data, databases, database-driven Web serving, mail serving, and many other workloads.
Why Lenovo
Lenovo is the leading provider of x86 systems for the data center. The portfolio includes rack, tower, blade, dense and converged systems, and supports enterprise class performance, reliability and security. Lenovo also offers a full range of networking, storage, software and solutions, and comprehensive services supporting business needs throughout the IT lifecycle.
Processor | |
Processorserie | Intel® Xeon Silver |
Processorproducent | Intel |
Processormodel | 4210 |
Processorfrekvens | 2,2 GHz |
Processorgeneration | Intel Xeon skalerbar 2. generation |
Processor boost frekvens | 3,2 GHz |
Processorkerner | 10 |
Processor-cache | 13,75 MB |
Antal installerede processorer | 1 |
Thermal Design Power (TDP) | 85 W |
Processor sokkel | LGA 3647 (Socket P) |
Processor litografi | 14 nm |
Processortråde | 20 |
Processor driftstilstande | 64-bit |
Processor kodenavn | Cascade Lake |
Tcase | 78 °C |
Maksimal intern hukommelse understøttet af processor | 1,02 TB |
Hukommelsestyper understøttet af processor | DDR4-SDRAM |
Hukommelsesurhastigheder understøttet af processor | 2400 MHz |
Udfør deaktivering af bit | Ja |
Maksimalt antal PCI Express-kanaler | 48 |
Processor-pakke størrelse | 76.0 x 56.5 mm |
Understøttede instruktionssæt | AVX-512 |
Skalerbarhed | 2S |
Indlejret tilgængelige muligheder | Ja |
Hukommelse | |
Intern hukommelse | 16 GB |
Intern hukommelsestype | DDR4-SDRAM |
Fejlkorrigerende kode | Ja |
Hukommelsesur hastighed | 2666 MHz |
Hukommelseslayout (slots x størrelse) | 1 x 16 GB |
Lagring | |
Samlet lagringskapacitet | 1,8 TB |
Understøtter RAID | Ja |
Optisk drevtype | Ingen |
Antal installerede HDD'er | 3 |
HDD kapacitet | 600 GB |
HDD-størrelse | 2.5" |
Understøttede HDD-størrelser | 2.5" |
RAID-niveauer | 0, 1, 5, 6, 10, 50, 60 |
Understøttede RAID-kontroller | 930-8i 2GB |
Hot-swap | Ja |
Netværk | |
Ethernet LAN | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
Antal USB 2.0-porte | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
Antal VGA-porte (D-sub) | 1 |
Udvidelsessokler | |
PCI Ekspres x8 (Gen 3.x) slots | 1 |
PCI Express slots version | 3.0 |
Design | |
Kabinettype | Stativ (2U) |
Produktfarve | Sort |
Stativ-montering | Ja |
Software | |
Operativsystem installeret | Ingen |
Kompatible operativsystemer | Microsoft Windows Server 2016 VMware vSphere 6.0 (ESXi) Update 3 VMware vSphere 6.5 (ESXi) Update 1 SUSE Linux Enterprise Server 11 x64 SP4 SUSE Linux Enterprise Server 12 SP3 Red Hat Enterprise Linux 6.9 Red Hat Enterprise Linux 7.4 Microsoft Windows Server 2012 R2 |
Processor særlige funktioner | |
Enhanced Intel SpeedStep Teknologi | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
Intel® Turbo Boost Teknologi | 2.0 |
Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
Intel® Trusted Execution Teknologi | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® TSX-NI | Ja |
Intel® 64 | Ja |
Intel® Virtualization Technology (VT-x) | Ja |
Processor ARK ID | 193384 |
Strømstyring | |
Redundant strømforsyning | Ja |
Strømforsyning | 750 W |
Antal installerede strømforsyninger | 1 |
Logistik data | |
Harmoniseret systemkode (HS) | 84714100 |
Bæredygtighed | |
Bæredygtighedscertifikater | ENERGY STAR |
Vægt & størrelser | |
Bredde | 482 mm |
Dybde | 763,7 mm |
Højde | 86,5 mm |
Vægt | 28 kg |
