Essential and priced within reach

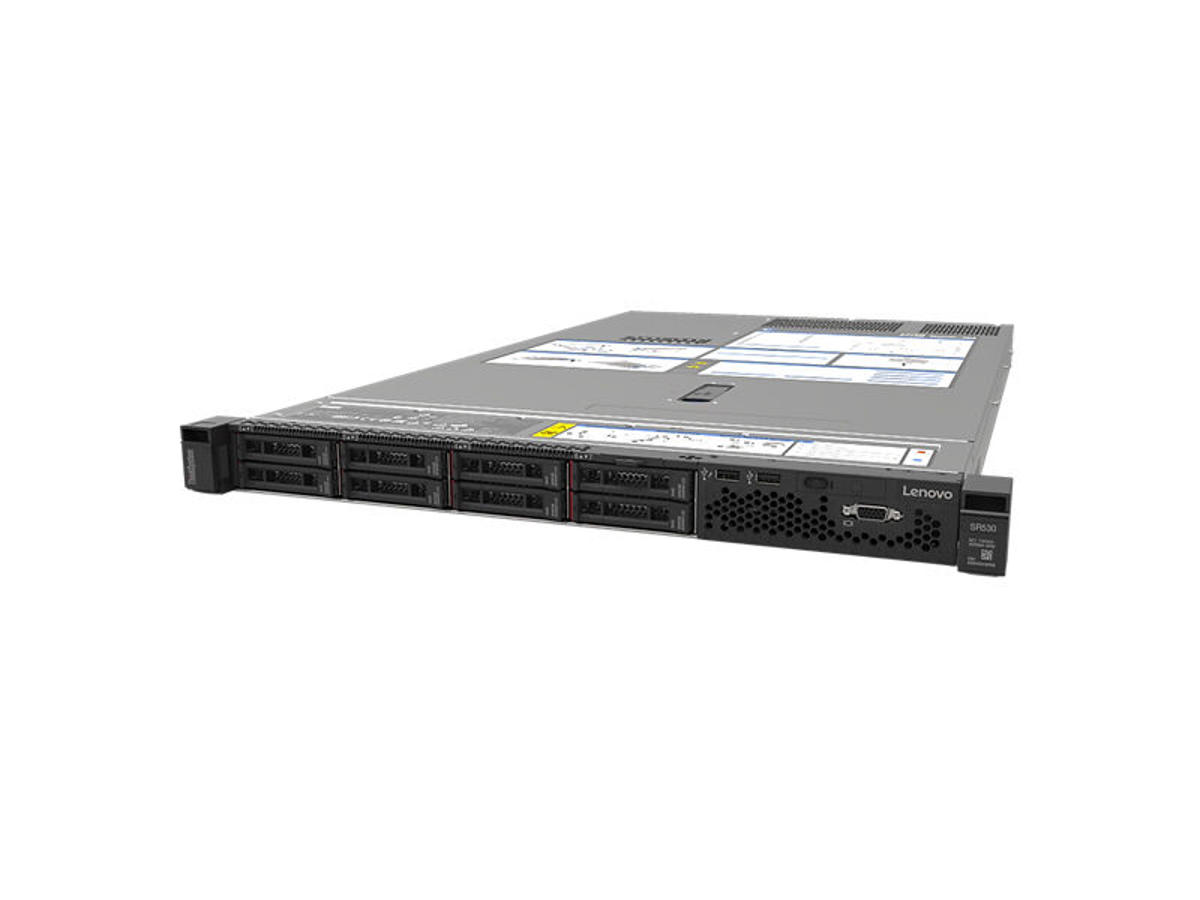

Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.
Flexible to grow with your business
ThinkSystem SR530 offers numerous features to increase performance and flexibility. Incorporating two Intel® Xeon® Scalable family CPUs with 43 percent more cores, faster memory, increased I/O, and more storage capacity than the previous generation*, SR530 offers a balance of performance, capacity and value. With M.2 storage support, it provides robust boot drive options, freeing up the other drive bays for additional storage capacity. SR530 supports up to three PCIe adapter slots; several choices of network options via embedded LOM, selectable LOM, ML2, and PCIe adapters for additional 1GbE/10GbE ports; and software and hardware RAID options for added configuration flexibility. In addition, features such as 80 PLUS Platinum and Titanium PSUs, continuous operation at 45°C (with limitations), and various technologies that speed upgrades and maintenance all combine to reduce your operating costs and increase uptime.
Easily managed
Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates.
Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs.
Lenovo servers continue to be the industry’s #1 most reliable†, with the industry’s highest customer satisfaction‡ rating.
Processor | |
Processorserie | Intel® Xeon Silver |
Processorproducent | Intel |
Processormodel | 4208 |
Processorfrekvens | 2,1 GHz |
Processorgeneration | Intel Xeon skalerbar 2. generation |
Processor boost frekvens | 3,2 GHz |
Processorkerner | 8 |
Processor-cache | 11 MB |
Bundkort chipsæt | Intel C622 |
Antal installerede processorer | 1 |
Thermal Design Power (TDP) | 85 W |
Processor sokkel | LGA 3647 (Socket P) |
Processor litografi | 14 nm |
Processortråde | 16 |
Processor driftstilstande | 64-bit |
Processor kodenavn | Cascade Lake |
Tcase | 78 °C |
Maksimal intern hukommelse understøttet af processor | 1,02 TB |
Hukommelsestyper understøttet af processor | DDR4-SDRAM |
Hukommelsesurhastigheder understøttet af processor | 2400 MHz |
Udfør deaktivering af bit | Ja |
Maksimalt antal PCI Express-kanaler | 48 |
Processor-pakke størrelse | 76.0 x 56.5 mm |
Understøttede instruktionssæt | AVX-512 |
Skalerbarhed | 2S |
Indlejret tilgængelige muligheder | Ingen |
Hukommelse | |
Intern hukommelse | 16 GB |
Intern hukommelsestype | DDR4-SDRAM |
Hukommelsesstik | 12 |
Fejlkorrigerende kode | Ja |
Hukommelsesur hastighed | 2933 MHz |
Hukommelseslayout (slots x størrelse) | 1 x 16 GB |
Lagring | |
Understøtter RAID | Ja |
Optisk drevtype | Ingen |
Understøttede HDD-størrelser | 2.5" |
RAID-niveauer | 0, 1, 5, 10, 50 |
Understøttede RAID-kontroller | 530-8i |
Interne drevbåse | 8 |
Indbygget kortlæser | Ingen |
Grafik | |
Diskret grafikadapter | Ingen |
On-board grafikkort, model | Ikke tilgængelig |
Netværk | |
Wi-Fi | Ingen |
Bluetooth | Ingen |
Ethernet LAN | Ja |
Kabelteknologi | 10/100/1000Base-T(X) |
Udvidelsessokler | |
PCI Express slots version | 3.0 |
Design | |
Kabinettype | Stativ (1U) |
Produktfarve | Sort, Metallic |
Stativ-montering | Ja |
Understøttelse af redundante blæsere | Ja |
Rack skinner | Ja |
Præstation | |
Målstyring | XClarity Advanced |
Trusted Platform Module (TPM) | Ja |
Trusted Platform Module (TPM) version | 2.0 |
Software | |
Kompatible operativsystemer | Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux (RHEL) 7 and 8; SUSE Linux Enterprise Server (SLES) 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7 |
Processor særlige funktioner | |
Enhanced Intel SpeedStep Teknologi | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
Intel® Turbo Boost Teknologi | 2.0 |
Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
Intel® Trusted Execution Teknologi | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® TSX-NI | Ja |
Intel® 64 | Ja |
Intel® Virtualization Technology (VT-x) | Ja |
Processor ARK ID | 193390 |
Strømstyring | |
Redundant strømforsyning | Ja |
Strømforsyning | 750 W |
Antal installerede strømforsyninger | 1 |
Strømforsyningens indgangsfrekvens | 50 - 60 Hz |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 45 °C |
Opbevaringstemperatur (T-T) | -40 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 8 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 8 - 90% |
Driftshøjde | 0 - 3050 m |
Logistik data | |
Harmoniseret systemkode (HS) | 84714100 |
Bæredygtighed | |
Bæredygtighedscertifikater | ENERGY STAR |
Vægt & størrelser | |
Bredde | 434 mm |
Dybde | 715 mm |
Højde | 43 mm |
Vægt | 10,2 kg |
Andre funktioner | |
Indbygget skærm | Ingen |
