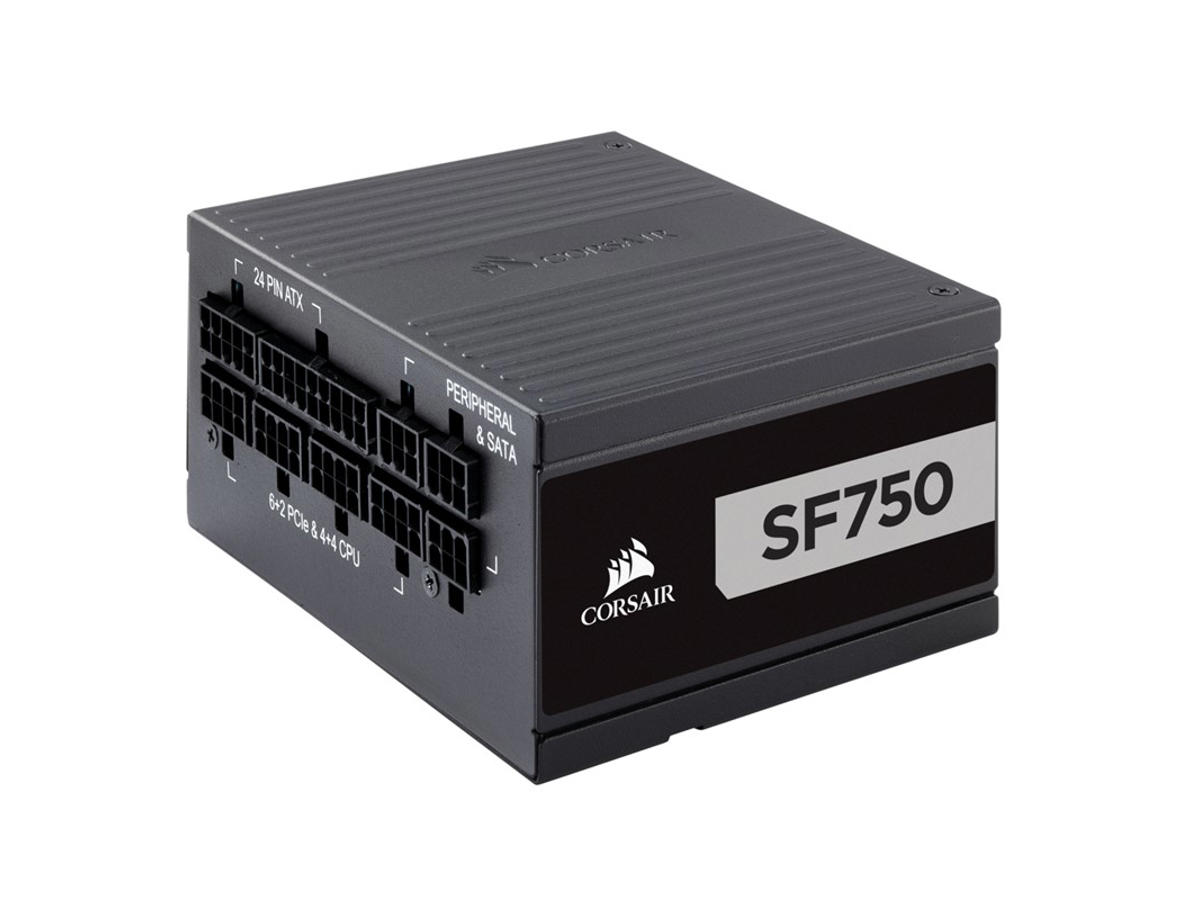

AN UNPRECEDENTED 750 WATT SFX PSU
The most powerful SFX power supply in the market, perfect for the most power-dense small-form-factor PCs.
80 PLUS PLATINUM CERTIFIED
The SF750 Platinum delivers power at up to 92% efficiency, lowering energy consumption, noise, temperatures, and your power bill.
JAPANESE 105°C CAPACITORS
Using high-end electrolytic capacitors, the SF750 Platinum offers the unwavering power and long-term reliability you demand from a CORSAIR power supply.
ZERO RPM FAN MODE
The SF750 Platinum’s 92mm cooling fan doesn’t spin until you need it, for near-silent operation at low and medium loads.
92MM PWM LOW NOISE COOLING FAN
Utilizing PWM instead of the standard DC voltage control, the SF750 Platinum keeps noise low and delivers precise fan speed. The SF750 Platinum also utilizes a copper alloy heatsink, ensuring optimal thermal performance.
FULLY MODULAR CABLES
SF Platinum Series power supplies come equipped with premium, individually sleeved cables featuring a flexible paracord sleeve, ready to fit right into your new high-end PC. The individually sleeved cables also make routing and cable management a breeze, with a lower profile and improved flexibility.
SFX-TO-ATX BRACKET INCLUDED
SF Platinum Series power supplies include an SFX-to-ATX power supply adapter bracket enabling installation into any ATX compatible case.
Strømstyring | |
Total effekt | 750 W |
Kombineret effekt (+3,3 V) | 130 W |
Kombineret effekt (+12 V) | 750 W |
Kombineret effekt (+5 V) | 130 W |
Kombineret effekt (-12V) | 3,6 W |
Kombineret effekt (+5 VSB) | 12,5 W |
Maks. udgangsstrøm (+3,3 V) | 20 A |
Maks. udgangsstrøm (+12 V) | 62,5 A |
Maks. udgangsstrøm (+5 V) | 20 A |
Maks. udgangsstrøm (-12V) | 0,3 A |
Maks. udgangsstrøm (+5 VSB) | 2,5 A |
Porte & Grænseflader | |
Motherboard, strømstik | 24-pin ATX |
Perifere (Molex) strømstik (4-pin) | 3 |
Antal SATA strømstik | 8 |
Strømkabellængde SATA | 450 mm |
Strømkabellængde Perifere (Molex) | 330 mm |
EPS strømstik (8-pin) | Ja |
PCI ekspres strømforbindelser (6+2 pin) | 4 |
PCI ekspres strømstik (8-pin) | 4 |
Strømkabellængde PCI Express | 50 cm |
CPU strømstik (4+4 pin) | Ja |
Strømkabellængde CPU | 40 cm |
ATX strømstrik (24 stikben) | Ja |
Kabeltype | Fuldt modulær |
Præstation | |
Formål | PC/server |
Strømforsyningenhed (PSU) formfaktor | SFX |
80 PLUS certificering | 80 PLUS Platinum |
ATX-version | 2.4 |
Kontinuerlig udgangstemperatur | 50 °C |
Lejeteknologi | Rifle |
Gennemsnitstid mellem fejl (MTBF) | 100000 t |
Design | |
Produktfarve | Sort |
Kølingstype | Aktiv |
Ventilator diameter | 9,2 cm |
Vægt & størrelser | |
Bredde | 125 mm |
Dybde | 63 mm |
Højde | 100 mm |
Logistik data | |
Harmoniseret systemkode (HS) | 84733020 |
