Power Up

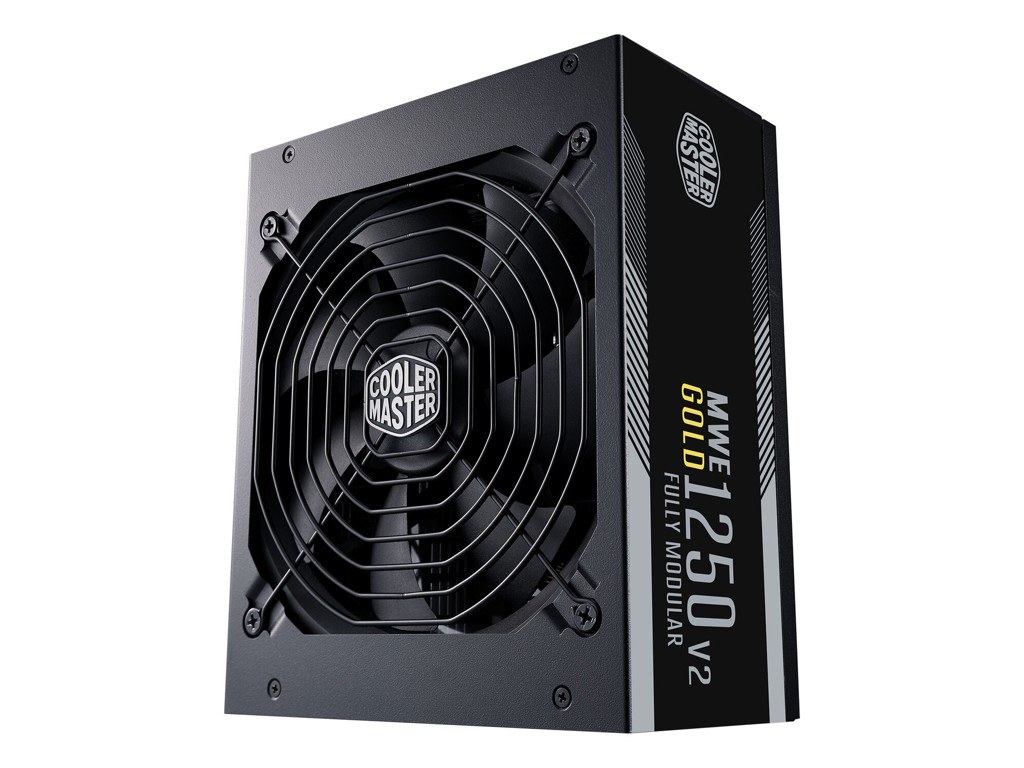

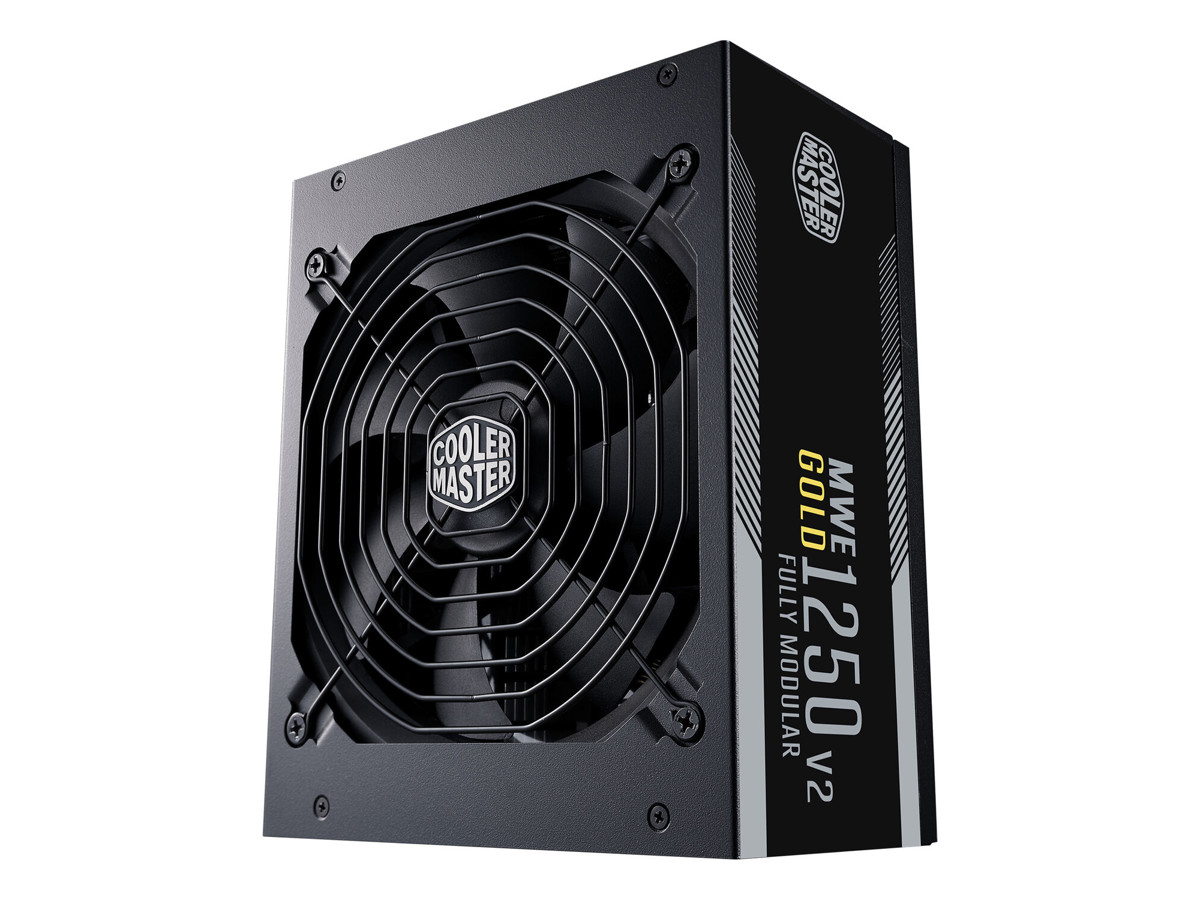

The new MWE Gold V2 1050, 1250 series is the next step in the evolution of Cooler Master's entry level 80 Plus Gold Power Supply line which improves upon the original version in the places where users will see the most immediate benefit in terms of performance and stability for high end pc requirements.
80 PLUS Gold Certified
The MWE Gold V2 1050, 1250 series delivers an 80 Plus Gold certification, guaranteeing a typical minimum efficiency of 90%.
RTX Ready
The MWE 1250 Gold - V2 comes standard with 2 EPS connectors, 6 PCI-e connectors, and a high maximum wattage in order to ensure universal compatibility with all current gen motherboards and RTX 30 series graphics cards. You can build the high end system of your dreams and run all the latest games without having to break the bank on your PSU. This unit has all the necessary features to power the newest components for a great price.
Silence Fan with Smart Temp. Controlling Feature
MWE Gold 1050 & 1250 are equipped with a 140mm silence fan with smart temperature controlling feature. The fan supports 0 RPM to achieve 0 noise based on the scenario.
High Temperature Resilience
MWE Gold V2 1250 series is able to push its temperature resilience to 50 degree Celsius safely. Such a high threshold greatly improves what's possible to accomplish with the unit and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply unit can take the heat.
Full Modular Cabling
MWE Gold V2 1250 comes with flat black cables that can be customized to each user's individual needs. The flat cable design also benefits the overall cable management and improves airflow. MWE Gold V2 1250 also provides enough connectors for the system with the latest motherboards and RTX graphics cards.
Strømstyring | |
Total effekt | 1250 W |
Vekselstrømsindgangsspænding | 90 - 264 V |
Vekselstrømsindgangsfrekvens | 47 - 63 Hz |
Indgangsstrøm | 7 - 15 A |
Strømkorrektionsfaktor (PFC) | Aktiv |
Kombineret effekt (+3,3 V) | 120 W |
Kombineret effekt (+12 V) | 1248 W |
Kombineret effekt (+5 V) | 120 W |
Kombineret effekt (-12V) | 3,6 W |
Kombineret effekt (+5 VSB) | 15 W |
Maks. udgangsstrøm (+3,3 V) | 20 A |
Maks. udgangsstrøm (+12 V) | 104 A |
Maks. udgangsstrøm (+5 V) | 20 A |
Maks. udgangsstrøm (-12V) | 0,3 A |
Maks. udgangsstrøm (+5 VSB) | 3 A |
Holdetid | 20 ms |
Effektivitet | 90% |
Godt signalstrøm forsinkelseshastighed | 100 - 150 ms |
Strømbeskyttelsesfunktioner | Overstrøm, Overstrøm, Højspænding, Overophedning, Kortslutning, Lavspænding |
Porte & Grænseflader | |
Motherboard, strømstik | 24-pin ATX |
Perifere (Molex) strømstik (4-pin) | 4 |
Længde på strømkabel på bundkort | 65 cm |
Antal SATA strømstik | 12 |
Strømkabellængde SATA | 500,620,740,860 mm |
Strømkabellængde Perifere (Molex) | 500,620,740,860 mm |
EPS strømstik (8-pin) | Ja |
EPS-strømstik (4 + 4-benet) | Ja |
PCI ekspres strømforbindelser (6+2 pin) | 8 |
Strømkabellængde PCI Express | 67 cm |
Kabeltype | Fuldt modulær |
Præstation | |
Formål | PC |
Strømforsyningenhed (PSU) formfaktor | ATX |
80 PLUS certificering | 80 PLUS Gold |
ATX-version | 2.52 |
Lejeteknologi | FDB |
Gennemsnitstid mellem fejl (MTBF) | 100000 t |
Certificering | ErP 2014 Lot 3, TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
Design | |
Produktfarve | Sort |
Kølingstype | Aktiv |
Ventilator diameter | 14 cm |
Antal blæsere | 1 blæser(e) |
Ventilatorhastighed | 0 - 2200 rpm |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Vægt & størrelser | |
Bredde | 150 mm |
Dybde | 180 mm |
Højde | 86 mm |
Vægt | 2,17 kg |
Emballeringsdata | |
Pakkebredde | 310 mm |
Pakkedybde | 197 mm |
Pakkehøjde | 122 mm |
Pakkevægt | 2,57 kg |
Logistik data | |
Hovedkasser pr. palle (udvendigt) | 24 stk |
Hovedkassens bredde (udvendigt) | 510 mm |
Hovedkassens længde (udvendigt) | 360 mm |
Hovedkassen højde (udvendigt) | 235 mm |
Harmoniseret systemkode (HS) | 84733020 |
Produkter pr. hovedkasse (udvendigt) | 4 stk |
Andre funktioner | |
EPS-kabellængde | 65 cm |
Støjniveau (stille funktion, 50%) | 15,8 dB |
Støjniveau (almindelig kørsel, 100%) | 30,1 dB |
