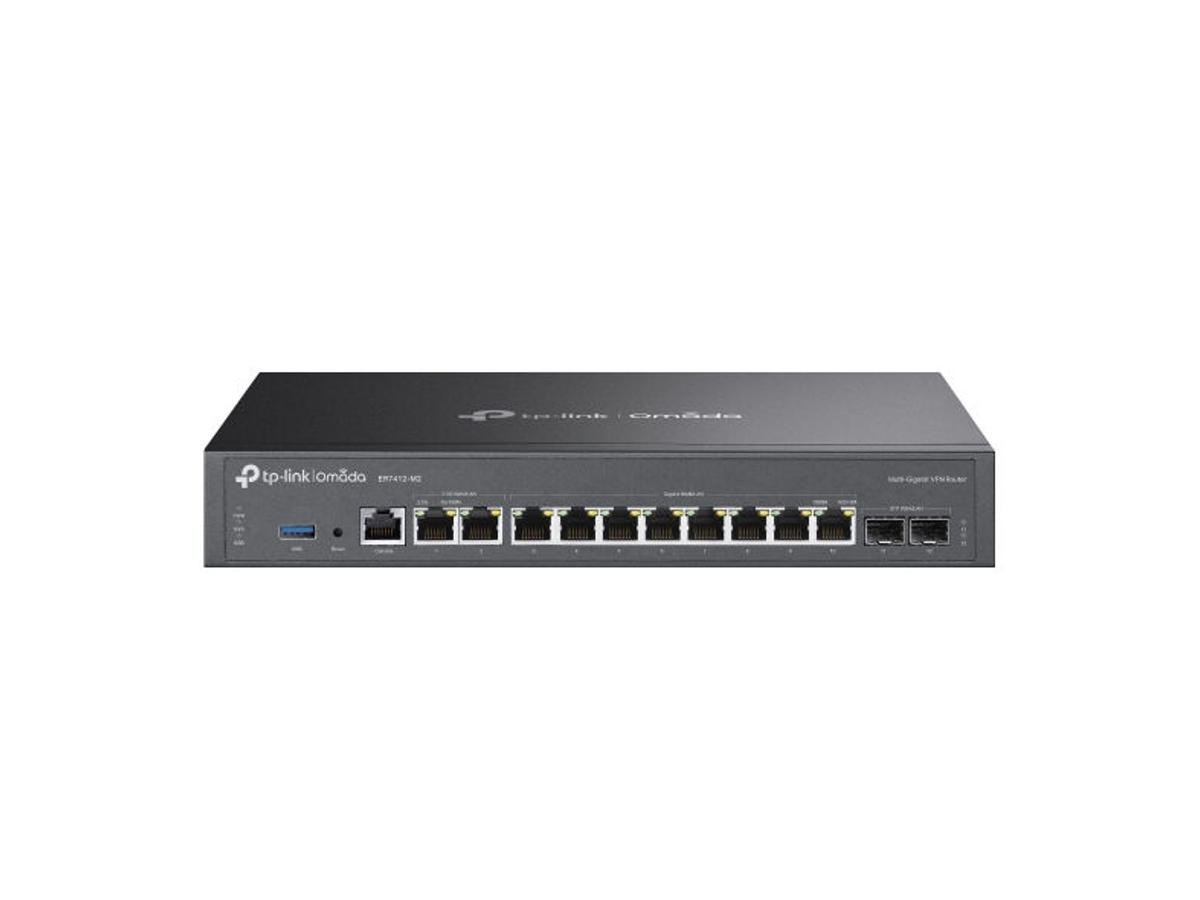

Omada Multi-Gigabit VPN Router
- 2× 2.5Gbps WAN/LAN RJ45 Ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- Load Balancing on up to 11 WAN Ports
- Quad-Core 2.0 GHz CPU
- Centralized Cloud Management
- SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Multi-Net DHCP
- DPI & IPS/IDS
Engineered for Dense Environments, Powered by
Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.
Up to 11 WAN Ports & One USB WAN for Mobile Broadband
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Abundant Security Features
DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).
IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. It is constantly protected via the built-in attack prevention signature database with 7000+ signature rules that can be updated regularly.
DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
WAN-forbindelse | |
Ethernet WAN | Ja |
DSL WAN | Ingen |
SIM-kort slot | Ingen |
3G/4G kompatibilitet USB-modem | Ja |
SFP WAN | Ja |
Netværk | |
Netværksstandarder | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Ethernet-grænsefladetype | 2.5 Gigabit Ethernet, Gigabit Ethernet |
Ethernet LAN-datahastigheder | 10,100,1000,2500 Mbit/s |
Statisk rute | Ja |
VLAN understøttelse | Ja |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Universal Plug and Play (UPnP) | Ja |
Knap til nulstilling | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 7 |
Antal WAN/Ethernet LAN-porte | 2 |
Antal SFP modulslots | 2 |
Antal konsolporte | 1 |
Antal USB-porte | 1 |
Protokoller | |
DHCP-server | Ja |
Understøttelse af DMZ | Ja |
Sikkerhed | |
Sikkerhedsalgoritmer | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512 |
URL-filtrering | Ja |
DoS angrebsforebyggelse | Ja |
ARP angrebsbeskyttelse | Ja |
ICMP angrebsbeskyttelse | Ja |
Adgangskontrolliste (ACL) | Ja |
Netværk adresse-oversættelse (NAT) | Ja |
Antal VPN-tunneler | 80 |
Godkendelser | |
Compliance-certifikater | CE, Federal Communications Commission (FCC) |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm, LAN (RJ-45) |
Hurtig start guide | Ja |
Funktioner | |
Flashhukommelse | 128 MB |
Intern hukommelse | 1024 MB |
Intern hukommelsestype | DDR4 |
Understøttede Windows-operativsystemer | Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
Understøttede Mac-operativsystemer | Ja |
Understøttede Linux-operativsystemer | Ja |
Design | |
Produktfarve | Sort |
Stativ-montering | Ja |
Strømstyring | |
Strømforbrug (maks.) | 18,5 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Vægt & størrelser | |
Bredde | 294 mm |
Dybde | 180 mm |
Højde | 44 mm |
