Feature-Rich. Built-in Value.
Next-gen 1U design loaded with features you need including outstanding performance, built-in value and new intuitive management tools.
- High-performance processing
- Next-gen design 1U rack server
- Double memory capacity of the previous generation
- Lenovo XCLarity for centralized, automated management with mobile option
Highlights
Accelerate infrastructure workloads with double the memory capacity and 16 percent more cores than the previous generation
Simplify server management with Lenovo XClarity
Gain superior performance with Intel Xeon E5-2600 v4 processors (up to 28 cores per server) and double the memory capacity of the previous generation
Reduce data center costs with smart energy-efficient features, 80 PLUS® Titanium power supplies (up to 96 percent), and optional Lenovo XClarity Energy Manager
Balanced Performance

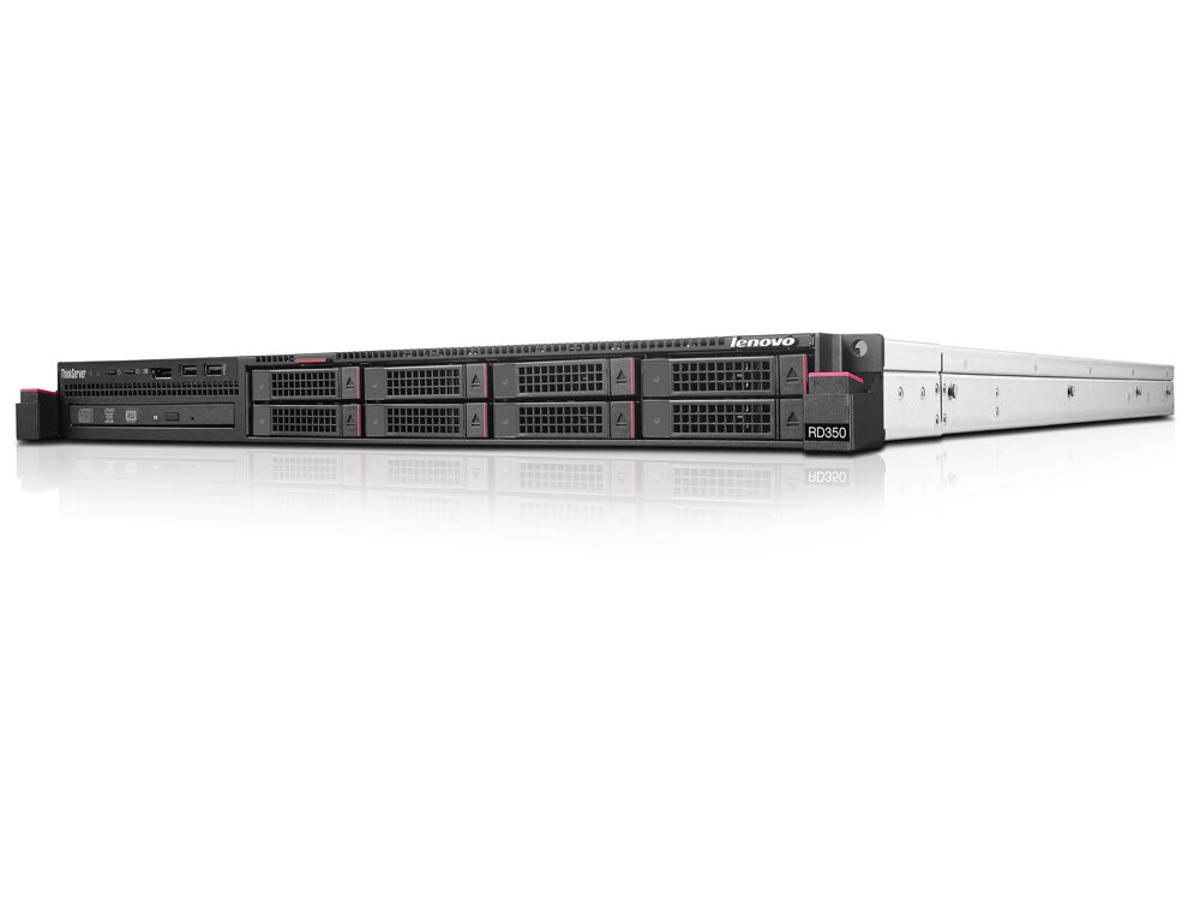

Lenovo ThinkServer RD350 is loaded with the features you need and nothing you don’t—all in a slim, 1U design. Up to two Intel® Xeon® processors E5-2600 v4 series give you outstanding performance for your workloads. With high reliability features such as hot-swap hard drives, embedded RAID and hot-swap and redundant power, you get peace of mind that your data is safe and your system available. This enterprise-class server has just the right amount of computing power for your infrastructure, collaboration and line-of-business applications.
Built-in Value
When you think of value in the server space, you expect a rich set of features for a great price. That's what you get with the ThinkServer RD350. Intel Xeon processors, along with DDR4 memory, provide performance advantages over the previous generations. With DDR4, you get up to a 50-percent boost in performance, and can see up to 50-percent power savings over previous-generation memory. You'll also find generous storage capacity with support for up to eight hot-swap hard drives. Enjoy enterprise-quality performance with the right built-in features in a scalable, 1U power-efficient solution—at a budget-friendly price.
Simplified Management
Centrally automate discovery, inventory tracking, real-time monitoring, fault detection, and alert handling over the lifecycle of your servers with Lenovo XClarity, a best-in-class enterprise management tool. A mobile option enables you to securely monitor your systems from Android and iOS devices.
Additionally, the ThinkServer RD350 offers a suite of intuitive administration utilities for configuration and deployment. Lenovo XClarity Energy Manager is available for optimizing your server power consumption.
Processor | |
Processorserie | Intel® Xeon® E5 v4, Intel Xeon E5-2600 v4 |
Processorproducent | Intel |
Processormodel | E5-2630V4 |
Processorfrekvens | 2,2 GHz |
Processor boost frekvens | 3,1 GHz |
Processorkerner | 10 |
Processor-cache | 25 MB |
Bundkort chipsæt | Intel C610 |
Hukommelseskanaler understøttet af processor | Quad |
Antal installerede processorer | 1 |
Thermal Design Power (TDP) | 85 W |
Processor cache type | Smart cache |
Systembus-hastighed | 8 GT/s |
Processor sokkel | LGA 2011-v3 |
Processor litografi | 14 nm |
Processortråde | 20 |
Processor driftstilstande | 64-bit |
Stepping | R0 |
Bus type | QPI |
Antal QPI-lins | 2 |
Processor kodenavn | Broadwell |
Tcase | 74 °C |
Maksimal intern hukommelse understøttet af processor | 1,54 TB |
Hukommelsestyper understøttet af processor | DDR4-SDRAM |
Hukommelsesurhastigheder understøttet af processor | 1600,1866,2133 MHz |
Hukommelsesbåndbredde understøttet af processor (maks.) | 68,3 GB/sek. |
Fejlkorrigerende kode understøttet af processor | Ja |
Udfør deaktivering af bit | Ja |
Idle status | Ja |
Termiske overvågningsteknologier | Ja |
Maksimalt antal PCI Express-kanaler | 40 |
Processor-pakke størrelse | 45 x 52.5 mm |
Understøttede instruktionssæt | AVX 2.0 |
Processor kode | SR2R7 |
Skalerbarhed | 2S |
Fysisk adresseudvidelse (PAE) | Ja |
Fysisk adresse udvidelse (PAE) | 46 Bit |
Indlejret tilgængelige muligheder | Ingen |
Konfliktfri processor | Ja |
Hukommelse | |
Intern hukommelse | 16 GB |
Intern hukommelsestype | DDR4-SDRAM |
Maksimal intern hukommelse | 512 GB |
Hukommelsesstik | 16 |
Fejlkorrigerende kode | Ja |
Hukommelsesur hastighed | 2133 MHz |
Hukommelseslayout (slots x størrelse) | 1 x 16 GB |
Lagring | |
Understøtter RAID | Ja |
Optisk drevtype | DVD±RW |
Antal understøttede HHD'er | 8 |
Understøttede HDD-størrelser | 2.5" |
RAID-niveauer | 0, 1, 5, 10, 50 |
Grafik | |
On-board grafikkort | Ja |
On-board grafikkort, model | Aspeed AST2400 |
Maksimal grafikadapterhukommelse | 16 MB |
Netværk | |
Ethernet LAN | Ja |
Kabelteknologi | 10/100/1000Base-T(X) |
Ethernet-grænsefladetype | Gigabit Ethernet |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
Antal USB 2.0-porte | 2 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
Antal VGA-porte (D-sub) | 2 |
Antal serielle porte | 1 |
Antal DisplayPorts | 1 |
Udvidelsessokler | |
PCI Ekspres x16 (Gen 3.x) slots | 3 |
PCI Express slots version | 3.0 |
Design | |
Kabinettype | Stativ (1U) |
Understøttelse af redundante blæsere | Ja |
Præstation | |
BIOS-type | UEFI |
Software | |
Operativsystem installeret | Ingen |
Kompatible operativsystemer | Microsoft Windows Server 2016/2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 Windows Small Business Server 2011. Red Hat Enterprise Linux 6.5/6.6/7. SUSE Linux Enterprise Server 11. VMware vSphere (ESXi) 5.1 P5/5.5 U2/6.0 |
Processor særlige funktioner | |
CPU-konfiguration (maks.) | 2 |
Enhanced Intel SpeedStep Teknologi | Ja |
Intel® Identity Protection Teknologi (Intel® IPT) | Ingen |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
Intel® Turbo Boost Teknologi | 2.0 |
Intel® Flex Memory Access | Ingen |
Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
Intel® Trusted Execution Teknologi | Ja |
Intel® Enhanced Halt State | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® Demand Based Switching | Ja |
Intel® Sikker Nøgle | Ja |
Intel® TSX-NI | Ja |
Intel® OS Guard | Ja |
Intel® 64 | Ja |
Intel® Identity Protection Technology version | 0,00 |
Intel® Secure Key Technology version | 1,00 |
Intel® Virtualization Technology (VT-x) | Ja |
Intel® TSX-NI-version | 1,00 |
Processor ARK ID | 92981 |
Strømstyring | |
Redundant strømforsyning | Ja |
Strømforsyning | 450 W |
Antal understøttede overflødige strømforsyninger | 2 |
Antal installerede strømforsyninger | 1 |
Antal af hovedstrømforsyninger | 1 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 10 - 35 °C |
Opbevaringstemperatur (T-T) | -10 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 8 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 8 - 90% |
Driftshøjde | 0 - 3048 m |
Vægt & størrelser | |
Bredde | 482 mm |
Dybde | 781,5 mm |
Højde | 43 mm |
Tekniske detaljer | |
Antal 2.5" bays | 8 |
