For compute-intensive workloads

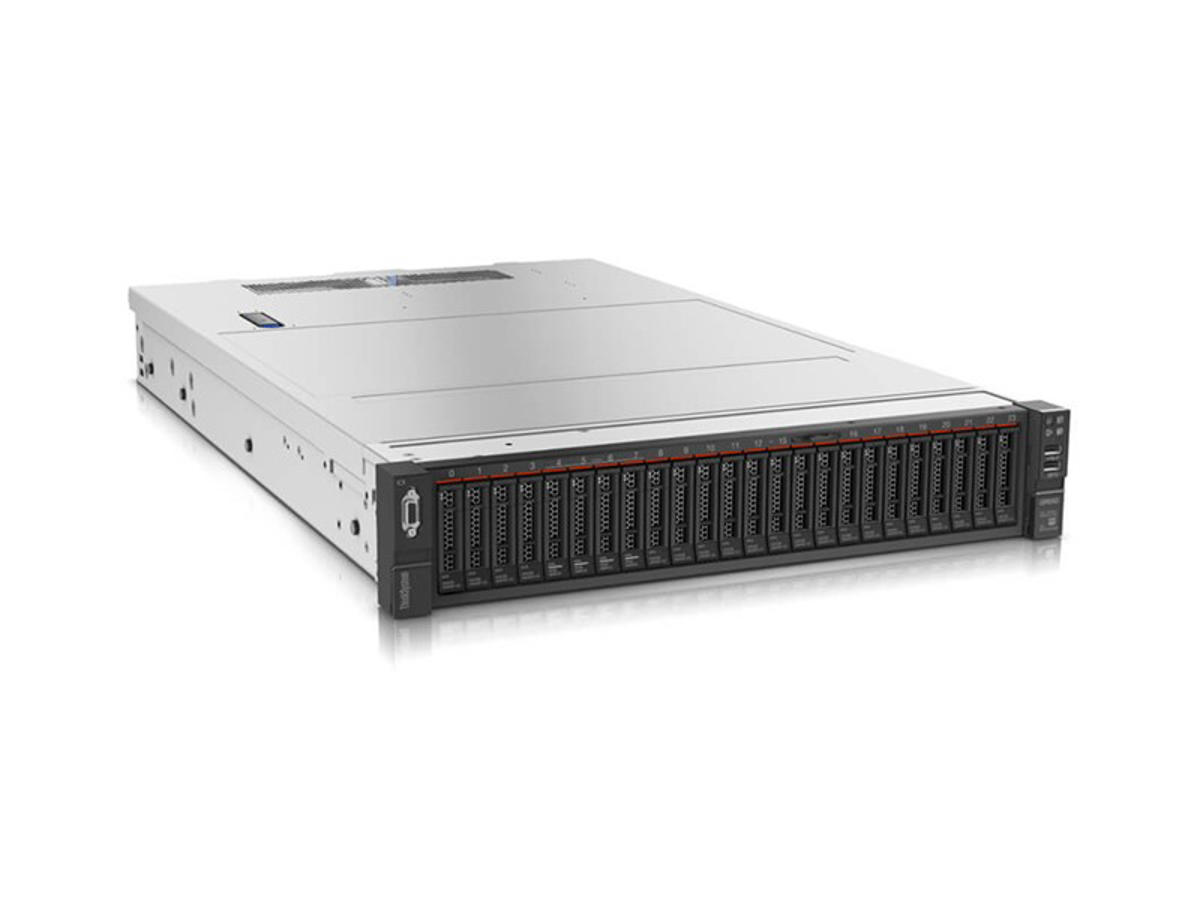

For medium to large enterprises, and managed and cloud service providers, Lenovo ThinkSystem SR650 is the optimum 2U, two-socket server—the most widely used server type worldwide. It’s engineered to deliver high performance with 205W CPUs, low-latency NVMe drives, and high-power GPUs.
With Lenovo’s history of reliability, the highly flexible and configurable SR650 is the ideal platform for hyperconverged infrastructure (HCI) or software-defined storage (SDS). It provides a solid foundation for: 1) transforming physical resources into services, using validated designs for hybrid cloud; 2) performing analytics on streaming data, using validated designs for Big Data; and 3) increasing productivity of virtualized transactional systems, using validated designs for OLTP databases.
Versatile and scalable
ThinkSystem SR650 incorporates up to two powerful Intel® Xeon® processor Scalable family CPUs, with 27 percent more cores and twice the memory capacity of the previous generation server*. It supports two 300W high-performance GPUs and ML2 NIC adapters with shared management. Unique Lenovo AnyBay technology provides the flexibility to mix-and-match SAS/SATA HDDs/SSDs and NVMe SSDs in the same drive bays. Four direct-connect NVMe ports on the motherboard provide ultra-fast read/writes with NVMe drives and reduce costs by eliminating PCIe switch adapters. Plus, storage can be tiered for greater application performance, to provide the most cost-effective solution. Optional mirrored M.2 drives ensure reliability and quick OS initialization. SR650 also features 80 PLUS Platinum and Titanium PSUs, as well as continuous operation at 45°C, to reduce energy costs.
Easily managed
Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates.
Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs.
Processor | |
Processorserie | Intel® Xeon Silver |
Processorproducent | Intel |
Processormodel | 4208 |
Processorfrekvens | 2,1 GHz |
Processorgeneration | Intel Xeon skalerbar 2. generation |
Processor boost frekvens | 3,2 GHz |
Processorkerner | 8 |
Processor-cache | 11 MB |
Antal installerede processorer | 1 |
Thermal Design Power (TDP) | 85 W |
Processor cache type | Smart cache |
Processor sokkel | LGA 3647 (Socket P) |
Processor litografi | 14 nm |
Processortråde | 16 |
Processor driftstilstande | 64-bit |
Processor kodenavn | Cascade Lake |
Tcase | 78 °C |
Maksimal intern hukommelse understøttet af processor | 1,02 TB |
Hukommelsestyper understøttet af processor | DDR4-SDRAM |
Hukommelsesurhastigheder understøttet af processor | 2400 MHz |
Udfør deaktivering af bit | Ja |
Maksimalt antal PCI Express-kanaler | 48 |
Processor-pakke størrelse | 76.0 x 56.5 mm |
Understøttede instruktionssæt | AVX-512 |
Skalerbarhed | 2S |
Indlejret tilgængelige muligheder | Ingen |
Hukommelse | |
Intern hukommelse | 16 GB |
Intern hukommelsestype | DDR4-SDRAM |
Hukommelsesstik | 24 |
Fejlkorrigerende kode | Ja |
Hukommelsesur hastighed | 2666 MHz |
Hukommelseslayout (slots x størrelse) | 1 x 16 GB |
Lagring | |
Understøtter RAID | Ingen |
Optisk drevtype | Ingen |
HDD-grænseflade | SATA, Serial Attached SCSI (SAS) |
HDD-størrelse | 2.5" |
Antal understøttede HHD'er | 8 |
Understøttede HDD-størrelser | 2.5" |
Understøtter hot-plug | Ja |
Hot-swap | Ja |
Grafik | |
On-board grafikkort | Ja |
On-board grafikkort, model | Ikke tilgængelig |
Netværk | |
Ethernet LAN | Ja |
Kabelteknologi | 10/100/1000Base-T(X) |
Porte & Grænseflader | |
Antal USB 2.0-porte | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
Udvidelsessokler | |
PCI-slots | 1 |
PCI Express slots version | 3.0 |
Design | |
Kabinettype | Stativ (2U) |
Stativ-montering | Ja |
Understøttelse af redundante blæsere | Ja |
Rack skinner | Ja |
Præstation | |
Målstyring | XClarity Enterprise |
Trusted Platform Module (TPM) | Ja |
Trusted Platform Module (TPM) version | 1.2 |
Software | |
Kompatible operativsystemer | Microsoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 7.3/6.9 SUSE Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3 |
Processor særlige funktioner | |
Enhanced Intel SpeedStep Teknologi | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
Intel® Turbo Boost Teknologi | 2.0 |
Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
Intel® Trusted Execution Teknologi | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® TSX-NI | Ja |
Intel® 64 | Ja |
Intel® Virtualization Technology (VT-x) | Ja |
Processor ARK ID | 193390 |
Strømstyring | |
Redundant strømforsyning | Ja |
Strømforsyning | 750 W |
Antal understøttede overflødige strømforsyninger | 2 |
Strømforsyningens indgangsfrekvens | 50 - 60 Hz |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 45 °C |
Opbevaringstemperatur (T-T) | -10 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 8 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 8 - 90% |
Driftshøjde | 0 - 3048 m |
Logistik data | |
Harmoniseret systemkode (HS) | 84714100 |
Bæredygtighed | |
Bæredygtighedscertifikater | ENERGY STAR |
Vægt & størrelser | |
Bredde | 445 mm |
Dybde | 720 mm |
Højde | 87 mm |
Andre funktioner | |
Konfliktfri | Ja |
