Expand commercial space with compact display

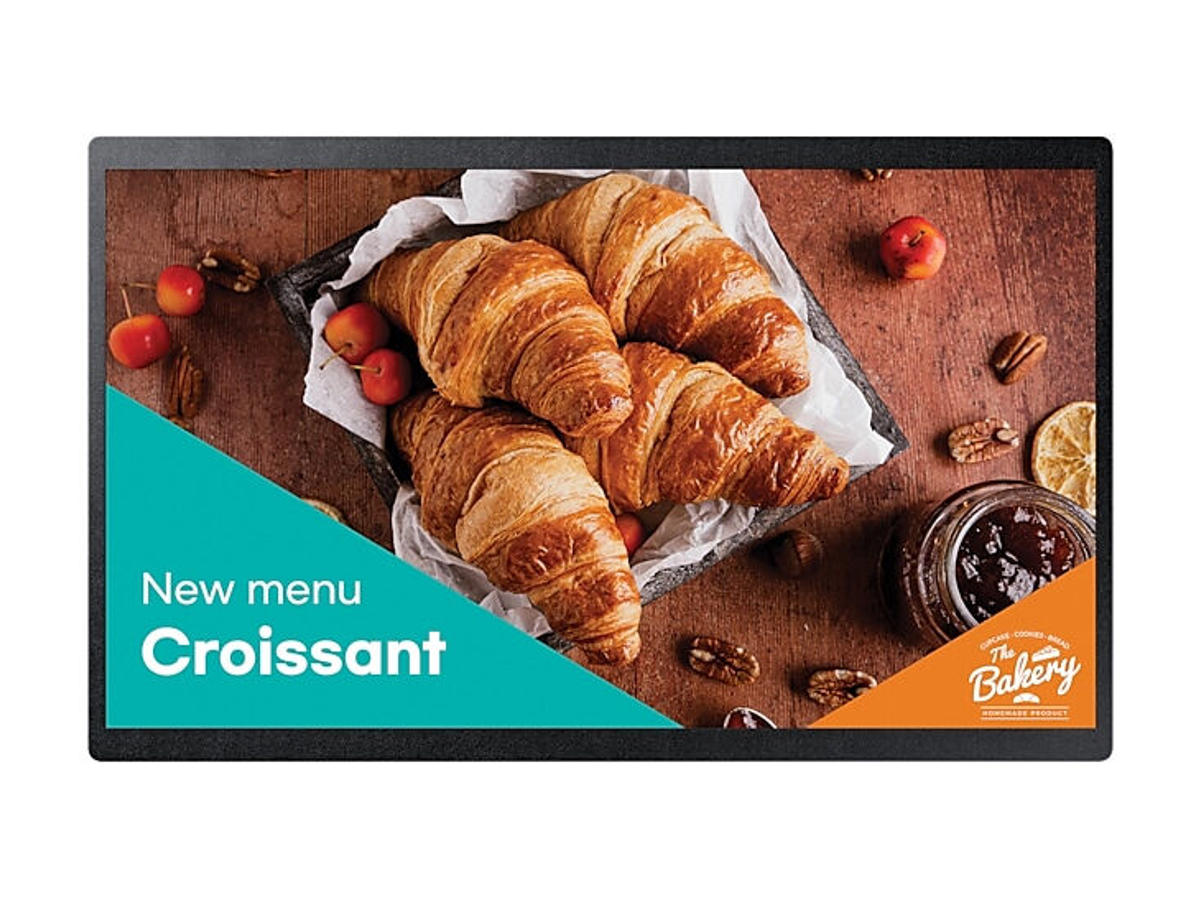

Get the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.
Hold sizable opportunities in small spaces
Compact Design
The compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.
Connect with convenience
Home UI
QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
IP5X / EMC Class B
QB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
Display | |
Skærm diagonal | 61 cm (24") |
Skærmteknologi | LED |
Skærmopløsning | 1920 x 1080 pixel |
Skærmens lysstyrke | 250 cd/m² |
HD-type | Fuld HD |
Berøringsskærm | Ingen |
Paneltype | ADS |
Responstid | 14 ms |
Kontrastforhold (typisk) | 1000:1 |
Dynamisk kontrastforhold marketing navn | Mega kontrast |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Pixel pitch | 0,2745 x 0,2745 mm |
Horisontal scanningsområde | 56 - 84,5 kHz |
Vertikalt scanningsområde | 48 - 75 Hz |
Tågehastighed | 25% |
RGB-farverum | NTSC |
Farveområde | 72% |
Porte & Grænseflader | |
Antal HDMI-porte | 1 |
DVI-port | Ingen |
USB-port | Ja |
Ethernet LAN | Ja |
Wi-Fi | Ja |
HDMI-version | 1.4 |
Antal HDMI-indgangsporte | 1 |
Antal USB-porte | 1 |
Ethernet LAN-porte (RJ-45) | 1 |
RS-232 grænseflade | Ja |
Infrarød dataport | Ja |
Fjernbetjening (IR) indgang | 1 |
Design | |
Produktdesign | Digital fladpaneldisplay |
Produktfarve | Sort |
VESA montering | Ja |
Skærm form | Flad |
Panel montering grænseflade | 100 x 100 mm |
Facet bredde (bund) | 1,79 cm |
Facet bredde (side) | 9,4 mm |
Facet bredde (øverste) | 1,79 cm |
Farve på ramme | Black |
Præstation | |
Formål | Universel |
Driftstimer (timer/dage) | 16/7 |
HDCP | Ja |
HDCP-version | 2.2 |
Strømstyring | |
Strømforbrug (typisk) | 38,5 W |
Strømforbrug (dvale) | 0,5 W |
Vekselstrømsindgangsspænding | 100-240 V |
Vekselstrømsindgangsfrekvens | 50-60 Hz |
Computersystem | |
Computersystem | Ja |
Indbygget processer | Ja |
Computersystem type | System på chip (SoC) |
Operativsystem installeret | Tizen |
Version af operativsystem | 7,0 |
Vægt & størrelser | |
Skærmbredde | 547,9 mm |
Skærm, dybde | 31,8 mm |
Skærm, højde | 334,4 mm |
Skærm, vægt | 3 kg |
Emballeringsdata | |
Pakkebredde | 620 mm |
Pakkedybde | 122 mm |
Pakkehøjde | 419 mm |
Pakkevolumen | 4100 cm³ |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 80% |
Godkendelser | |
Certificering | Class B |
Andre funktioner | |
Bluetooth | Ja |
Flashhukommelse | 8000 MB |
RS-232 indgangsporte | 1 |
RJ-45 indgangs-porte | 1 |
Tekniske detaljer | |
Lydudgang (mini jack) | 1 |
