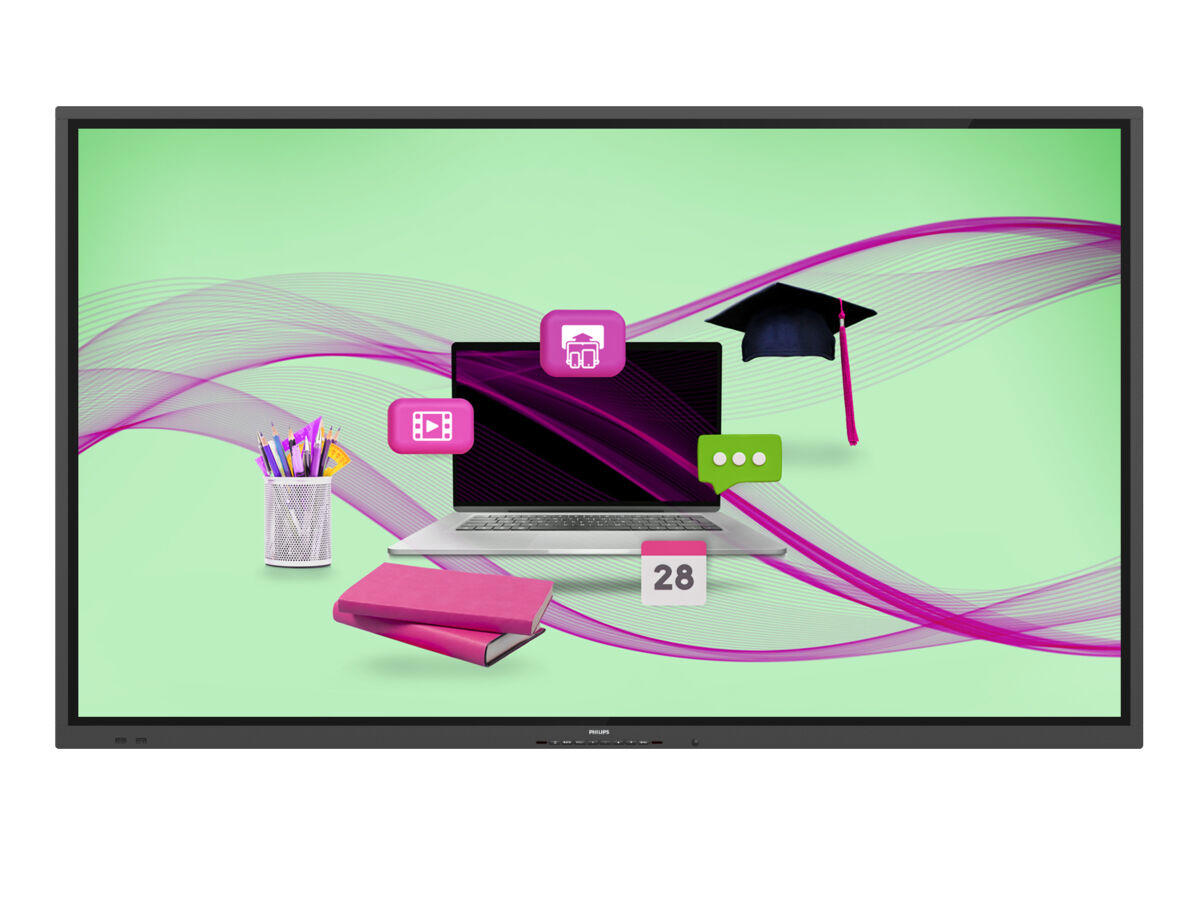

Interactive education display
Inspire collaboration. Maximise engagement. This top-spec Philips E-Line touch display is powered by Android and features enhanced educational software and programs compatibility, 20 touchpoints, and a toughened anti-glare glass.
OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
Multi-touch technology capable of 20 touchpoints
Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality, and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.
Whiteboard mode built-in
Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on screen can then be captured for easy printing or file sharing.
Wireless screen sharing & advanced collaboration
Display four feeds on the one screen. Wireless screen sharing allows you to connect multiple devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI interact dongles to cast directly to the screen without needing to connect to your secured/protected network.
Android: Run your own app or choose your favorite app to run
WIth Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.
Catch the Wave for revolutionary results
Unlock the power, versatility and intelligence inside your Philips E-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.
Display | |
Skærm diagonal | 165,1 cm (65") |
Skærmteknologi | LCD |
Skærmopløsning | 3840 x 2160 pixel |
Skærmens lysstyrke | 360 cd/m² |
HD-type | 4K Ultra HD |
Berøringsskærm | Ja |
Paneltype | ADS |
Berøringsskærm teknologi | Infrarød |
Antal simultane touchpunkter | 20 |
Naturligt aspektforhold | 16:9 |
Responstid | 8 ms |
Kontrastforhold (typisk) | 1200:1 |
Kontrastforhold (dynamisk) | 500000:1 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Vis antal farver | 1,07 milliarder farver |
Pixel pitch | 0,372 x 0,372 mm |
Skærm diagonal (metrisk) | 163,9 cm |
Oprindelig opdateringshastighed | 60 Hz |
Porte & Grænseflader | |
Antal HDMI-porte | 4 |
DVI-port | Ja |
USB-port | Ja |
Ethernet LAN | Ja |
Wi-Fi | Ja |
HDMI-version | 2.0 |
Antal HDMI-indgangsporte | 3 |
Antal HDMI-udgangsporte | 1 |
Antal DVI-D-porte | 1 |
Antal USB-porte | 9 |
USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
USB-stik type | USB Type-A, USB Type-B, USB Type-C |
USB strømforsyning | Ja |
USB strømforsyning op til | 65 W |
RS-232 grænseflade | Ja |
Infrarød dataport | Ja |
Indbygget kortlæser | Ja |
Kompatible hukommelseskort | MicroSD (TransFlash) |
OPS modul slot | Ja |
Lyd | |
Indbyggede højttaler(e) | Ja |
Antal indbyggede højttalere | 2 |
Udgangseffekt (RMS) | 30 W |
Design | |
Produktdesign | Digital fladpaneldisplay |
Produktfarve | Sort |
VESA montering | Ja |
Orientering | Vandret |
Panel montering grænseflade | 400 x 400 mm |
Facet bredde (bund) | 3,17 cm |
Facet bredde (side) | 1,78 cm |
Facet bredde (øverste) | 1,78 cm |
Antirefleksskærm | Ja |
Præstation | |
Formål | Uddannelse |
Skærmvisning (OSD) | Ja |
Driftstimer (timer/dage) | 18/7 |
Gennemsnitstid mellem fejl (MTBF) | 50000 t |
Strømstyring | |
Strømforbrug (typisk) | 170 W |
Strømforbrug (standby) | 0,5 W |
Strømforbrug (maks.) | 430 W |
Energieffektivitetsklasse (SDR) | G |
Vekselstrømsindgangsspænding | 100-240 V |
Vekselstrømsindgangsfrekvens | 50-60 Hz |
Computersystem | |
Computersystem | Ja |
Indbygget processer | Ja |
Intern hukommelse | 8 GB |
Intern lagerkapacitet | 32 GB |
Operativsystem installeret | Android 11 |
Vægt & størrelser | |
Skærmbredde | 1494,3 mm |
Skærm, dybde | 78,5 mm |
Skærm, højde | 883,2 mm |
Skærm, vægt | 44,3 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Batterier inkluderet | Ja |
Lyspen | Ja |
Kabler inkluderet | Vekselstrøm, DVI, HDMI, IR sensor, RS-232, USB Type-A til USB Type-B |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
Andre funktioner | |
Hurtig start guide | Ja |
Lydindgang | 1 |
Lydudgang | 1 |
Plug and play | Ja |
Tekniske detaljer | |
Processor | MTK 9970A |
