Ultra Stretch Signage,
32:9 Space-Fitting Wide Screen

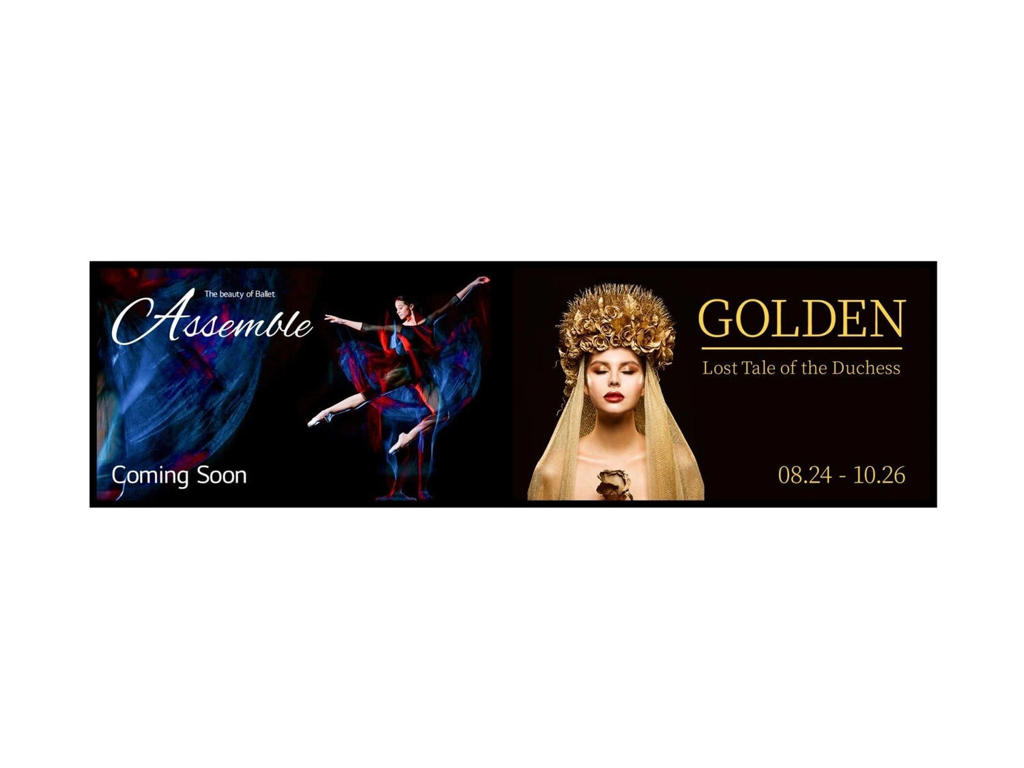

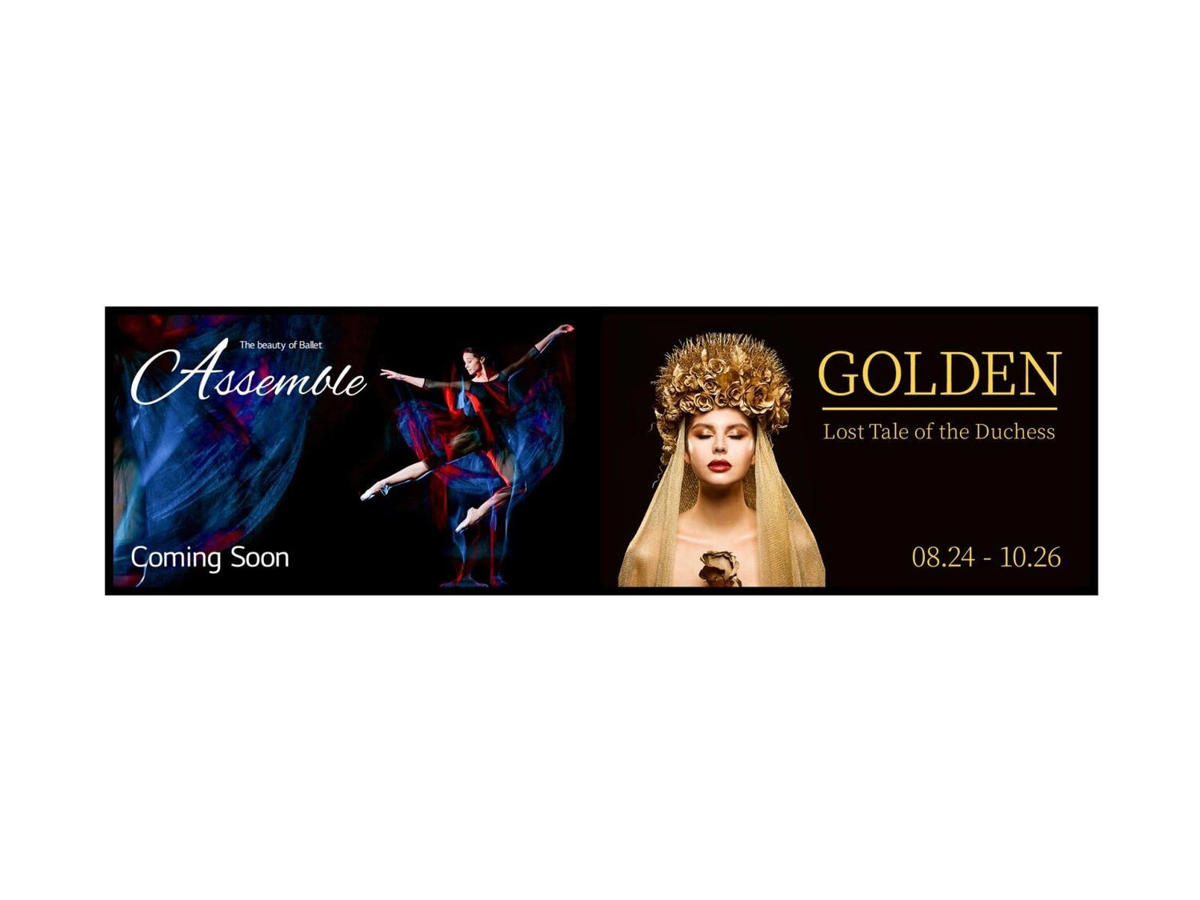

The 88BH7G is a suitable display for delivering new forms of advertising and multiplexed information in a 32:9 widescreen format that brings you a new experience, captivating customers' attention.
32:9 Extended Wide Format
It is a unique wide screen with 32:9 bar type which is twice as long as the previous 16:9 display, allowing more content and information to be shown on one screen.
High Picture Quality (3,840 × 1,080)
LG Ultra Stretch display, which is about half the size of a 98-inch UHD display, delivers vivid and clear colours.
Flexibility for Content Management
Thanks to its bar type format, it is optimized to show a vertical or horizontal object providing a memorable viewing experiences to the viewer.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful to deliver various advertisements or pieces of information at the same time without bezels among them.
User-friendly Menu
The Ultra Stretch display offers a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, menu can also be adjusted accordingly.
Tiled Scene with Immersive View
The 88BH7G can show a tiled scene by up to 15×15 configuration. It will be a good way to build a large screen or provide visual impacts to customers differently.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware for multiple displays at once.
Real-Time Monitoring with ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Display | |
Skærm diagonal | 2,24 m (88") |
Skærmteknologi | IPS |
Skærmopløsning | 3840 x 2160 pixel |
Skærmens lysstyrke | 700 cd/m² |
HD-type | 4K Ultra HD |
Berøringsskærm | Ingen |
Naturligt aspektforhold | 32:9 |
Responstid | 8 ms |
Kontrastforhold (typisk) | 1100:1 |
Kontrastforhold (dynamisk) | 500000:1 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Vis antal farver | 1,07 milliarder farver |
Tågehastighed | 3% |
Porte & Grænseflader | |
Antal HDMI-porte | 3 |
DVI-port | Ja |
Antal DisplayPorts | 1 |
USB-port | Ja |
Ethernet LAN | Ja |
Wi-Fi | Ingen |
Antal DVI-D-porte | 1 |
Antal USB-porte | 2 |
USB version | 2.0 |
Ethernet LAN-porte (RJ-45) | 1 |
Pc lydindgang | Ja |
RS-232C | Ja |
Fjernbetjening (IR) indgang | 1 |
Design | |
Produktdesign | Digital fladpaneldisplay |
Produktfarve | Sort |
Understøttet placering | Indendørs |
VESA montering | Ja |
Orientering | Horisontal/vertikal |
Panel montering grænseflade | 600 x 400 mm |
Facet bredde (bund) | 5,9 mm |
Facet bredde (side) | 4,4 mm |
Facet bredde (øverste) | 5,9 mm |
Præstation | |
Driftstimer (timer/dage) | 24/7 |
HDCP | Ja |
HDCP-version | 1.4/2.2 |
Gennemsnitstid mellem fejl (MTBF) | 50000 t |
Strømstyring | |
Strømforbrug (typisk) | 450 W |
Energieffektivitetsklasse (SDR) | G |
Energiforbrug (SDR) pr. 1000 timer | 303 kWh |
Vekselstrømsindgangsspænding | 100-240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Varmeafgivelse | 1808 BUT/t |
Energieffektivitetsskala | A til G |
Computersystem | |
Computersystem | Ingen |
Indbygget processer | Ingen |
Vægt & størrelser | |
Skærmbredde | 2158,3 mm |
Skærm, dybde | 84,8 mm |
Skærm, højde | 611,2 mm |
Skærm, vægt | 33,9 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, DisplayPort, RS-232 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 80% |
Godkendelser | |
Certificering | CB, NRTL, ErP, FCC "A" / CE / KC |
Logistik data | |
Harmoniseret systemkode (HS) | 85285210 |
