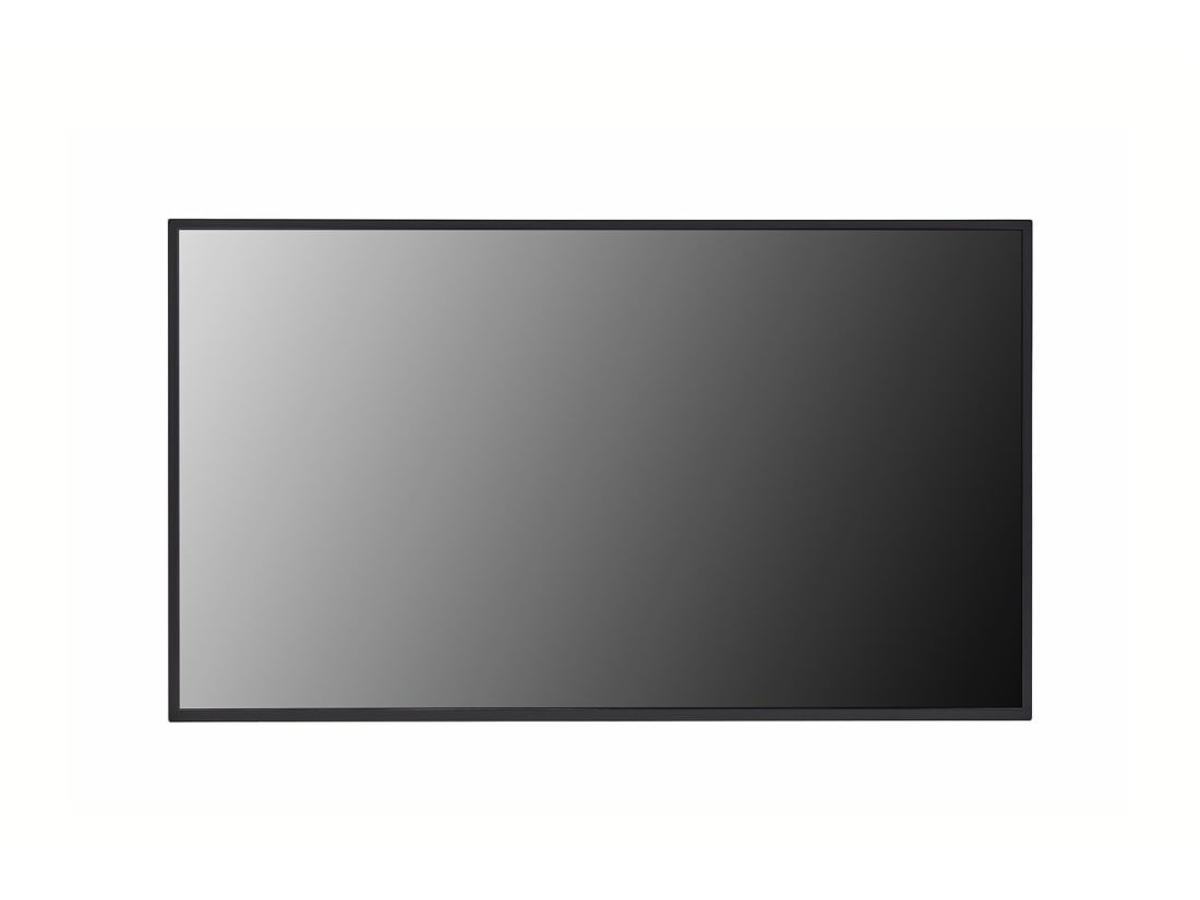

New In-Cell Touch Open Frame for Optimal Customization
Slim & Light
The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Clear Picture Quality
Compared to general touch products, TNF5J implements clear picture quality without milk effects caused by additional touch sensor film parts.
Design Flexibility
By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.
24hrs / 7days
TNF5J’s excellent durability allows for use in kiosks that require a full day of operation.
Wide Viewing Angle
IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
45-degree Tilt
(Face up) Installation Possible
When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.
10 Points of Multi-Touch
The TNF5J provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.
High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC and web engine, is available on TNF5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
Display | |
Skærm diagonal | 139,7 cm (55") |
Skærmteknologi | IPS |
Skærmopløsning | 3840 x 2160 pixel |
Skærmens lysstyrke | 450 cd/m² |
HD-type | UHD+ |
Berøringsskærm | Ja |
Responstid | 9 ms |
Kontrastforhold (typisk) | 1000:1 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Vis antal farver | 1,07 milliarder farver |
Farvemætning | 72% |
Tågehastighed | 3% |
Porte & Grænseflader | |
Antal HDMI-porte | 2 |
USB-port | Ja |
Ethernet LAN | Ja |
HDMI-version | 2.2 |
Antal HDMI-indgangsporte | 2 |
Antal USB-porte | 2 |
USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Ethernet LAN-porte (RJ-45) | 1 |
Lyd (L, R) udgang | 1 |
RS-232C | Ja |
Fjernbetjening (IR) indgang | 1 |
Design | |
Produktdesign | Digital fladpaneldisplay |
Produktfarve | Sort |
Understøttet placering | Indendørs |
VESA montering | Ja |
Orientering | Horisontal/vertikal |
Panel montering grænseflade | 300 x 300 mm |
Præstation | |
Skærmvisning (OSD) | Ja |
Antal OSD sprog | 20 |
OSD-sprog | Arabisk, Forenklet kinesisk, Traditionelt kinesisk, Tjekkisk, Dansk, Tysk, Hollandsk, Engelsk, Spansk, Finsk, Fransk, Græsk, Italiensk, Japansk, Koreansk, Norsk, Polsk, Portugisisk, Russisk, Svensk, Tyrkisk |
Driftstimer (timer/dage) | 24/7 |
HDCP | Ja |
HDCP-version | 1.4 |
Strømstyring | |
Strømforbrug (typisk) | 127 W |
Energiforbrug (SDR) pr. 1000 timer | 122 kWh |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Varmeafgivelse | 433 BUT/t |
Energieffektivitetsskala | A til G |
Computersystem | |
Intern hukommelse | 8 GB |
Vægt & størrelser | |
Bredde | 1231,8 mm |
Dybde | 39,2 mm |
Højde | 709,6 mm |
Vægt | 16,8 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, USB Type-A til USB Type-B |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 80% |
Godkendelser | |
Certificering | EMCFCC Class "A"/ CE / KC, ErP |
