See the unseen

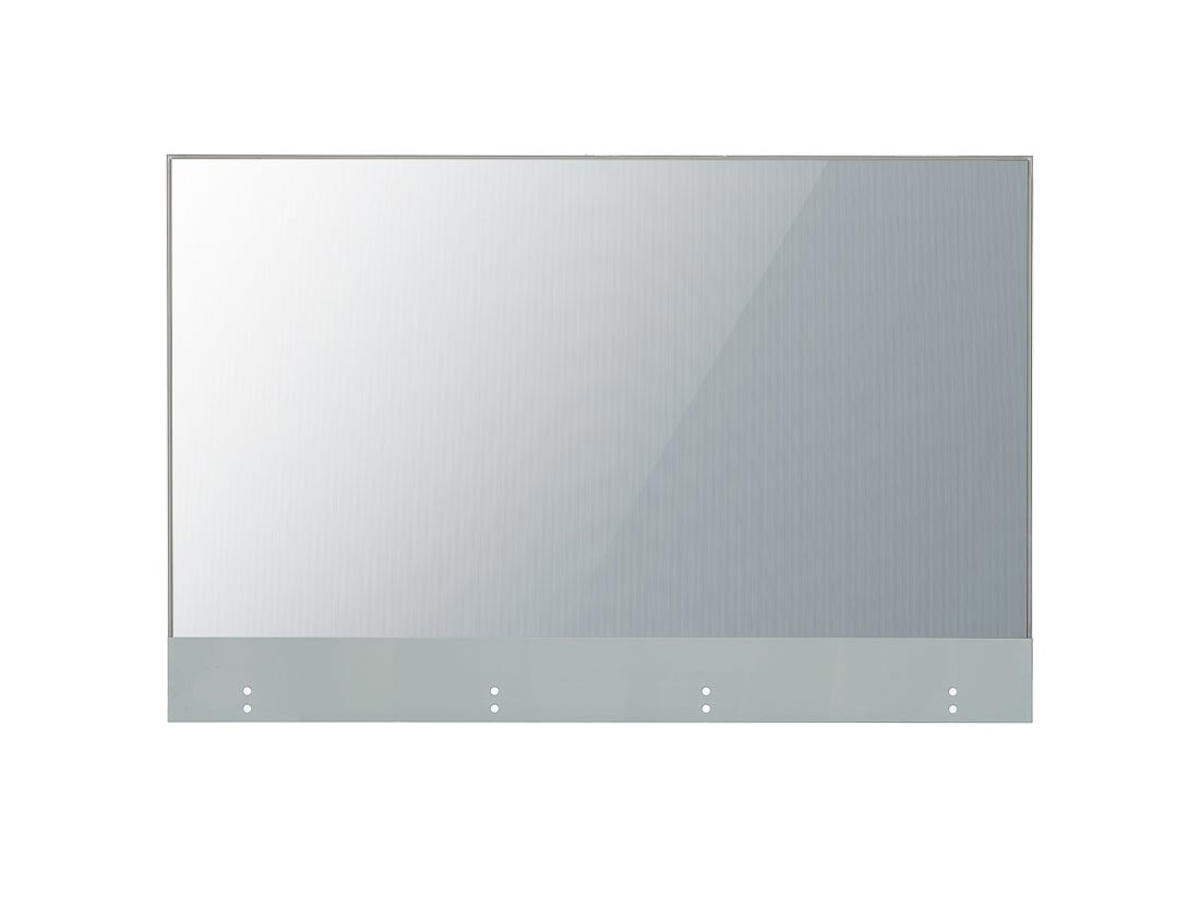

LG Transparent OLED
LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.
High Transparency
LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38%* much higher than conventional LCD transparent displays (10%**). While clearly showing objects behind the screen, it overlays the relevant information right before them.
Accurate and Vivid Colors
Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Protective Tempered Glass
Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.
Expandable Design
(2×N Tiling)
LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
Display | |
Skærm diagonal | 139,7 cm (55") |
Skærmteknologi | OLED |
Skærmopløsning | 1920 x 1080 pixel |
Skærmens lysstyrke | 400 cd/m² |
HD-type | Fuld HD |
Kontrastforhold (typisk) | 150000:1 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Vis antal farver | 1,07 milliarder farver |
Farvemætning | 120% |
Overfladehårdhed | Hard coating (2H) |
Porte & Grænseflader | |
Antal HDMI-porte | 1 |
Antal DisplayPorts | 1 |
USB-port | Ja |
Ethernet LAN | Ja |
HDMI-version | 1.4 |
Antal USB-porte | 2 |
USB version | 2.0 |
Ethernet LAN-porte (RJ-45) | 1 |
Lyd (L, R) udgang | 1 |
RS-232 grænseflade | Ja |
RS-232C | Ja |
Fjernbetjening (IR) indgang | 1 |
Fjernbetjening (IR) udgang | 1 |
Lyd | |
Indbyggede højttaler(e) | Ingen |
Design | |
Produktdesign | Digital fladpaneldisplay |
Produktfarve | Sort |
Understøttet placering | Indendørs |
VESA montering | Ingen |
Præstation | |
Driftstimer (timer/dage) | 18/7 |
Strømstyring | |
Strømforbrug (typisk) | 250 W |
Energieffektivitetsklasse (SDR) | A |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Varmeafgivelse | 853,03 BUT/t |
Vægt & størrelser | |
Skærmbredde | 12255 mm |
Skærm, dybde | 49 mm |
Skærm, højde | 8101 mm |
Skærm, vægt | 11,6 kg |
Base dybde | 3,47 cm |
Basishøjde | 2,38 m |
Basisvægt | 3,4 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, DisplayPort, LAN (RJ-45), RS-232 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 80% |
Logistik data | |
Harmoniseret systemkode (HS) | 85285210 |
Funktioner | |
Varmeafledning (maks.) | 955,39 BUT/t |
