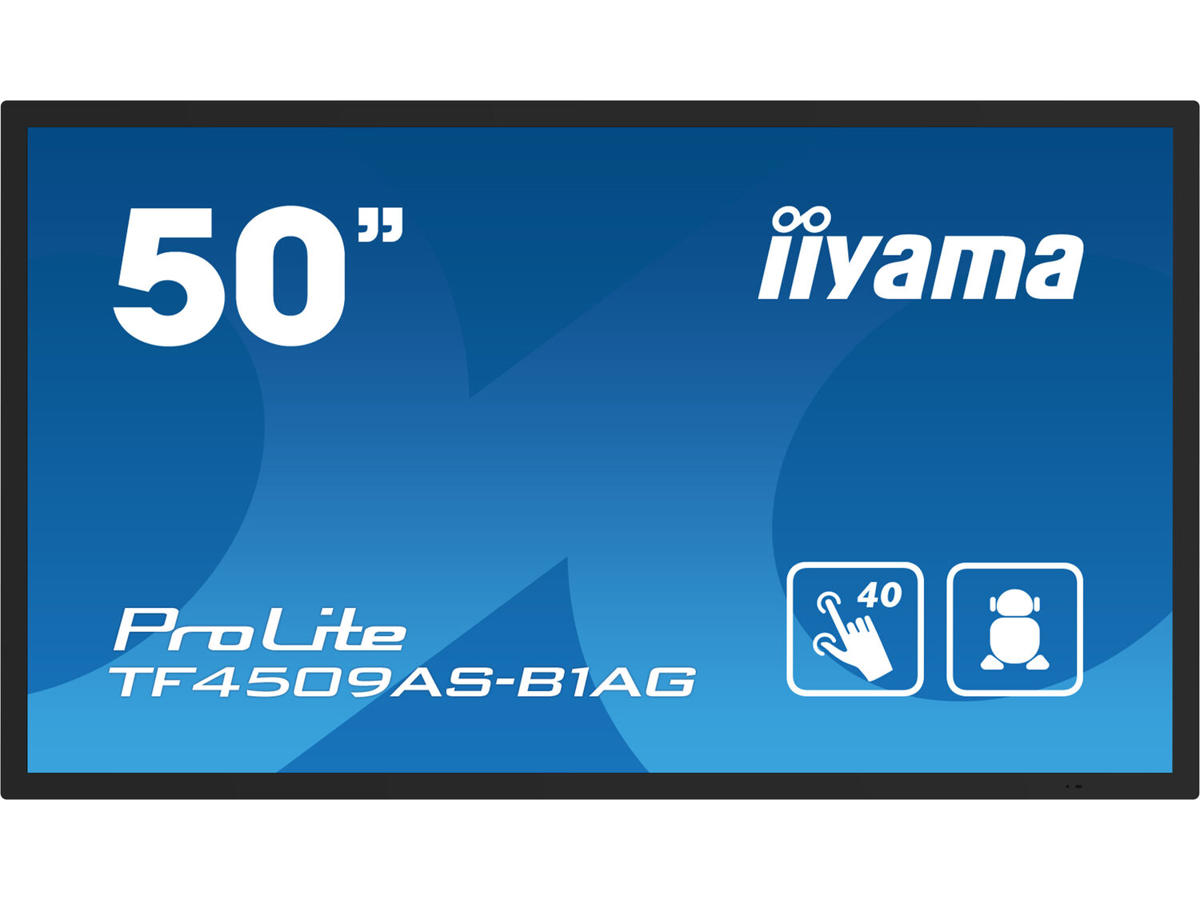

50" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.
The refined edge-to-edge glass design of the TF5039AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.
The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before.
For ease of integration, the TF5039AS-B1AG can be equipped with optional external mounting brackets (OMK4-2).
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.
Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Touch through-glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Display | |
Skærm diagonal | 125,7 cm (49.5") |
Skærmteknologi | LED |
Skærmopløsning | 3840 x 2160 pixel |
Skærmens lysstyrke | 500 cd/m² |
HD-type | 4K Ultra HD |
Berøringsskærm | Ja |
Paneltype | VA |
LED-baggrundsbelysning | Ja |
Antal simultane touchpunkter | 40 |
Multi-touch | Ja |
Naturligt aspektforhold | 16:9 |
Responstid | 9,5 ms |
Kontrastforhold (typisk) | 5000:1 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Vis antal farver | 1,07 milliarder farver |
Pixel pitch | 0,285 x 0,285 mm |
Aktiv skærmområde (B x H) | 1095,8 x 616,4 mm |
Skærm diagonal (metrisk) | 125,7 cm |
Horisontal scanningsområde | 28 - 160 kHz |
Oprindelig opdateringshastighed | 60 Hz |
Tågehastighed | 25% |
Overfladehårdhed | 3H |
Glas tykkelse | 3 mm |
Porte & Grænseflader | |
Antal HDMI-porte | 2 |
DVI-port | Ingen |
Antal DisplayPorts | 1 |
USB-port | Ja |
Ethernet LAN | Ja |
HDMI-version | 2.0 |
DisplayPort-version | 1.2 |
Antal USB-porte | 3 |
USB-stik type | USB Type-A, USB Type-B |
Antal USB 2.0 Type-B porte | 1 |
Ethernet LAN-porte (RJ-45) | 1 |
RS-232C | Ja |
Lyd | |
Indbyggede højttaler(e) | Ja |
Antal indbyggede højttalere | 2 |
Udgangseffekt (RMS) | 20 W |
Design | |
Produktdesign | Digital fladpaneldisplay |
Produktfarve | Sort |
Understøttet placering | Indendørs |
VESA montering | Ja |
Orientering | Horisontal/vertikal |
Skærm form | Flad |
Panel montering grænseflade | 400 x 400 mm |
Præstation | |
Formål | Universel |
Skærmvisning (OSD) | Ja |
Antal OSD sprog | 13 |
OSD-sprog | Tjekkisk, Dansk, Tysk, Hollandsk, Engelsk, Spansk, Finsk, Fransk, Italiensk, Polsk, Russisk, Slovensk |
Driftstimer (timer/dage) | 24/7 |
HDCP | Ja |
Kode for international beskyttelse (IP) | IP54 |
HDCP-version | 2.2 |
Gennemsnitstid mellem fejl (MTBF) | 50000 t |
Strømstyring | |
Strømforbrug (typisk) | 137 W |
Strømforbrug (standby) | 0,5 W |
Strømforbrug (slukket) | 0,3 W |
Energieffektivitetsklasse (SDR) | F |
Energiforbrug (SDR) pr. 1000 timer | 68 kWh |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Energieffektivitetsskala | A til G |
Computersystem | |
Computersystem | Ja |
Indbygget processer | Ja |
Processorproducent | ARM |
Processor arkitektur | ARM Cortex-A53+Cortex-A73 |
Intern hukommelse | 4 GB |
Intern lagerkapacitet | 32 GB |
Operativsystem installeret | Android |
Version af operativsystem | 11 |
Vægt & størrelser | |
Skærmbredde | 1149,4 mm |
Skærm, dybde | 64 mm |
Skærm, højde | 670 mm |
Skærm, vægt | 28,6 kg |
Emballeringsdata | |
Pakkebredde | 1297 mm |
Pakkedybde | 174 mm |
Pakkehøjde | 798 mm |
Pakkevolumen | 35900 cm³ |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Batterier inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, DisplayPort, HDMI, USB |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Godkendelser | |
Certificering | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
