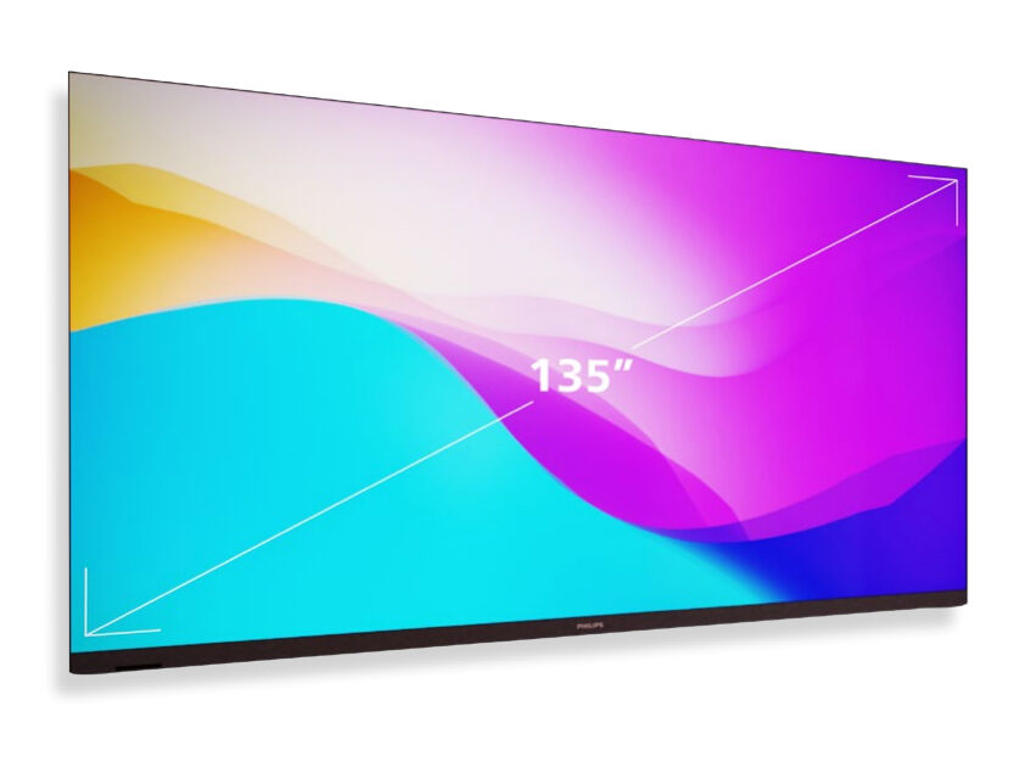

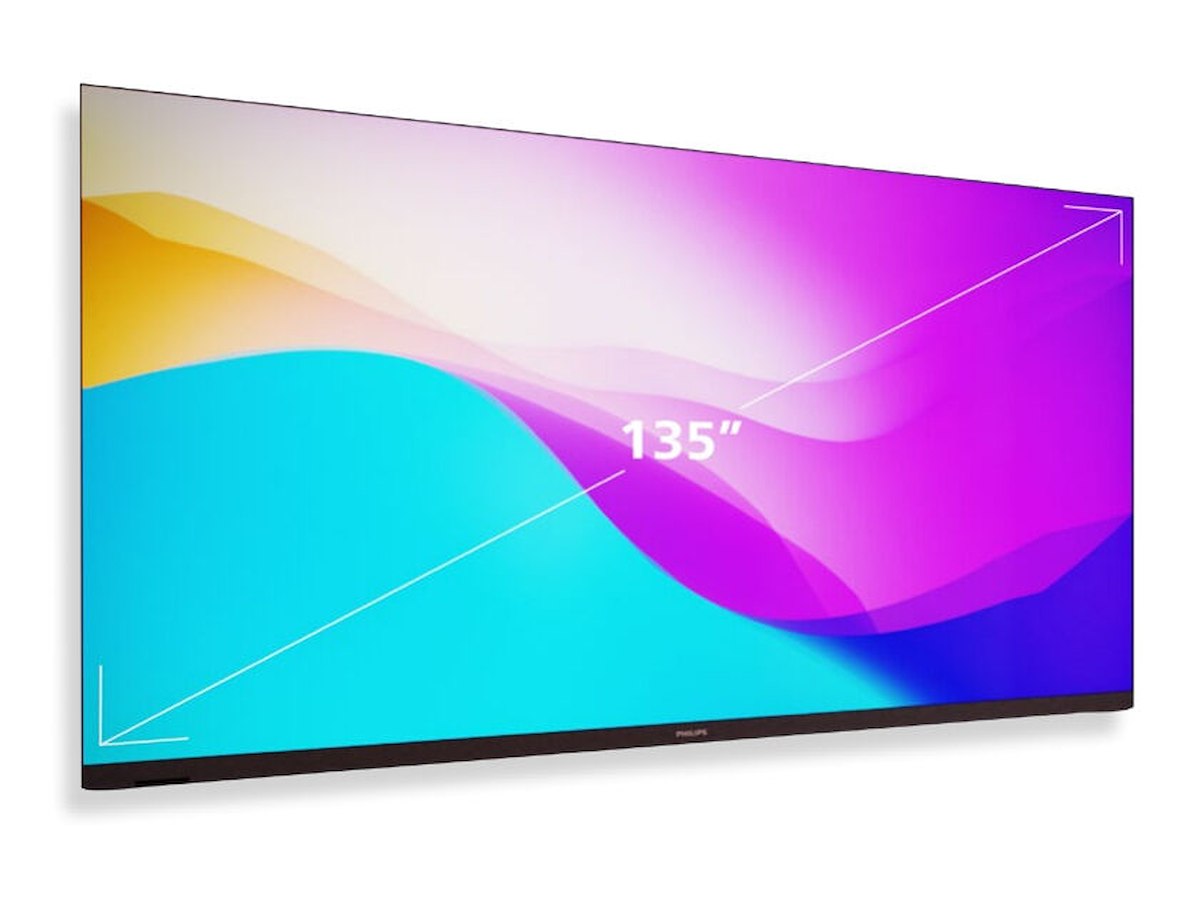

Philips Unite LED All-in-One LED display 5000 series is designed to engage your audience and delight customers. Perfect viewing experience for all your presentations with vivid colors and deep black contrast makes this display the reliable solution for any meeting rooms, auditorium in corporate or education environments. The Philips Unite LED 5000 is conveniently packaged in one box, with preinstalled and preconfigured modules. No hassle with complex wiring or configuration. It combines convenience, energy efficiency, and superb image quality.
Colour accuracy and contrast
The Philips Unite All-in-One LED displays provide high colour accuracy and a brightness uniformity of
about 97%. The COB Flip Chip LED’s with Matrix technology ensure the deepest black contrast and
most vivid colors.
Energy efficient
The display is energy efficient and is still able to perform up to 600 nit brightness after calibration.
Switch the screen easily to stand by mode and power consumption will be lowered to less than 0.5 Watt. With this low power consumption, the display is still able to start up fast when it is switched on with the included remote control.
Simplified installation
Simplified for fast setup, it has never been easier to install a display to wall mount or on optional
trolley within one and half hours with 2 people. Just mount the 5 brackets to the wall and hang the 5
columns on it. Then fix the bottom bar with stereo audio built in and preset cabling.
Everything in one
The display comes in one box including wall mount brackets. Everything has been pre-configured;
columns are pre-wired and MMR back box and bottom bar are fast to connect to the columns. No
hassle with complex wiring or configuration. Edge finishing trim, control system, stereo audio, built
in wiring. Few cables to connect on the back and ready to run in few steps. Simple.
Powered by Android
The user interface can be controlled with a normal remote control as your TV at home. Input source selection, volume- brightness- or contrast are easy to control from your hands. Reliable Android 11
system built in to run apps on a fast integrated SoC (System on chip) platform. Optimised for native
Android apps, it enables you to install web apps and software directly onto the display, eliminating the
need for an external media player.
PPDS Wave
Unlock the power, versatility and intelligence inside Philips Unite LED All-in-One LED display remotely
with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and
setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power
schedules. Saves you time, energy and environmental impact.
Display | |
Skærm diagonal | 3,43 m (135") |
Skærmteknologi | LED |
Skærmopløsning | 1920 x 1080 pixel |
Skærmens lysstyrke | 600 cd/m² |
HD-type | Fuld HD |
Berøringsskærm | Ingen |
LED-baggrundsbelysning | Ja |
LED-baggrundsbelysning type | Direct-LED |
Naturligt aspektforhold | 16:9 |
Kontrastforhold (typisk) | 8000:1 |
Synsvinkel, horisontal | 160° |
Synsvinkel, vertikal | 160° |
Pixel pitch | 1,5 x 1,5 mm |
Aktiv skærmområde (B x H) | 3015 x 1765 mm |
Panel levetid | 100000 t |
Oprindelig opdateringshastighed | 60 Hz |
Porte & Grænseflader | |
Antal HDMI-porte | 2 |
DVI-port | Ja |
USB-port | Ja |
Ethernet LAN | Ja |
Wi-Fi | Ingen |
HDMI-version | 2.0 |
Antal HDMI-indgangsporte | 2 |
Antal DVI-I-porte | 1 |
DisplayPorts indgang | 1 |
DisplayPorts udgang | 1 |
Antal USB-porte | 1 |
Ethernet LAN-porte (RJ-45) | 1 |
RS-232 grænseflade | Ja |
Fjernbetjening (IR) indgang | 1 |
Lyd | |
Indbyggede højttaler(e) | Ja |
Antal indbyggede højttalere | 2 |
Udgangseffekt (RMS) | 20 W |
Design | |
Produktdesign | Digital fladpaneldisplay |
Produktfarve | Sort |
Understøttet placering | Indendørs |
Orientering | Vandret |
Skærm form | Flad |
Præstation | |
Formål | Universel |
Kode for international beskyttelse (IP) | IP30 |
Strømstyring | |
Strømforbrug (typisk) | 760 W |
Strømforbrug (maks.) | 2260 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Computersystem | |
Indbygget processer | Ja |
Processor arkitektur | ARM Cortex-A53+Cortex-A72 |
Intern hukommelse | 4 GB |
On-board grafikkort, model | ARM Mali-T860 MP4 |
Intern lagerkapacitet | 32 GB |
Operativsystem installeret | Android 11 |
Vægt & størrelser | |
Skærmbredde | 600 mm |
Skærm, vægt | 190 kg |
Emballeringsdata | |
Pakkebredde | 1830 mm |
Pakkedybde | 780 mm |
Pakkehøjde | 1050 mm |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Batterier inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, RS-232 |
Monteringssæt | Ja |
Godkendelser | |
Certificering | CE, FCC Part 15 EMC Class-A EN 55032,EN 55035 EN IEC 61000-3-2 EN 61000-3-3 Class-A, LVD: EN 62368-1 ETL: UL 62368-1 |
Funktioner | |
Kan monteres på væggen | Ja |
