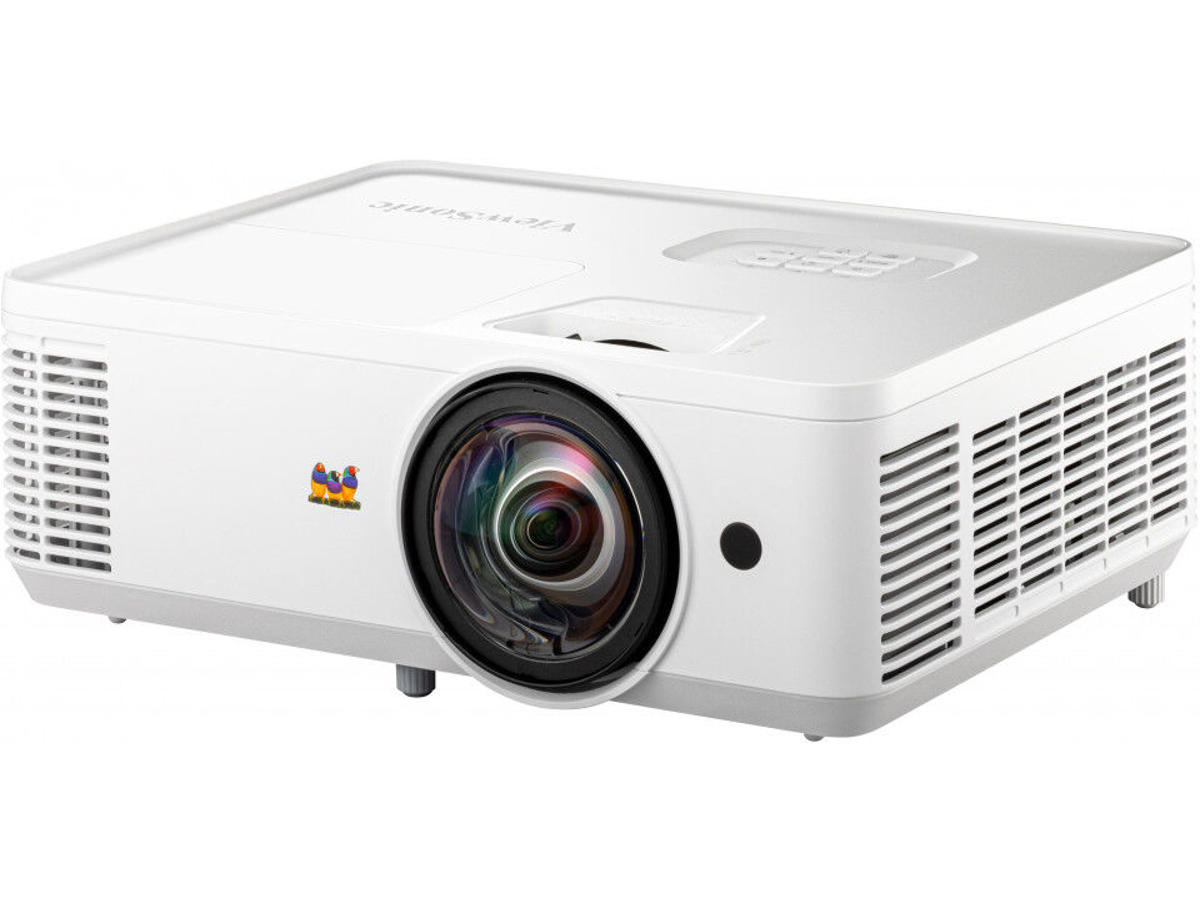

The PS502X is ViewSonic’s high brightness XGA short throw business/education projector. Boasting 4,000 ANSILumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms,classrooms, or any other bright environment. With 0.616 short throw ratio, the projector can provide 100”large screen size from only 1.3m away without being obstructed by shadows, allowing for a large screen even in smallspaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between contentsources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming moreconvenient. The projector also allows software updates via USB cable connection with simply your laptops,skipping trips to service centers.
High Brightness for Business & Education Environments
Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
Projektør | |
Projektor lysstyrke | 4000 ANSI lumens |
Projektor indbygget opløsning | XGA (1024x768) |
Kontrastforhold (typisk) | 15000:1 |
Smart projektor | Ingen |
Skærmstørrelse kompatibilitet | 1524 - 7620 mm (60 - 300") |
Projiceringsafstand | 0,75 - 3,76 m |
Antal farver | 1,07 milliarder farver |
Horisontal scanningsområde | 15 - 102 kHz |
Vertikalt scanningsområde | 23 - 120 Hz |
Trapezkorrektion, vertikal | -19 - 19° |
Lyskilde | |
Lyskilde type | Lampe |
Levetid for lyskilde | 4000 t |
Levetid for lyskilde (økonomisk tilstand) | 12000 t |
Lampe type | UHP |
Lampeeffekt | 240 W |
Antal lamper | 1 Lampe( r) |
Linsesystem | |
Fokus | Vejledning |
Fast brændvidde | 7,15 mm |
F-number (relativ aperture) | 2,7 |
Zoom kapacitet | Ja |
Digital zoom | 2x |
Throw-forhold | 0.616 |
Forskydning | 115% |
Video | |
Format til analogt signal | NTSC, PAL, SECAM |
Full HD | Ja |
3D | Ingen |
Understøttede grafikopløsninger | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
Understøttede videotilstande | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Porte & Grænseflader | |
Antal VGA-porte (D-sub) | 2 |
Antal HDMI-porte | 2 |
DVI-port | Ingen |
Antal USB 2.0-porte | 1 |
Seriel grænsefladetype | RS-232 |
HDMI- stiktype | Fuld størrelse |
HDMI-version | 1.4 |
Serviceporttype | USB Type-A |
Antal USB 2.0 type-A-porte | 1 |
Pc lydindgang | Ja |
PC-lydudgang | Ja |
Indgang til pc'en (D-Sub) | Ja |
AC (strøm) indgang | Ja |
Netværk | |
Smart TV | Ingen |
Ethernet LAN | Ingen |
Wi-Fi | Ingen |
Lagring | |
Indbygget kortlæser | Ingen |
Funktioner | |
Støjniveau | 34 dB |
Interaktiv | Ingen |
Støjniveau (økonomisk tilstand) | 25 dB |
HDCP | Ja |
Skærmvisning (OSD) | Ja |
OSD-sprog | Arabisk, Forenklet kinesisk, Traditionelt kinesisk, Tjekkisk, Tysk, Hollandsk, Engelsk, Spansk, Finsk, Fransk, Græsk, Ungarsk, Indonesisk, Italiensk, Koreansk, Polsk, Portugisisk, Russisk, Thai, Tyrkisk, Vietnamesisk |
Antal OSD sprog | 22 |
HDCP-version | 1.4 |
Luftfilter | Ja |
Multimedie | |
Indbyggede højttaler(e) | Ja |
Udgangseffekt (RMS) | 16 W |
Design | |
Produkttype | Projektor med kort projiceringsafstand |
Markedspositionering | Uddannelse |
Produktfarve | Hvid |
LED-indikatorer | Ja |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Display | |
Indbygget skærm | Ingen |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforbrug (typisk) | 295 W |
Strømforbrug (standby) | 0,5 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Vægt & størrelser | |
Vægt | 2,87 kg |
Bredde | 309 mm |
Dybde | 234 mm |
Højde | 115 mm |
Pakkebredde | 400 mm |
Pakkedybde | 337 mm |
Pakkehøjde | 168 mm |
Pakkevægt | 4,08 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Fjernbetjeningstype | IR |
Kabler inkluderet | Vekselstrøm, VGA |
Hurtig start guide | Ja |
Garantibevis | Ja |
Tekniske detaljer | |
Billedforsinkelsestid | 33,2 ms |
