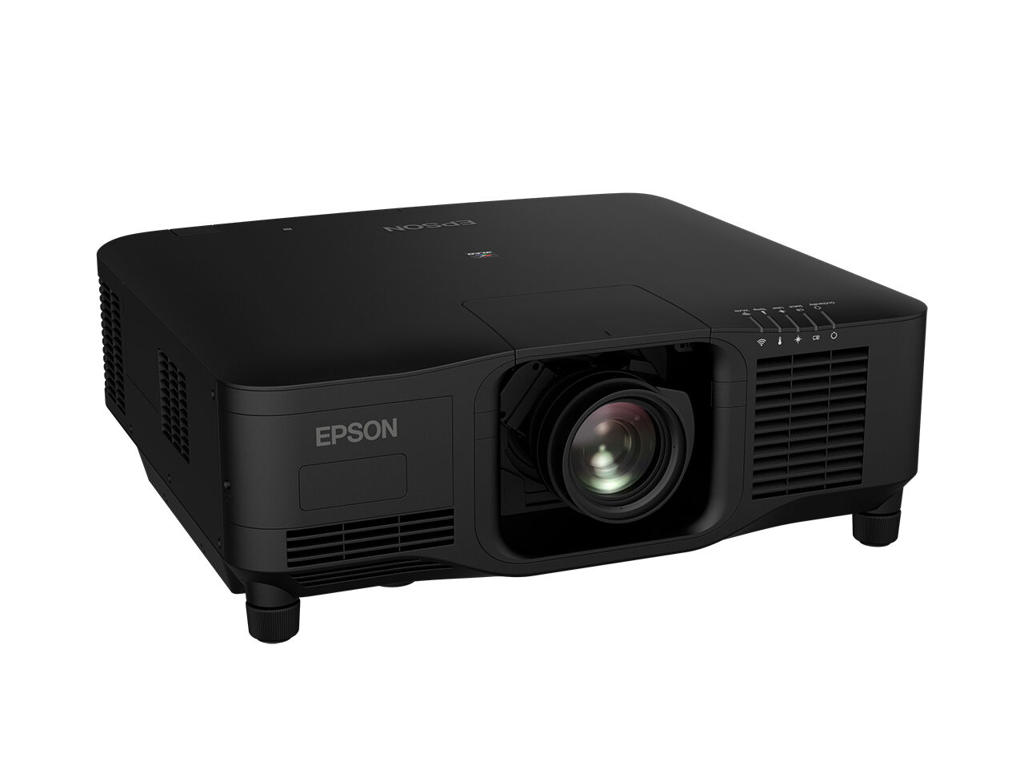

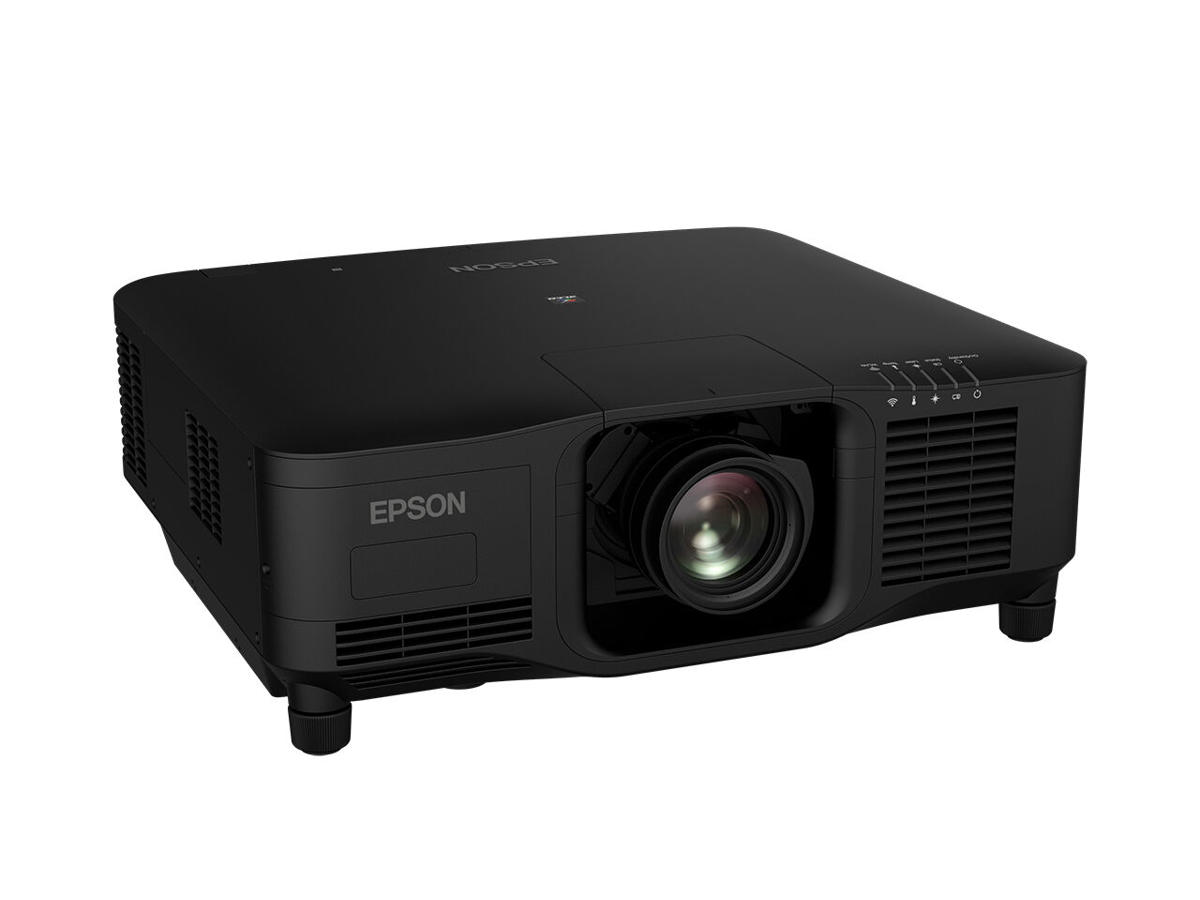

16,000lm laser projector
The EB-PU2216B offers users significant advantages including much reduced size and weight, easier installation and set-up, simplified maintenance and great image quality. This ultra-lightweight, compact laser projector has been designed for use in large auditoriums, live events, concerts, conference rooms where it delivers high-impact immersive experiences.
Compact and lightweight
The reduced weight and size means the projector is easier to store, transport and install, saving on warehouse space as well as labour and delivery costs.
Outstanding image quality
This high lumens, 3LCD projector offers WUXGA resolution with 4K enhancement and HDR for rich textures and sharper images.
Flexibility
The EB-PU2216B's functionality enables simple installation, stacking, lens flexibility and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.
Reliability
Includes improved dustproofing as the hermetically sealed optical engine, and laser light source unit, prevent dust contamination to ensure enhanced durability.
Projektør | |
Projektor lysstyrke | 16000 ANSI lumens |
Projektionsteknologi | 3LCD |
Projektor indbygget opløsning | WUXGA (1920x1200) |
Kontrastforhold (typisk) | 2000:1 |
Naturligt aspektforhold | 16:10 |
Skærmstørrelse kompatibilitet | 1524 - 25400 mm (60 - 1000") |
Kontrastforhold (dynamisk) | 2500000:1 |
Antal farver | 1,07 milliarder farver |
Projektor lysstyrke (økonomisk tilstand) | 11200 ANSI lumens |
Matrix størrelse | 2,62 cm (1.03") |
Hvidt lysudbytte | 16000 ANSI lumens |
Farve lysudbytte | 16000 ANSI lumens |
Varmeafgivelse | 3682 BUT/t |
Lyskilde | |
Lyskilde type | Laser |
Levetid for lyskilde | 20000 t |
Levetid for lyskilde (økonomisk tilstand) | 30000 t |
Linsesystem | |
Brændviddeområde | varies by lens |
Zoom kapacitet | Ja |
Zoom type | Automatisk |
Zoomforhold | 1.6:1 |
Throw-forhold | 0.35 - 7.41:1 |
Horisontalt område for optisk linseforskydning | 0 - 18% |
Vandret område for optisk linseforskydning | -60 - 60% |
Positionshukommelse for objektiv | 10 |
Udskifteligt objektiv | Ja |
Video | |
Full HD | Ja |
Videobehandling | 10 Bit |
Farvetilstande for video | Biograf, Dynamisk, Naturlig, Præsentation, DICOM-simuleringstilstand, Multi-projection, BT.709 |
Porte & Grænseflader | |
Antal VGA-porte (D-sub) | 1 |
Antal HDMI-porte | 1 |
DVI-port | Ja |
Antal USB 2.0-porte | 3 |
Seriel grænsefladetype | RS-232C |
HDBaseT-port | Ja |
Serviceporttype | USB Type-B |
Antal USB 2.0 type-A-porte | 2 |
Antal USB 2.0 Type-B porte | 1 |
AC (strøm) indgang | Ja |
Netværk | |
Ethernet LAN | Ja |
Wi-Fi | Ingen |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Funktioner | |
Støjniveau | 38 dB |
Støjniveau (økonomisk tilstand) | 34 dB |
Forudindstillede funktioner | Biograf, Dynamisk |
Oprindelsesland | Kina |
4K Ultra HD-opskalering | Ja |
Beskyttelse af adgangskode | Ja |
Design | |
Produkttype | Standard kasteprojektor |
Produktfarve | Sort |
Placering | Loft, Desktop, Flying frame |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforbrug (typisk) | 1083 W |
Strømforbrug (standby) | 0,4 W |
Strømforbrug (økonomi tilstand) | 773 W |
Vekselstrømsindgangsspænding | 200-240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Software | |
Softwaresupport | via: AMX, Crestron (Network), Extron |
Driftsbetingelser | |
Opbevaringstemperatur (T-T) | -10 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Vægt & størrelser | |
Vægt | 24,2 kg |
Bredde | 586 mm |
Dybde | 492 mm |
Højde | 218 mm |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Batterier inkluderet | Ja |
Kabler inkluderet | Vekselstrøm |
Brugervejledning | Ja |
Garantibevis | Ja |
WLAN-adapter inkluderet | Ja |
Medfølgende software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool |
Logistik data | |
Antal pr. pakke | 1 stk |
Harmoniseret systemkode (HS) | 85286200 |
Andre funktioner | |
Understøttede netværksprotokoller | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
