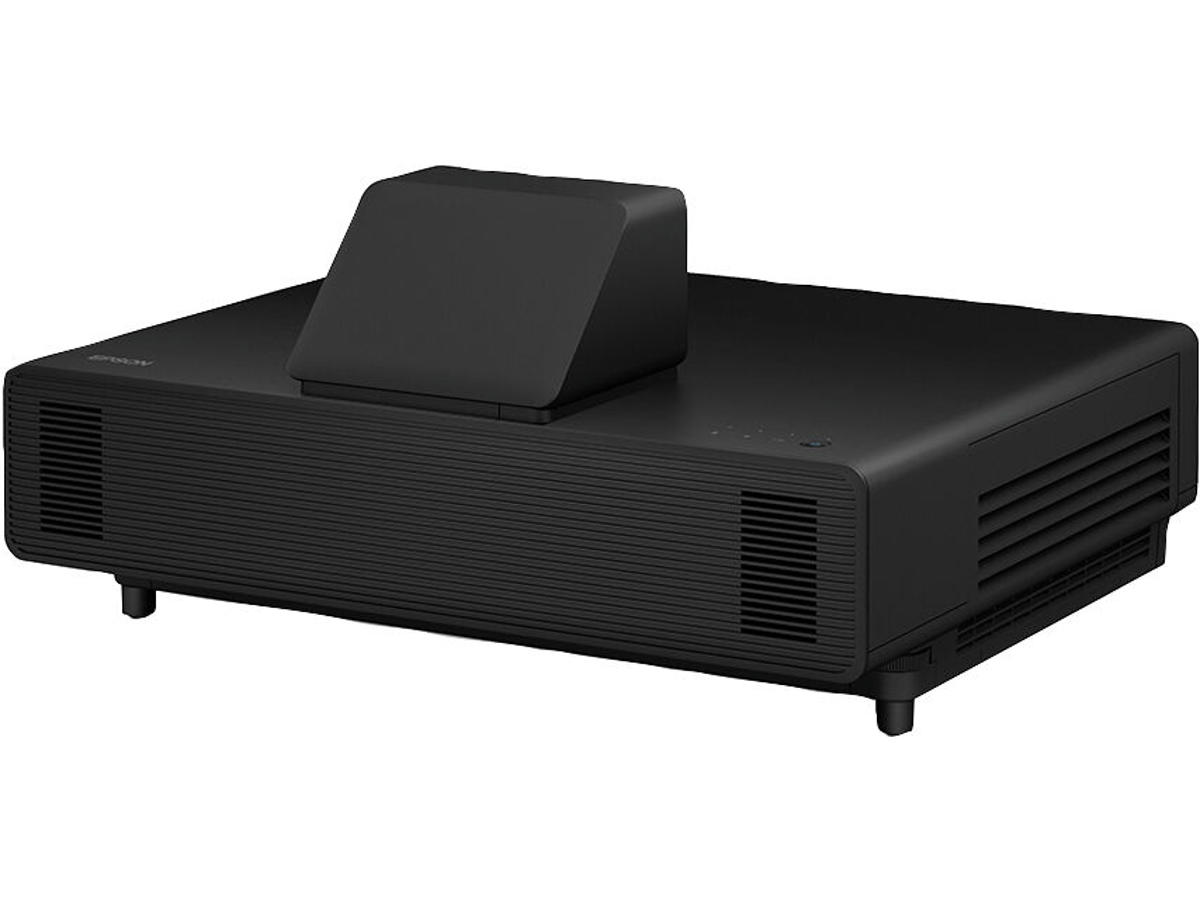

EB-805F
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.
Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.
Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.
Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.
Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.
Projektør | |
Projektor lysstyrke | 5000 ANSI lumens |
Projektionsteknologi | 3LCD |
Projektor indbygget opløsning | 1080p (1920x1080) |
Kontrastforhold (typisk) | 2500000:1 |
Naturligt aspektforhold | 16:9 |
Skærmstørrelse kompatibilitet | 1651 - 3302 mm (65 - 130") |
Projektionsafstand (bred) | 0 - 0,4 m |
Projektionsafstand (tele) | 0 - 0,8 m |
Antal farver | 1,07 milliarder farver |
Projektor lysstyrke (økonomisk tilstand) | 3500 ANSI lumens |
Vertikalt scanningsområde | 192 - 240 Hz |
Trapezkorrektion, horisontal | -3 - 3° |
Trapezkorrektion, vertikal | -3 - 3° |
Matrix størrelse | 1,57 cm (0.62") |
Hvidt lysudbytte | 5000 ANSI lumens |
Farve lysudbytte | 5000 ANSI lumens |
Varmeafgivelse | 1244 BUT/t |
Lyskilde | |
Lyskilde type | Laser |
Levetid for lyskilde | 20000 t |
Levetid for lyskilde (økonomisk tilstand) | 30000 t |
Linsesystem | |
Fokus | Vejledning |
Fast brændvidde | 3,9 mm |
Zoom type | Automatisk |
Zoomforhold | 1.35:1 |
Throw-forhold | 0.27 - 0.37:1 |
Video | |
Full HD | Ja |
Videobehandling | 10 Bit |
Farvetilstande for video | Blackboard, Biograf, Dynamisk, Præsentation, sRGB, DICOM-simuleringstilstand, Multi-projection |
Porte & Grænseflader | |
Antal VGA-porte (D-sub) | 2 |
Antal HDMI-porte | 4 |
Antal USB 2.0-porte | 2 |
Lyd (L, R) indgang | 3 |
Seriel grænsefladetype | RS-232C |
HDMI- stiktype | Fuld størrelse |
Antal USB 2.0 Type-B porte | 1 |
Lyd (L, R) udgang | 1 |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Funktioner | |
Støjniveau | 36 dB |
Støjniveau (økonomisk tilstand) | 27 dB |
Oprindelsesland | Kina |
Beskyttelse af adgangskode | Ja |
Multimedie | |
Indbyggede højttaler(e) | Ja |
Udgangseffekt (RMS) | 8 W |
Design | |
Produkttype | Ultrakort projektor med kort projiceringsafstand |
Produktfarve | Sort |
Placering | Loft, Desktop, Væg |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforbrug (typisk) | 366 W |
Strømforbrug (standby) | 0,5 W |
Strømforbrug (økonomi tilstand) | 262 W |
Vekselstrømsindgangsspænding | 220-240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Software | |
Softwaresupport | via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
Driftsbetingelser | |
Opbevaringstemperatur (T-T) | -10 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Vægt & størrelser | |
Vægt | 9,4 kg |
Bredde | 458 mm |
Dybde | 375 mm |
Højde | 210 mm |
Pakkebredde | 535 mm |
Pakkedybde | 595 mm |
Pakkehøjde | 350 mm |
Pakkevægt | 13,2 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Batterier inkluderet | Ja |
Kabler inkluderet | Vekselstrøm |
Garantibevis | Ja |
WLAN-adapter inkluderet | Ja |
Medfølgende software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management |
Tekniske detaljer | |
Bæredygtighedscertifikater | TCO |
Logistik data | |
Antal pr. pakke | 1 stk |
Produkter pr. palle | 12 stk |
Produkter pr. palle (UK) | 12 stk |
Harmoniseret systemkode (HS) | 85286200 |
Andre funktioner | |
Understøttede netværksprotokoller | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
