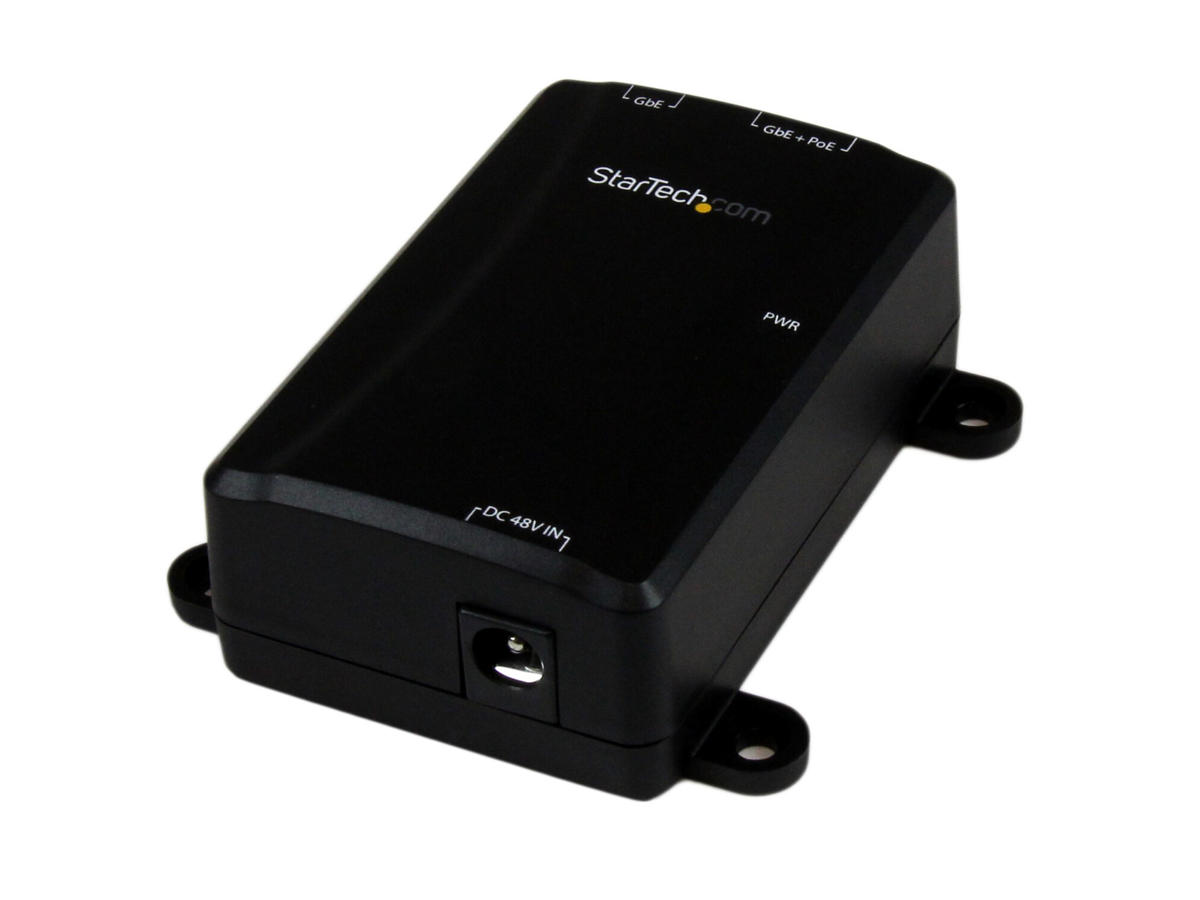

Deliver power and data to your Power over Ethernet device using this mountable PoE+ midspan
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).
The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
Convenience and cost savings
This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.
Easy to set up in mixed environments
You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.
Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Intelligent power allocation
Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.
The POEINJ1GW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Netværk | |
Ethernet-grænsefladetype | Gigabit Ethernet |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Strøm over Ethernet (PoE) | Ja |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Duplex system | Fuld |
Understøttede kabeltyper | Cat5 |
Funktioner | |
Produktfarve | Sort |
Plug and play | Ja |
Maksimal driftstilstand | 100 m |
LED-indikatorer | Strøm |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
DC-in-stik | Ja |
Strømstyring | |
Power over Ethernet (PoE) spænding | 48 V |
Udgangseffekt | 30 W |
Indgangsspænding | 100 - 240 V |
Indgangsstrøm | 0.75 A |
Udgangsstrøm | 0,64 A |
Strømforbrug (maks.) | 36 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Opbevaringstemperatur (T-T) | -20 - 85 °C |
Vægt & størrelser | |
Bredde | 63 mm |
Dybde | 70 mm |
Højde | 25 mm |
Vægt | 50 g |
Emballeringsdata | |
Pakkebredde | 230 mm |
Pakkedybde | 190 mm |
Pakkehøjde | 76 mm |
Pakkevægt | 1 kg |
Emballage indhold | |
AC-adapter inkluderet | Ja |
Strømledning inkluderet | Ja |
Hurtig installationsvejledning | Ja |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 85044095 |
Hovedkassens bredde (udvendigt) | 400 mm |
Hovedkassens længde (udvendigt) | 490 mm |
Hovedkassen højde (udvendigt) | 260 mm |
Produkter pr. hovedkasse (udvendigt) | 12 stk |
