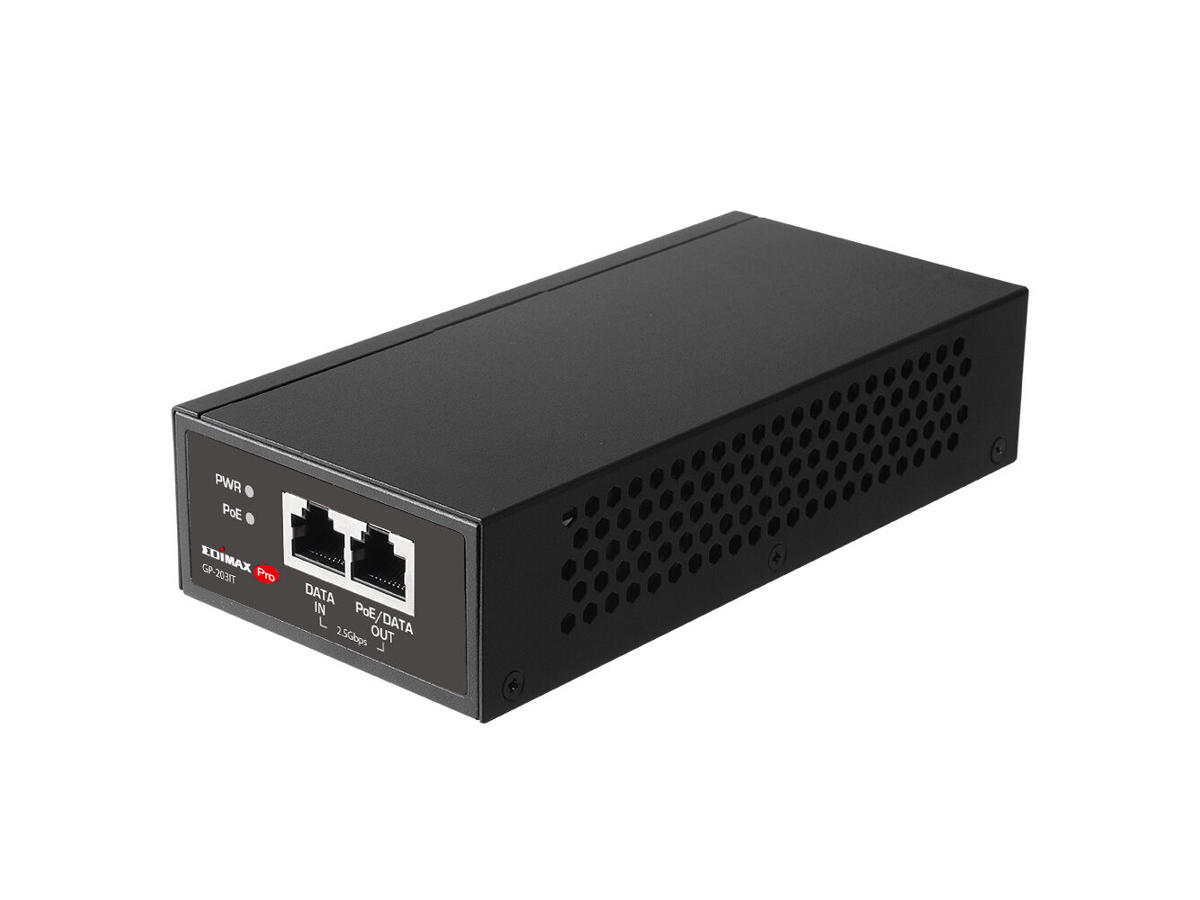

High Power PoE Port
Built-in 90W power supply, it connects directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.
2.5 Gigabit Ports Ensure Faster Connections
Both the 10/100/1000/2500 Mbps input and output port ensure faster, more reliable connections for all applications. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Easy Plug-and-Play
Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration is required.
Fast and Simple Installation / Flexible Mounting Options
The convenient wall-mounting design saves space for a simple installation.
Power Your PoE Devices
Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 90W.
IP Surveillance
IP surveillance camera is now ubiquitous. This PoE can be supported with only one LAN cable which enables fast deployment and easy repositioning for business, office, residential environments.
Digital Signage
Digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, and the content can be updated quickly to enhance users' real-time information.
Other PoE Devices
Other PoE-enabled devices such as POS System, Information Kiosk, RFID readers, access controls, thin clients, alarms or sensors, benefits easy and cost-saving installation even when it is away from AC outlets.
Netværk | |
Ethernet-grænsefladetype | 2.5 Gigabit Ethernet, Hurtigt ethernet, Gigabit Ethernet |
Ethernet LAN-datahastigheder | 10,100,1000,2500 Mbit/s |
Strøm over Ethernet (PoE) | Ja |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
Funktioner | |
Produktfarve | Sort |
Husmateriale | Metal |
Kan monteres på væggen | Ja |
Nem at installere | Ja |
Plug and play | Ja |
Beskyttelse ved overspænding | Ja |
Maksimal driftstilstand | 100 m |
LED-indikatorer | Ja |
Strømbeskyttelsesfunktioner | Overstrøm, Kortslutning |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
RJ-45 indgangs-porte | 1 |
RJ-45 udgangs-porte | 1 |
Strømstyring | |
Udgangseffekt | 90 W |
Indgangsspænding | 100 - 240 V |
Indgangsfrekvens | 50/60 Hz |
Indgangsstrøm | 1.5 A |
Strømforbrug (maks.) | 95 W |
DC udgangsspænding | 54 V |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C, 32 - 104 °F |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Opbevaringstemperatur (T-T) | -20 - 70 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Vægt & størrelser | |
Bredde | 73 mm |
Dybde | 154 mm |
Højde | 36 mm |
Vægt | 601 g |
Tekniske detaljer | |
Compliance-certifikater | CE, Federal Communications Commission (FCC) |
Overholdelse af bæredygtighed | Ja |
