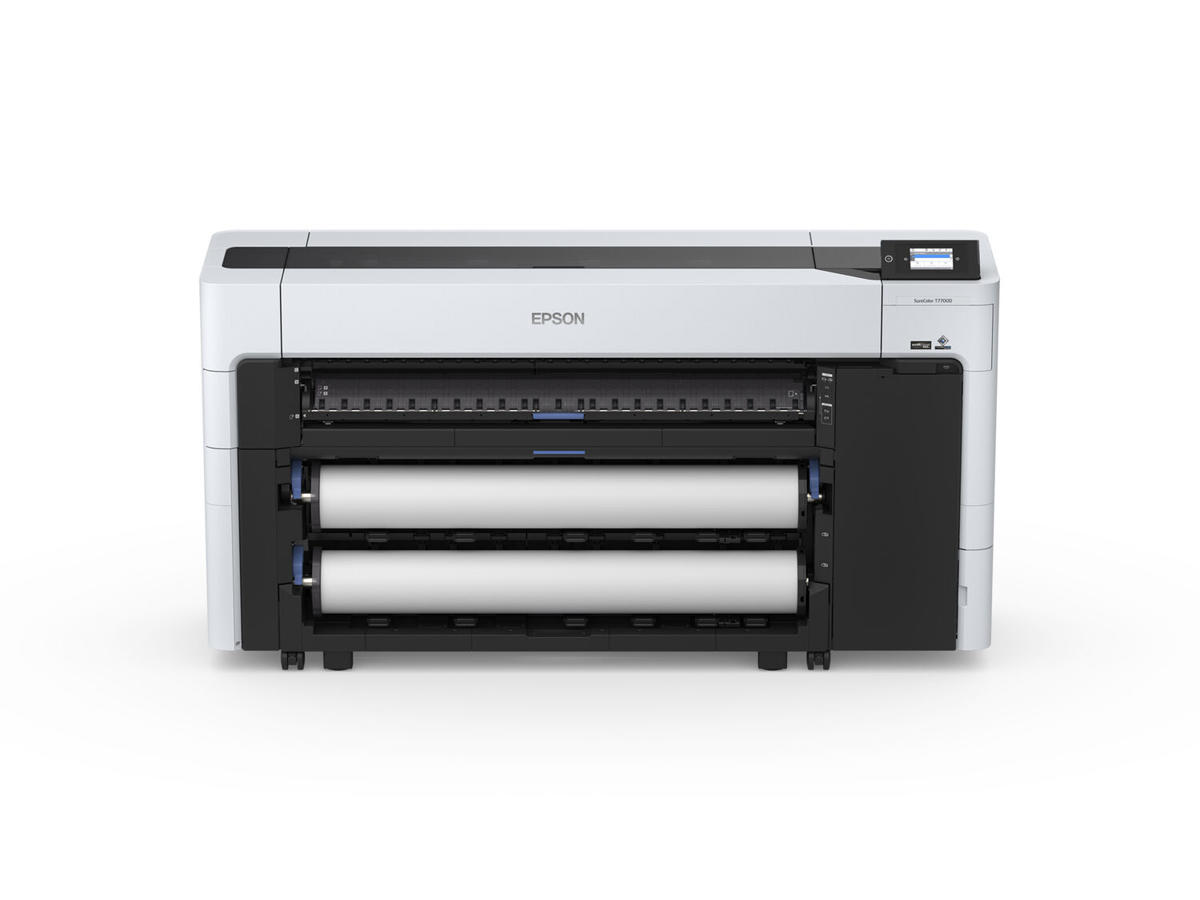

44-inch technical printer
This fully integrated, technical printing solution offers high-productivity, smart features, document security and easy operation.
The SureColor SC-T7700D is a technical printer that's been designed for various applications, including: precise line definition, colour accuracy, and security for AEC/CAD/GIS plans and drawings; bright colour and high speed production for POS posters in retail; and precision, colour replication, and security for public sector printing.
Complete document solution
The SC-T7700D includes enhanced IT and security features. This is particularly useful for designers, architects and construction companies who print detailed plans and drawings, while protecting confidential documents. Collaboration is further improved, and workloads managed more efficiently, through central management tracking applications: Epson Cloud Solutions PORT and Epson Device Admin for IT managers.
Fast and feature-rich
High productive output speeds are achieved with the PrecisionCore MicroTFP printhead, Variable Sized Droplet Technology and Nozzle Verification Technology.
Compact footprint - versatile design
The SureColor SC-T7700D design is both contempary and compact. It fits into most working environments because of its flat and unobtrusive design, which is space saving and practical.
Highly detailed prints, every time
Whether printing detailed architectural, engineering and construction (AEC) CAD prints, or POS posters for retail, the SureColorSC-T7700D's output is both precise and vibrant. The printer features an Epson PrecisionCore MicroTFP printhead and 6-colour UltraChrome XD3 all pigment inks, which include a new red ink to broaden the overall colour gamut.
Business solutions
The SureColor SC-T7700D is supported by industry-leading software providers for production enhancement and managed print systems.
Printhastighed | |
Udskrivningsteknologi | Inkjet |
Farve | Ja |
Maksimal opløsning | 1200 x 2400 dpi |
Antal printpatroner | 6 |
Sidebeskrivelsessprog | ESC/P-R, HP-GL/2, PDF 1.7, PostScript 3 |
Udskrivning af farver | Sort, Blå, Magenta, Mat sort, Foto sort, Rød, Gul |
Udskrivningshastighed (normal kvalitet, A1) | 120 pph |
Print hoved dyser | 1.600 nozzles per colour |
Farvestyring | ICC Profile |
Kopiering | |
Kopiering | Ingen |
Scanning | |
Scanning | Ingen |
Papirhåndtering | |
Maksimal printstørrelse | A2 (420 x 594 mm) |
Medietyper til papirbakke | Rulle |
ISO A-serie, størrelser (A0...A9) | A0, A2, A3, A4, A5 |
ISO B-serie, størrelser (B0...B9) | B0, B1 |
Medietykkelse | SingleSheet0.1 |
Maksimal rullebredde | 111,8 cm |
Automatisk optagningsrulle | Ja |
Udskrivning uden kanter bredde | 10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll, 44" (111.8cm) Roll |
Porte & Grænseflader | |
Ethernet LAN | Ja |
USB-port | Ja |
Wi-Fi | Ja |
Antal USB 2.0-porte | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Direkte udskrivning | Ja |
Mobile udskrivningsteknologier | Apple AirPrint |
Præstation | |
Produktfarve | Sort, Hvid |
Indbygget skærm | Ja |
Skærm | LCD |
Farveskærm | Ja |
Skærm diagonal | 10,9 cm (4.3") |
Kontroltype | Berøring |
Intern hukommelse | 4096 MB |
Lydeffektniveau (standby) | 6,6 dB |
Lydtryksniveau (udskrivning) | 6,6 dB |
Oprindelsesland | Indonesien |
Strømstyring | |
Strømforbrug (standby) | 0,3 W |
Strømforbrug (typisk) | 70 W |
Vekselstrømsindgangsspænding | 100-240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
Vægt & størrelser | |
Bredde | 1848 mm |
Dybde | 499 mm |
Højde | 975 mm |
Vægt | 155 kg |
Emballeringsdata | |
Pakkebredde | 750 mm |
Pakkedybde | 2000 mm |
Pakkehøjde | 1215 mm |
Pakkevægt | 197 kg |
Patron(er) inkluderet | Ja |
Brugervejledning | Ja |
Andre funktioner | |
Linjenøjagtighed | +/- 0,26 |
Berøringsskærm | Ja |
Mindste linjebredde | 0,02 mm |
Udskriftskvalitet (sort, kladdekvalitet) | 600 dpi |
Blækdråbe | 3,5 |
Logistik data | |
Antal pr. pakke | 1 stk |
Harmoniseret systemkode (HS) | 84433210 |
