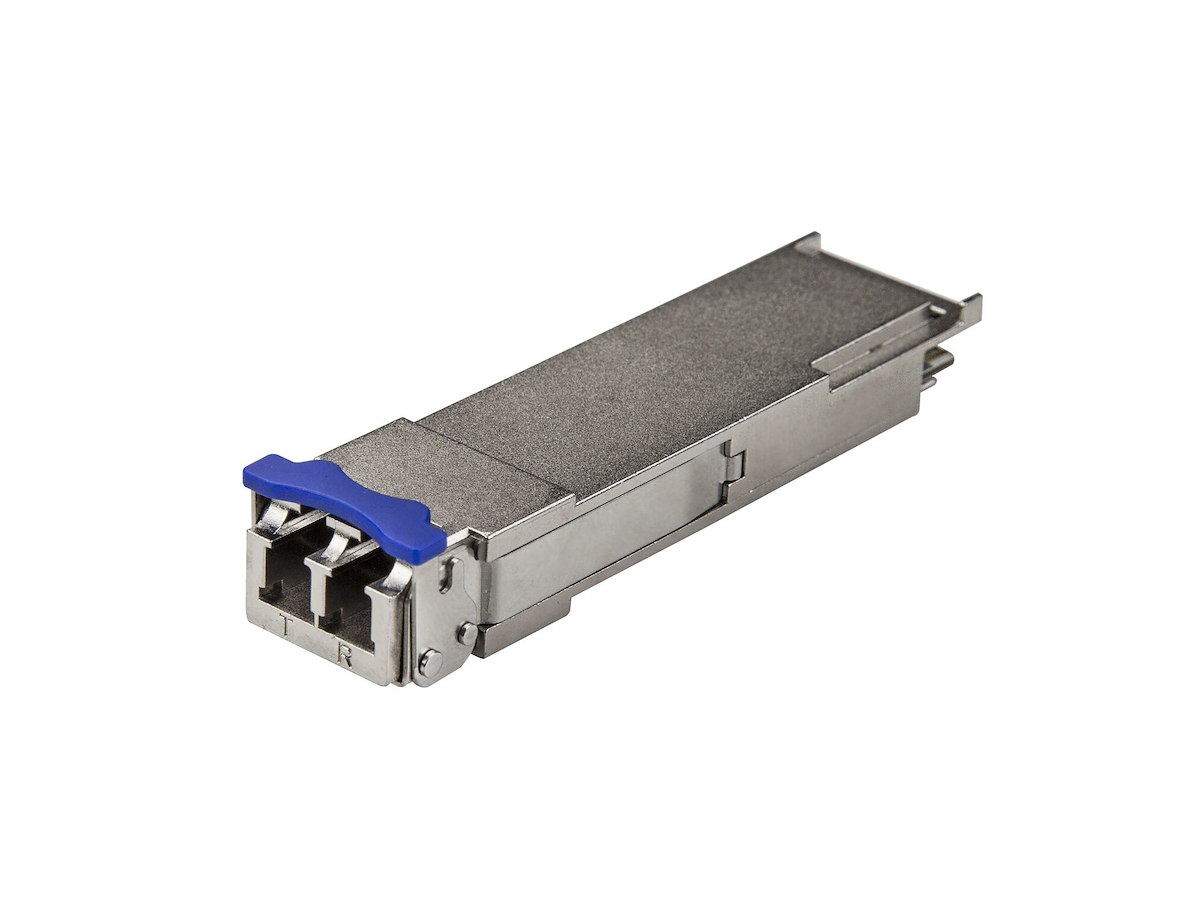

StarTech.com QSFP40GLR4ST modul til netværksmodtager Fiberoptisk 40000 Mbit/s QSFP+
Varenummer: QSFP40GLR4ST
.
DKK 22.787,50 / Stk
DKK 18.230,00 ekskl. moms
  •
StarTech.com QSFP40GLR4ST. SFP modtagertype: Fiberoptisk, Maksimal dataoverførselshastighed: 40000 Mbit/s, Grænsefladetype: QSFP+. Produktfarve: Sølv, Husmateriale: Aluminium, Gennemsnitstid mellem fejl (MTBF): 1489426 t. Strømforbrug (typisk): 2,5 W. Bredde: 18,4 mm, Dybde: 72 mm, Højde: 13 mm. Antal produkter inkluderet: 1 stk, Pakkebredde: 92 mm, Pakkedybde: 117 mm


Mere information

  • 40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

    The QSFP40GLR4ST is a Cisco QSFP-40G-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).

    Technical Specifications:

    • Wavelength: 1270nm to 1330nm
    • Maximum Data Transfer Rate: 40 Gbps
    • Type: Single Mode Fiber
    • Connection Type: LC Connector
    • Maximum Transfer Distance: 10 km (6.2 mi)
    • MTBF: 1,489,426 hours
    • Power Consumption: Less than 2.5 Watts
    • Digital Diagnostics Monitoring (DDM): Yes

    This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

    StarTech.com SFPs

    All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

    The StarTech.com Advantage

  • Præstation
    SFP modtagertype Fiberoptisk
    Maksimal dataoverførselshastighed 40000 Mbit/s
    Grænsefladetype QSFP+
    Enkelttilstand fiber (SMF) understøttet Ja
    Fiber optisk strømstik LC
    SFP transceiver standard LR4
    Maksimal overførselsafstand 10000 m
    Tx bølgelængde (min) 1270 nm
    Tx bølgelængde (maks) 1330 nm
    Netværksstandarder IEEE 802.3ba
    Duplex system Fuld
    Digital diagnose overvågning (DDM) Ja
    Funktioner
    Produktfarve Sølv
    Husmateriale Aluminium
    Hot-swap Ja
    Gennemsnitstid mellem fejl (MTBF) 1489426 t
    Oprindelsesland Kina
    Strømstyring
    Strømforbrug (typisk) 2,5 W
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 70 °C
    Opbevaringstemperatur (T-T) -40 - 85 °C
    Relativ luftfugtighed ved drift (H-H) 5 - 95%
    Vægt & størrelser
    Bredde 18,4 mm
    Dybde 72 mm
    Højde 13 mm
    Vægt 44 g
    Emballeringsdata
    Antal produkter inkluderet 1 stk
    Pakkebredde 92 mm
    Pakkedybde 117 mm
    Pakkehøjde 34 mm
    Pakkevægt 75 g
    Tekniske detaljer
    Compliance-certifikater CE, RoHS
    Logistik data
    Hovedkassens bredde (udvendigt) 250 mm
    Hovedkassens længde (udvendigt) 300 mm
    Harmoniseret systemkode (HS) 85369010
    Hovedkassen højde (udvendigt) 200 mm
    Produkter pr. hovedkasse (udvendigt) 36 stk
