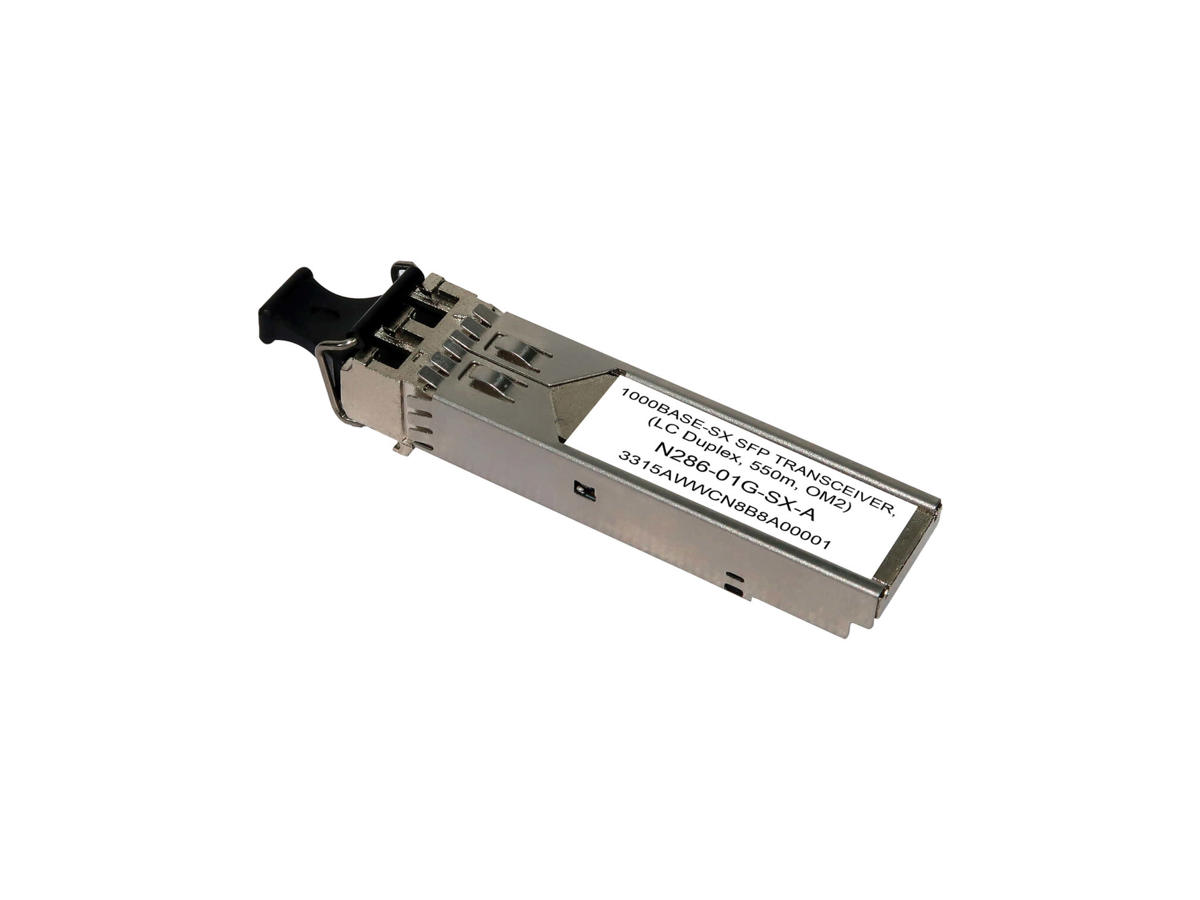

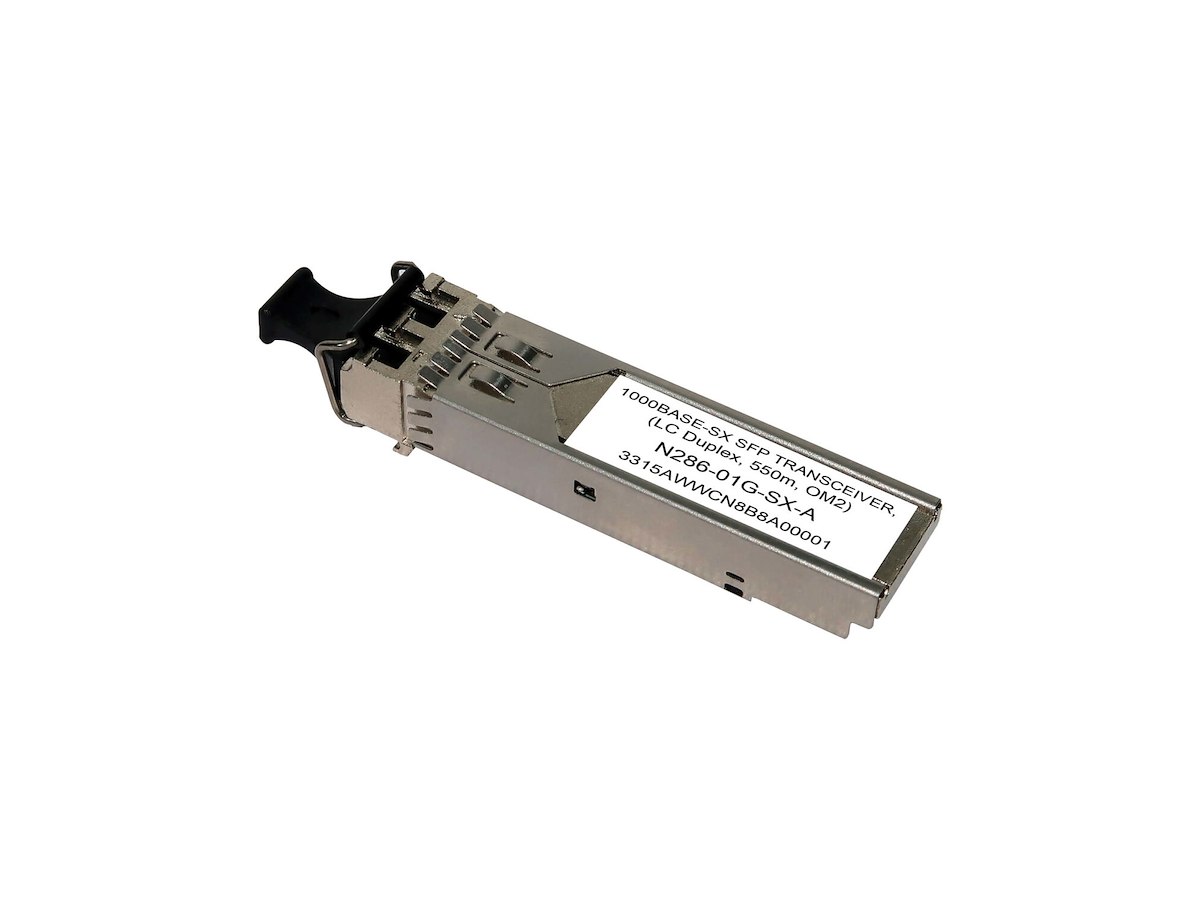

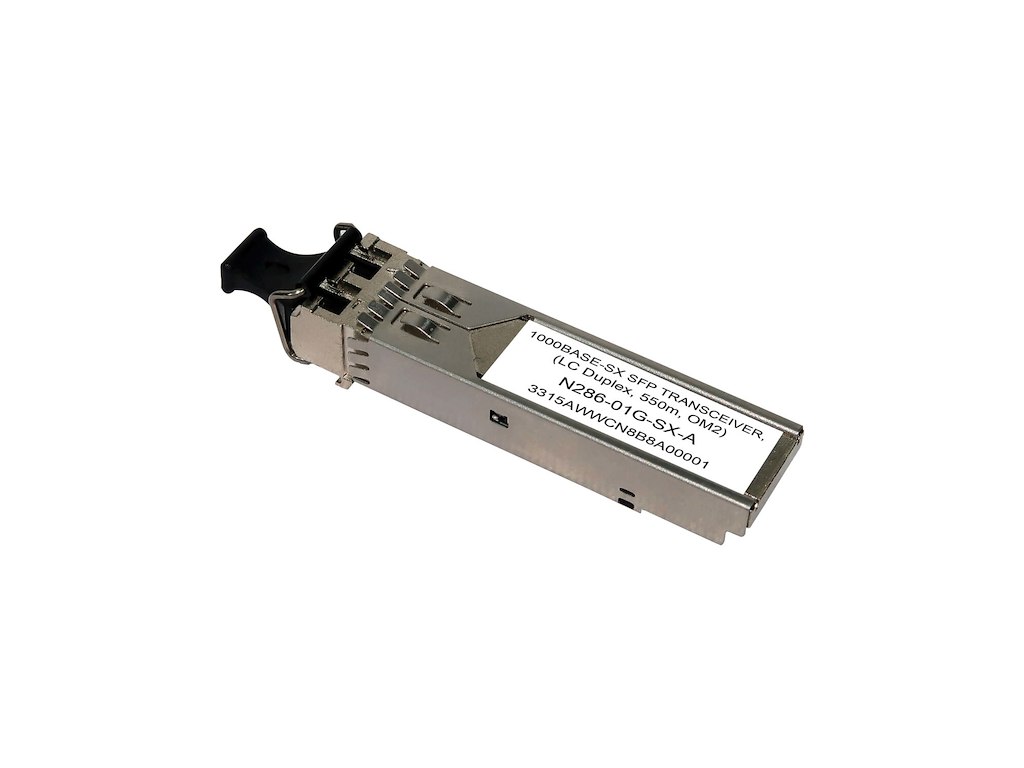

Connects a multimode Gigabit Ethernet fiber optic network cable to a switch or server’s SFP port.
SFP Transceiver for Connecting to Your Network Switch or Server
This SFP transceiver allows you to connect a multimode fiber optic cable to a 1.25 Gbps network router, server or switch. It transmits data up to 550 meters (1804 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 1.25 Gbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your network device. The other end has an LC duplex connector to link with multimode fiber optic cable (sold separately).
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.
Functionally Equivalent to Cisco GLC-SX-MMD Transceiver Module
The MSA-compliant N286-01G-SX-G functions just like the equivalent Cisco GLC-SX-MMD and other compatible OEM transceiver modules and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible router, server or switch and receive the same performance as the GLC-SX-MMD.
Præstation | |
SFP modtagertype | Fiberoptisk |
Maksimal dataoverførselshastighed | 1250 Mbit/s |
Grænsefladetype | SFP |
Multitilstand fiber (MMF) understøttet | Ja |
Fiber optisk strømstik | LC |
SFP transceiver standard | SX |
Maksimal overførselsafstand | 550 m |
Bølgelængde | 850 nm |
Fiber ethernet kabelteknologi | 1000BASE |
Digital diagnose overvågning (DDM) | Ja |
Funktioner | |
Produktfarve | Metallic |
Husmateriale | Zink |
Formfaktor | SFP |
Plug and play | Ja |
Hot-swap | Ja |
Nem at installere | Ja |
Mærke kompatibilitet | Cisco |
Certificering | EN 55032; IEC/EN 63000 |
Driftsbetingelser | |
Maksimal driftstemperatur | 70 °C |
Driftstemperatur (T-T) | 0 - 70 °C |
Opbevaringstemperatur (T-T) | -40 - 85 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Vægt | 50 g |
Emballeringsdata | |
Antal produkter inkluderet | 1 stk |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS, UKCA |
Overholdelse af bæredygtighed | Ja |
