Cat6a Cable Ideal for Connecting Equipment in Your 10G Ethernet Network
This Cat6a Ethernet cable (M/M) with RJ45 connectors transmits 10 Gbps data, voice and video through high-speed 10G equipment, including network switches, modems, servers, routers, adapters, hubs and patch panels, in high-density data centers. Designed for fast transmission and excellent signal quality, this Cat6a cable ensures peak performance throughout your local area network (LAN).
Provides Extra Protection Against Certain Bacteria
The connectors and PVC jacket are constructed using an antibacterial material that is effective in inhibiting the growth of Escherichia coli (E. coli) and Staphylococcus aureus (staph).This added protection makes this cable an ideal solution for medical facilities, schools, businesses, restaurants/kitchens and anywhere else that needs extra protection against bacteria.
Special Slim Design for Better Airflow and Easier Installation
This 10G cable is more than 38% smaller in diameter than standard Cat6a cable. This increases airflow in tight spaces, which helps keep your equipment cool and properly functioning. It also cuts down on clutter in crowded racks and patch panels, and makes the cable easier to install around corners and through cable management panels.

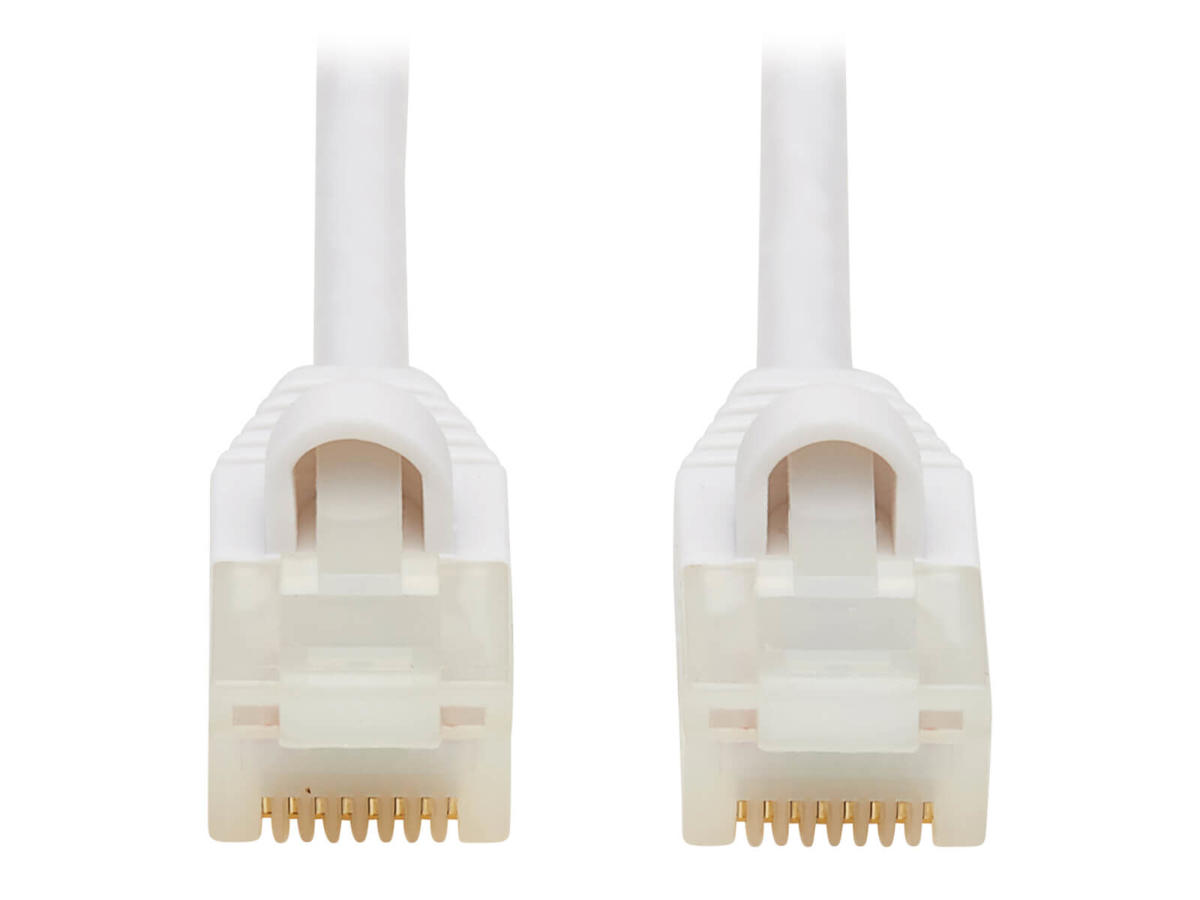

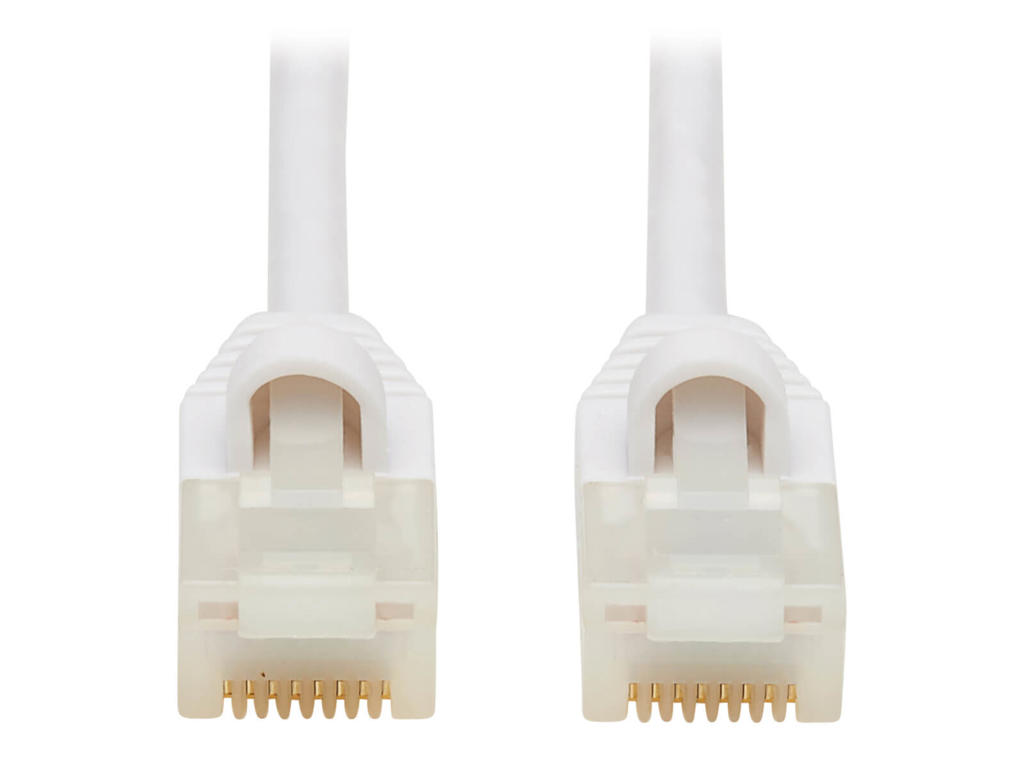

Snagless RJ45 Male Connectors Keep Tabs Intact During Installation
The RJ45 connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief gives the cable extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector.
Premium Construction for Superior Performance
Manufactured from 28 AWG copper wire, the four-pair stranded cable is rated for speeds up to 10 Gbps. The RJ45 connectors improve near-end crosstalk (NEXT) performance to 500 MHz and feature 3-micron gold plating to help ensure the most accurate signal transfer possible.
White Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The cable has a white PVC jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected.
Funktioner | |
Kabellængde | 3,05 m |
Standard for kabler | Cat6a |
Kabelafskærmning | U/UTP (UTP) |
Stik 1 | RJ-45 |
Stik 2 | RJ-45 |
Produktfarve | Hvid |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Stikforbindelse kontakter plettering | Guld |
Materiale for kapper | Polyvinylchlorid (PVC) |
Kabelform | Rund |
Ledertype | Strandet |
Ledningsmateriale | Kobber |
AWG-ledningsstørrelse | 28 |
Dataoverførselshastighed | 10000 Mbit/s |
Frekvens | 500 MHz |
Stikhætte kabelstøvle | Ja |
Certificering | REACH |
Oprindelsesland | Taiwan |
Driftsbetingelser | |
Driftstemperatur (T-T) | -10 - 50 °C |
Opbevaringstemperatur (T-T) | -15 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 90% |
Vægt & størrelser | |
Ydre diameter | 3,8 mm |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 177,8 mm |
Pakkedybde | 12,7 mm |
Pakkehøjde | 228,6 mm |
Pakkevægt | 70 g |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 8544,42,2000 |
Hovedkasse (udvendig) GTIN (EAN/UPC) | 10037332260489 |
Hovedkassens bredde (udvendigt) | 406,4 mm |
Hovedkassens længde (udvendigt) | 25,4 mm |
Hovedkassens bruttovægt (udvendigt) | 680 g |
Hovedkassen højde (udvendigt) | 457,2 mm |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
