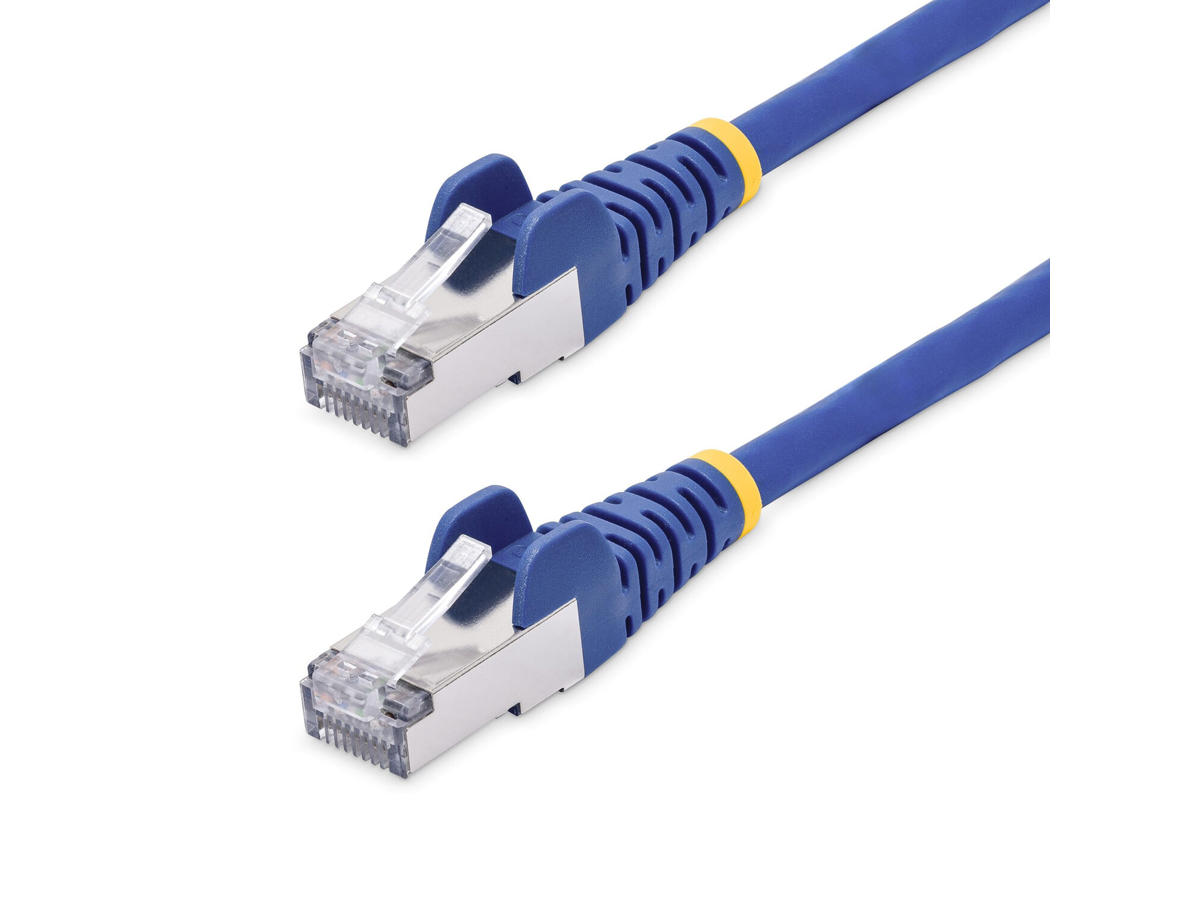

Connect reliably to a 25G/40G network using this Shielded LSZH Cat8 Cable
Connect to a 25/40Gbps switch or networking device using this Snagless S/FTP Category 8 Ethernet Cable. The 2000MHz maximum frequency enables up to four times higher throughput than Cat6a.
Pure Bare Copper Wire
Our Snagless Cat8 Cables are designed for long-lasting performance. The 4-Pair Shielded and Foiled Twisted Pair (S/FTP) construction utilizes 26AWG pure bare copper wire for improved conductivity and low resistance, ensuring reliable transmission and minimal signal loss.
Pure bare copper wiring offers consistent performance characteristics across different environments. Each pair is shielded in aluminum-mylar foil and tinned copper braid for enhanced EMI protection.
Durable Construction
The Cat8 Ethernet Cable features snagless 50-micro gold-plated connectors that enable a precise fit to minimize wear and are rated beyond 750 connector mating cycles. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
The cable is rated to withstand -/+90-degree bends and routes well in confined spaces.
Versatile Dependability
The Shielded Cat8 Patch Cord is ideal for high-density 25/40GBASE-T networks and supports up to 100W output to Power over Ethernet (PoE++) devices. Establish connectivity to 25G/40G switches, Network Attached Storage (NAS), Storage Area Networks (SANs), and SFP modules. It facilitates reliable throughput and power to low-latency and critical PoE devices, including PoE switches, access points, and IP cameras.
Backward compatibility with Cat 6/6a and Cat 5/5e standards ensure seamless integration into existing network environments. Our Snagless Cat8 cables are Fluke channel tested for guaranteed Cat8 performance.
The StarTech.com Advantage
Funktioner | |
Kabellængde | 2 m |
Standard for kabler | Cat8 |
Kabelafskærmning | S/FTP (S-STP) |
Stik 1 | RJ-45 |
Stik 2 | RJ-45 |
Produktfarve | Blå |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Guld |
Materiale for kapper | Lav røg ingen halogen (LSZH) |
Kabelform | Rund |
Ledningsmateriale | Kobber |
Kabelteknologi | 40GBase-T |
Ethernet-grænsefladetype | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet |
Netværksstandarder | IEEE 802.3ba, IEEE 802.3bt |
AWG-ledningsstørrelse | 26 |
Dataoverførselshastighed | 40000 Mbit/s |
Frekvens | 2000 MHz |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet (PoE) -type understøttet | PoE++ (4PPoE) |
Total Power over Ethernet (PoE) | 100 W |
Stikhætte kabelstøvle | Ja |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 85% |
Vægt & størrelser | |
Ydre diameter | 5,6 mm |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 220 mm |
Pakkedybde | 190 mm |
Pakkehøjde | 15 mm |
Pakkevægt | 93 g |
Logistik data | |
Hovedkassens bredde (udvendigt) | 430 mm |
Hovedkassens længde (udvendigt) | 380 mm |
Hovedkassen højde (udvendigt) | 290 mm |
Produkter pr. hovedkasse (udvendigt) | 80 stk |
