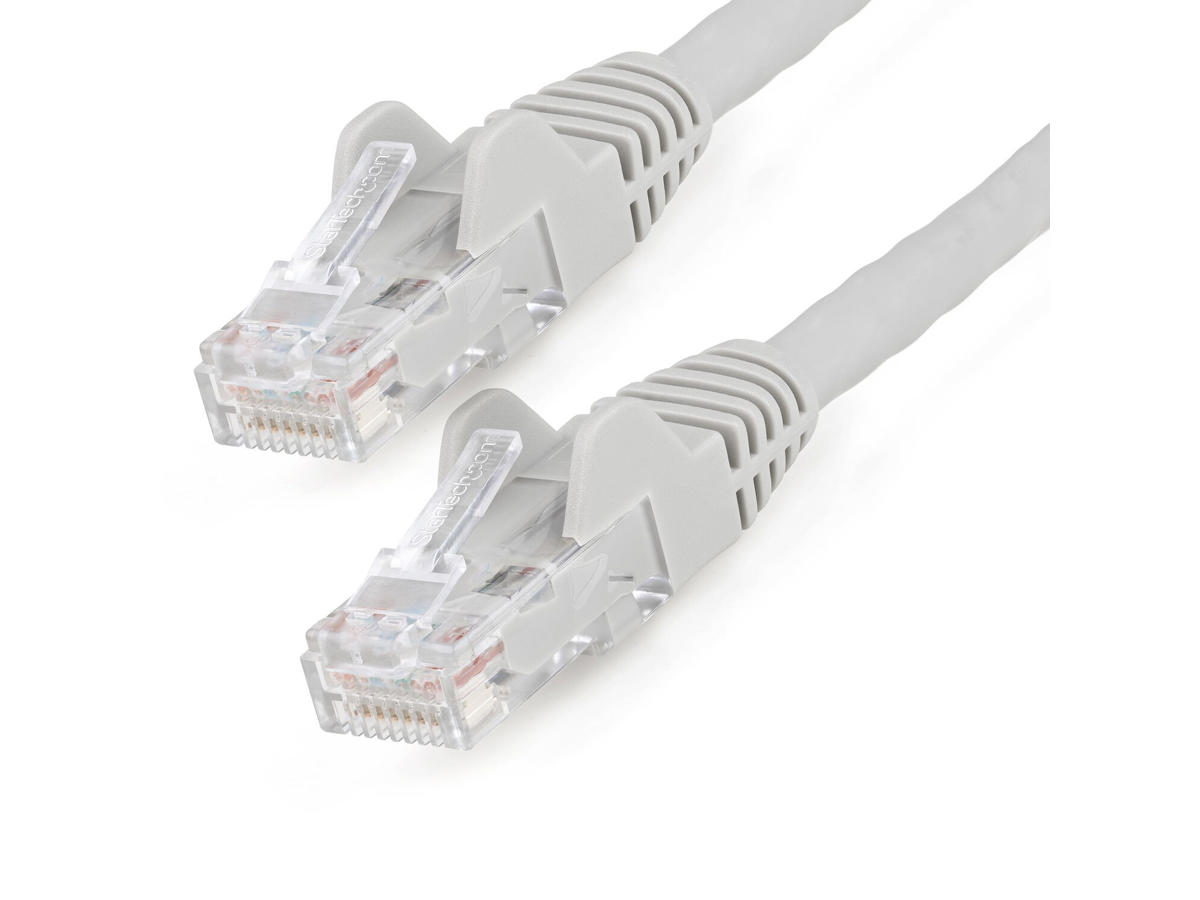

StarTech.com N6LPATCH10MGR netværkskabel Grå 10 m Cat6 U/UTP (UTP)
Varenummer: N6LPATCH10MGR
.
DKK 387,50 / Stk
DKK 310,00 ekskl. moms
  •
StarTech.com N6LPATCH10MGR. Kabellængde: 10 m, Standard for kabler: Cat6, Kabelafskærmning: U/UTP (UTP), Stik 1: RJ-45, Stik 2: RJ-45, Dataoverførselshastighed: 10000 Mbit/s, Produktfarve: Grå


Mere information

  • CAT6 Ethernet Cable | LSZH | Snagless | 100W PoE | Lifetime Warranty

    StarTech.com Advantage

    StarTech.com products are designed for IT Professionals to meet their technical standards. Product quality, compatibility and reliability are ensured by our in-house and third-party labs and certifications by leading technology companies.

    StarTech.com's line of CAT6 cables use 100% copper and gold-plated pins. All of our Category 6 cable products undergo rigorous physical and electrical tests, including the repetitive bend cycle test. Each cable is individually tested (Fluke® patch cord test) to measure worst case NEXT and RL. Beyond our own testing, we work with leading external test labs such as ETL, to obtain product performance and safety certifications.

    Backed by a risk-free StarTech.com lifetime warranty and 24 hour, five day-a-week, support from qualified Technical Advisors, our brand is trusted throughout the IT ecosystem and used by over 80% of Fortune 500 companies.

    Product Overview

    Low Smoke Zero Halogen (LSZH) Category 6 Snagless Network Patch Cable supports error-free Multi Gigabit connections: 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 160ft/55m). This PVC free high-performance cable offers reliable connectivity to all networking devices, such as Network Interface Cards (NIC), servers, routers, network attached storage (NAS), VoIP phones, PoE devices, etc.

    This Eco-friendly LSZH CAT6 cable produces lower levels of toxic corrosive fumes and white smoke in the event of a fire, which offers higher visibility, allowing for a safer and faster evacuation.

    StarTech.com offers the widest selection of lengths and colors, to keep your business network and workstations connected and organized.

    High Performance CAT6 Ethernet Cable

    • Reliably Connect Your Ethernet Devices

    Error-free Multi Gigabit support - 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 55m), 10GBase-T
    • 650MHz support for increased bandwidth

    • 100% Copper Cable, Ideal for Powering Your Devices Over Ethernet

    Made with 100% bare copper wire, StarTech.com cables are fully compliant with, unlike other cables that use copper clad aluminum (CCA) wire.

    Tested up to 100W continuous power throughput.
    • Complies with IEEE 802.3bt Type 4 standard.
    • Excellent heat dissipation over prolonged use.

    Supports high power PoE for Laptops, IP TVs, Security Cameras, VoIP phones, NAS devices, etc.

    • Quality Construction

    50-micron gold platted connectors
    • Snagless boot
    • 40 mm (1.57") bend radius for strong molded strain relief and improved flexibility

    The Snagless design protects the RJ45 clip and ensures the cables are easily pulled through constrained spaces such as conduits or raceways and prevents the cable from getting caught/damaged during installation.

    Engineered for Professional Applications

    • Detailed Spec Drawings Available

    StarTech.com makes it easy for you to integrate the CAT6 cable into your network by providing detailed technical specifications and engineering drawings.

    • Hassle-free Installation with Reliable Performance and Flexibility

    6.0 mm (0.23") OD, Flexible PVC-Free jacket with 100 mm (3.93") bend radius
    • Flexible HD-PE insulation for reduced Intra-pair Crosstalk
    • Spline separator for reduced Inter-pair Crosstalk and improved heat dissipation for 100W PoE
    • 24AWG (0.25mm2), 100% copper, stranded wire twisted pairs
    • U/UTP cable construction

    • Electrical Characteristics

    ETL Verified for maximum performance
    • Cable Impedance: 100 ohms ± 15% at 250 MHz
    • Max. DC Resistance: 14 ohms per 1000 ft (305 m)
    • Pair to GND Capacitance: 330 pF per 328 ft (100 m)
    • Mutual Capacitance: 5.6 nF per 1000 ft (305 m)
    • Propagation Delay Skew: 45 ns per 328 ft (100 m)

    Lab Tested and Third Party Certified for Product Performance and Safety

    • ETL Verified
    • 3P Verified to ANSI/TIA-568-2.D Category 6
    • Fluke® Tested CAT6 Patch Cord

    The StarTech.com Advantage

  • Funktioner
    Kabellængde 10 m
    Standard for kabler Cat6
    Kabelafskærmning U/UTP (UTP)
    Stik 1 RJ-45
    Stik 2 RJ-45
    Produktfarve Grå
    Stik 1 køn Hanstik
    Stik 2 køn Hanstik
    Materiale for kapper Lav røg ingen halogen (LSZH)
    Ledningsmateriale Kobber
    Kabelteknologi 10GBase-T
    AWG-ledningsstørrelse 24
    Dataoverførselshastighed 10000 Mbit/s
    Frekvens 650 MHz
    Strøm over Ethernet (PoE) Ja
    Stikhætte kabelstøvle Ja
    Plug and play Ja
    Certificering ETL
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 80 °C
    Opbevaringstemperatur (T-T) 0 - 80 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 95%
    Vægt & størrelser
    Ydre diameter 6 mm
    Vægt 368 g
    Emballeringsdata
    Antal pr. pakke 1 stk
    Pakkebredde 330 mm
    Pakkedybde 255 mm
    Pakkehøjde 40 mm
    Pakkevægt 378 g
    Tekniske detaljer
    Compliance-certifikater CE, RoHS
    Logistik data
    Harmoniseret systemkode (HS) 84733080
    Hovedkassens bredde (udvendigt) 380 mm
    Hovedkassens længde (udvendigt) 430 mm
    Hovedkassen højde (udvendigt) 290 mm
    Produkter pr. hovedkasse (udvendigt) 30 stk
