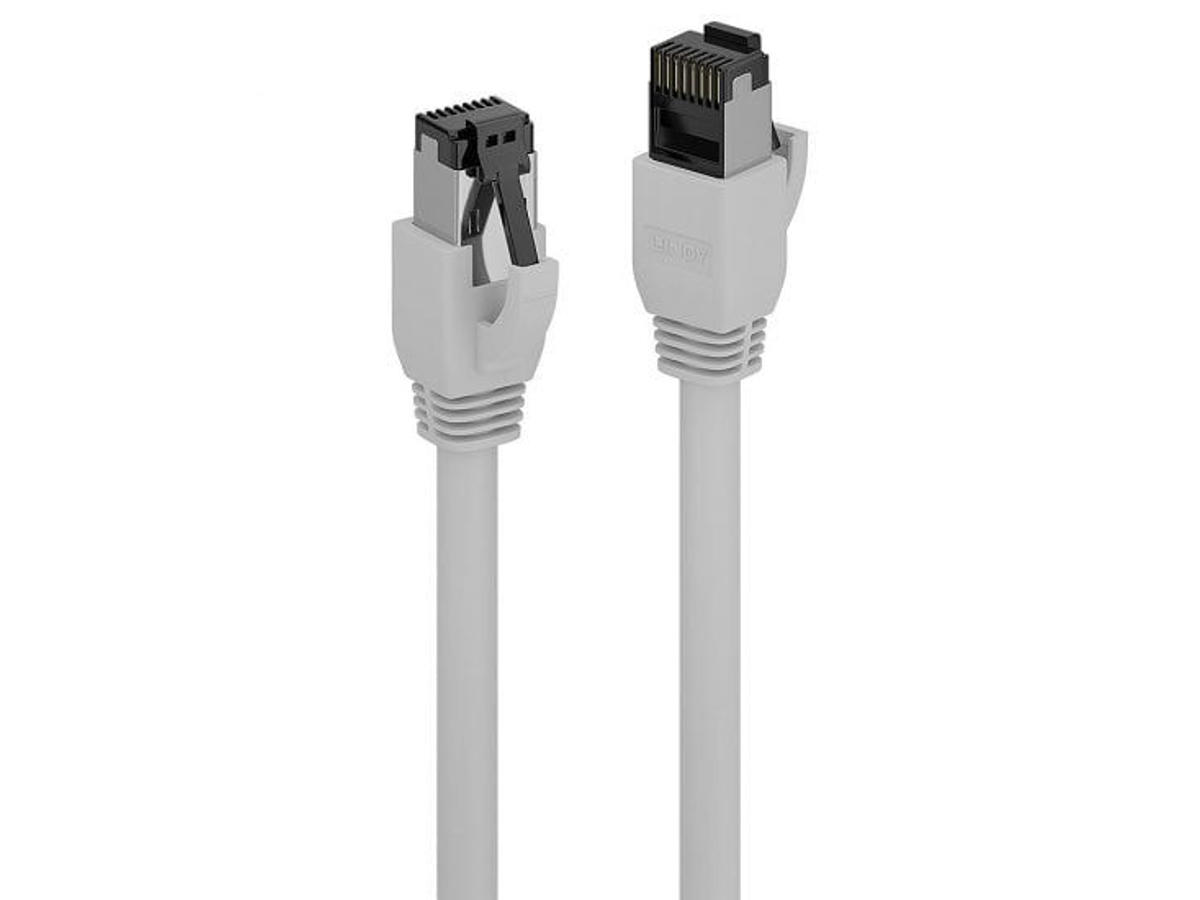

Cat.8.1 S/FTP LSZH network cable with support for bandwidth up to 2000MHz and features a snagless design with gold plated contacts for ethernet standards up to 40GBase-T.
Cat.8.1 cable with S/FTP shielding (braid for overall shield and foil shield for each individual wire pair). With operating frequencies up to 2000MHz they are equipped for ethernet standards 25GBase-T and 40GBase-T. These cables are manufactured and tested according to the ISO/IEC 11801 specification.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available in the following lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m
Funktioner | |
Kabellængde | 1,5 m |
Standard for kabler | Cat8.1 |
Kabelafskærmning | S/FTP (S-STP) |
Stik 1 | RJ-45 |
Stik 2 | RJ-45 |
Produktfarve | Grå |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Nikkel |
Stik afskærmning | Ja |
Stik skjold materiale | Aluminium |
Materiale for kapper | Lav røg ingen halogen (LSZH) |
Ledningsmateriale | Kobber |
AWG-ledningsstørrelse | 26 |
Frekvens | 2000 MHz |
Bøjningsradius (min) | 6 cm |
Driftsbetingelser | |
Driftstemperatur (T-T) | -10 - 60 °C |
Opbevaringstemperatur (T-T) | -20 - 75 °C |
Vægt & størrelser | |
Bredde | 12 mm |
Dybde | 38,5 mm |
Højde | 17 mm |
Ydre diameter | 7,5 mm |
Emballeringsdata | |
Pakketype | Polybag |
Tekniske detaljer | |
Compliance-certifikater | REACH, RoHS |
Overholdelse af bæredygtighed | Ja |
