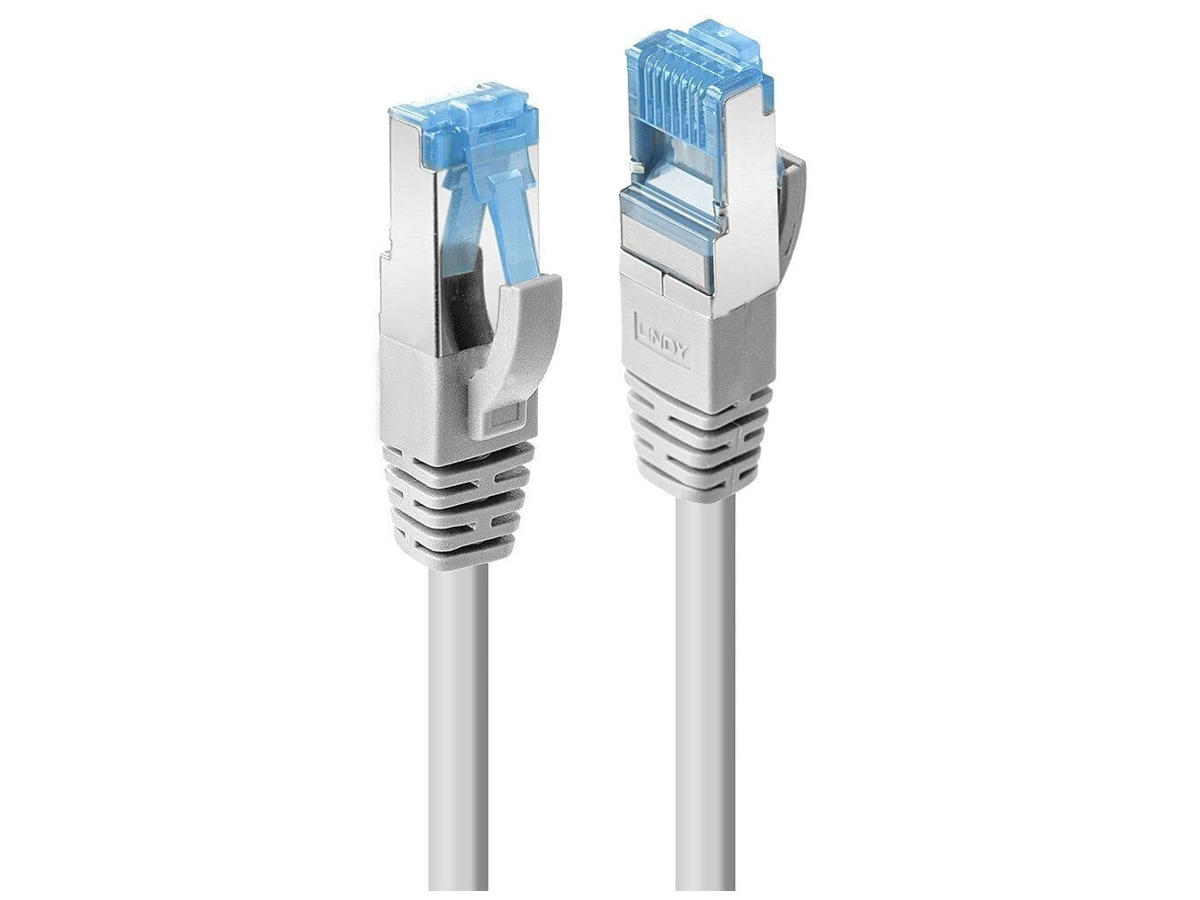

Lindy 47144 netværkskabel Grå 100 m Cat6a S/FTP (S-STP)
Varenummer: 47144
.
DKK 2.343,75 / Stk
DKK 1.875,00 ekskl. moms
  •
Lindy 47144. Kabellængde: 100 m, Standard for kabler: Cat6a, Kabelafskærmning: S/FTP (S-STP), Stik 1: RJ-45, Stik 2: RJ-45, Stikforbindelse kontakter plettering: Nikkel, Dataoverførselshastighed: 1000 Mbit/s


Mere information

  • Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

    Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

    The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

    The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

  • Funktioner
    Kabellængde 100 m
    Standard for kabler Cat6a
    Kabelafskærmning S/FTP (S-STP)
    Stik 1 RJ-45
    Stik 2 RJ-45
    Produktfarve Grå
    Stik 1 køn Hanstik
    Stik 2 køn Hanstik
    Stik 1 formfaktor Lige
    Stik 2 formfaktor Lige
    Stikforbindelse kontakter plettering Nikkel
    Stik afskærmning Ja
    Stik skjold materiale Aluminium
    Materiale for kapper Lav røg ingen halogen (LSZH)
    Kabelform Rund
    Ledningsmateriale Kobber
    Kabelklasse Ea
    Kabelteknologi 10GBase-T
    Ethernet-grænsefladetype 10 Gigabit Ethernet
    AWG-ledningsstørrelse 27
    Dataoverførselshastighed 1000 Mbit/s
    Frekvens 500 MHz
    Bøjningsradius (min) 7,2 cm
    Stikhætte kabelstøvle Ja
    Plug and play Ja
    Nominel dæmpning 49.3dB/100m @ 500MHz
    Certificering RoHS, REACH, UL
    Driftsbetingelser
    Driftstemperatur (T-T) -10 - 60 °C
    Opbevaringstemperatur (T-T) -20 - 75 °C
    Vægt & størrelser
    Bredde 11,6 mm
    Dybde 21,5 mm
    Højde 8,3 mm
    Ydre diameter 6 mm
    Emballeringsdata
    Antal pr. pakke 1 stk
    Pakketype Polybag
    Tekniske detaljer
    Overholdelse af bæredygtighed Ja
    Bæredygtighedscertifikater REACH, RoHS, UL ECOLOGO
    Logistik data
    Harmoniseret systemkode (HS) 84733080
