Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice

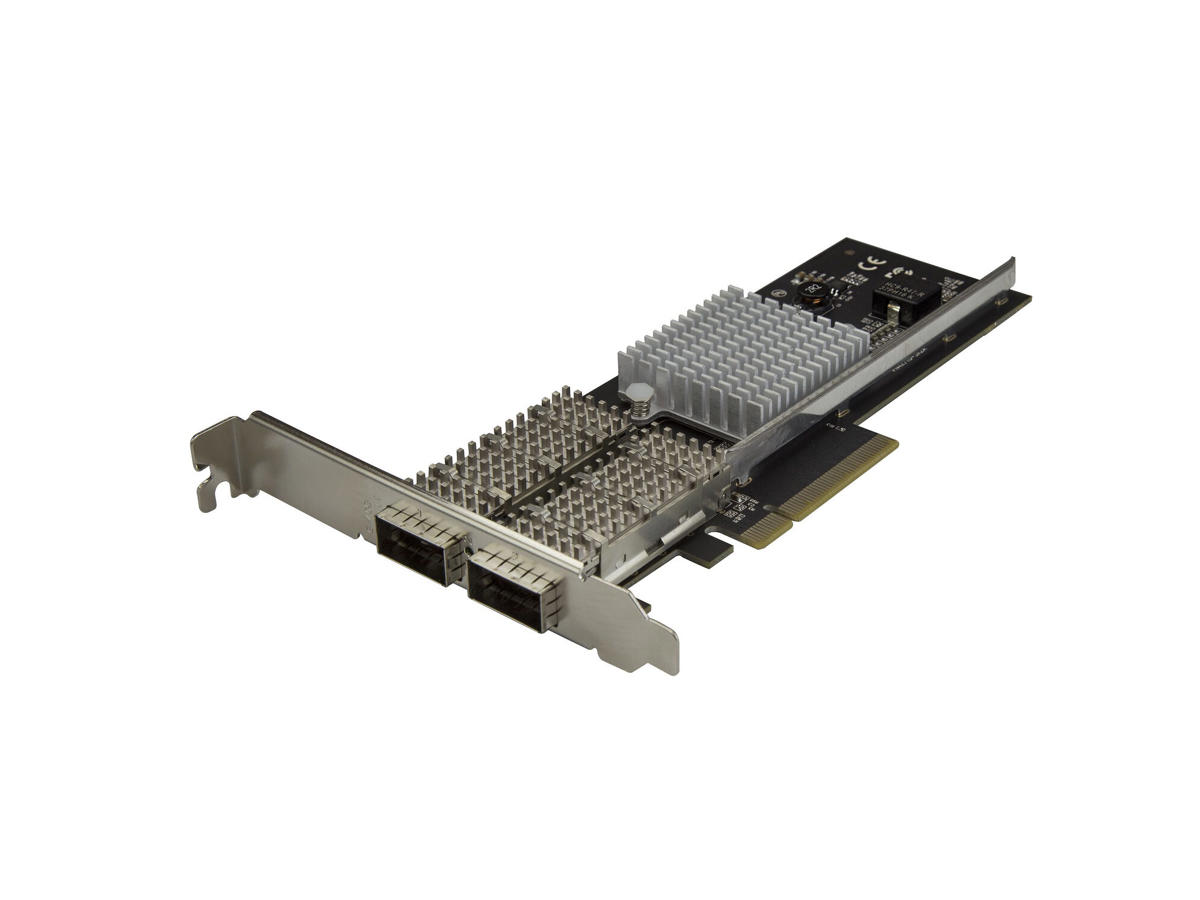

Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel® controller and provides redundant network links with reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.
Increase your network speed
This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.
Add redundant connections in zero-downtime environments
With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.
Add scalable network connections
With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
Enhance your network capabilities
The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The PEX40GQSFDPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | PCI Express |
Grænseflade | Fiber |
Fiberkanal porte | 2 |
Fiber optisk strømstik | QSFP+ |
PCI version | 3.0 |
Netværk | |
Maksimal dataoverførselshastighed | 40000 Mbit/s |
Netværksstandarder | IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3x |
Ethernet LAN | Ingen |
Fiber ethernet kabelteknologi | 40GBASE-LR4, 40GBASE-SR4 |
Fuld duplex | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
VLAN mærkning | Ja |
Design | |
Intern | Ja |
Komponent til | PC/server |
Produktfarve | Sort |
Chipsæt | Intel - XL710-BM2 |
LED-indikatorer | Aktivitet, Link |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Understøttede Linux-operativsystemer | Ja |
Understøttede operativsystemer til servere | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 57 °C |
Opbevaringstemperatur (T-T) | -20 - 85 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Bredde | 121 mm |
Dybde | 181 mm |
Højde | 21 mm |
Vægt | 127 g |
Emballeringsdata | |
Simpelt beslag | Ja |
Pakkebredde | 145 mm |
Pakkedybde | 207 mm |
Pakkehøjde | 40 mm |
Pakkevægt | 212 g |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Hovedkassens bredde (udvendigt) | 420 mm |
Hovedkassens længde (udvendigt) | 440 mm |
Hovedkassen højde (udvendigt) | 320 mm |
Produkter pr. hovedkasse (udvendigt) | 40 stk |
Andre funktioner | |
Hurtig start guide | Ja |
Flowkontrol support | Ja |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
