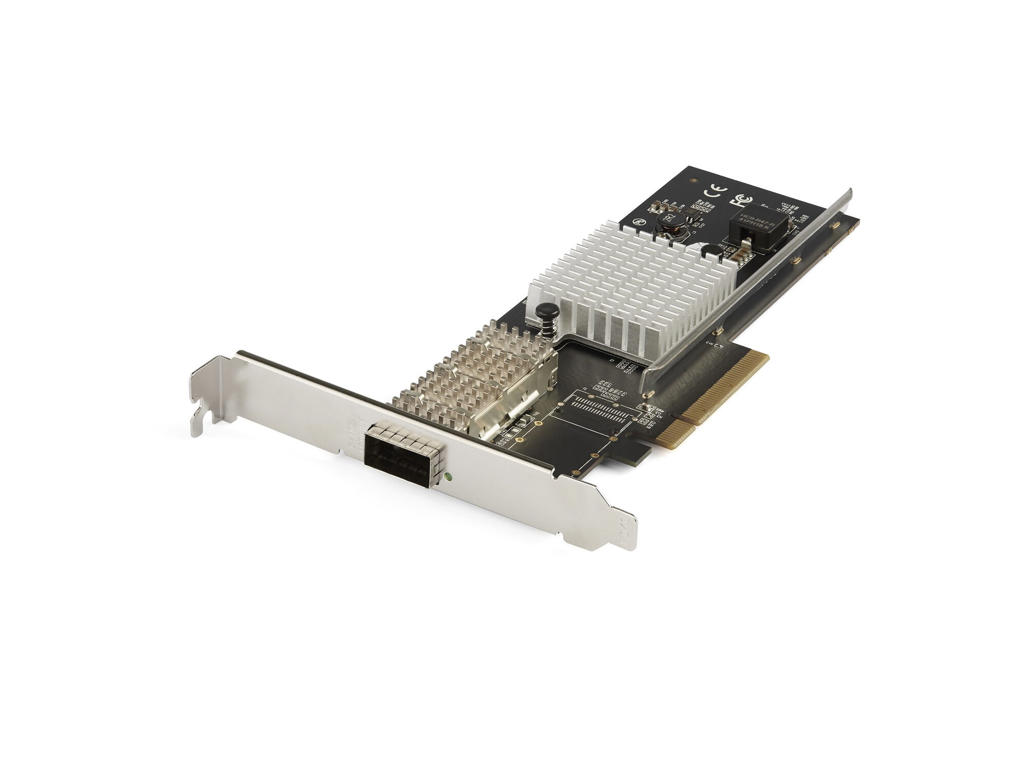

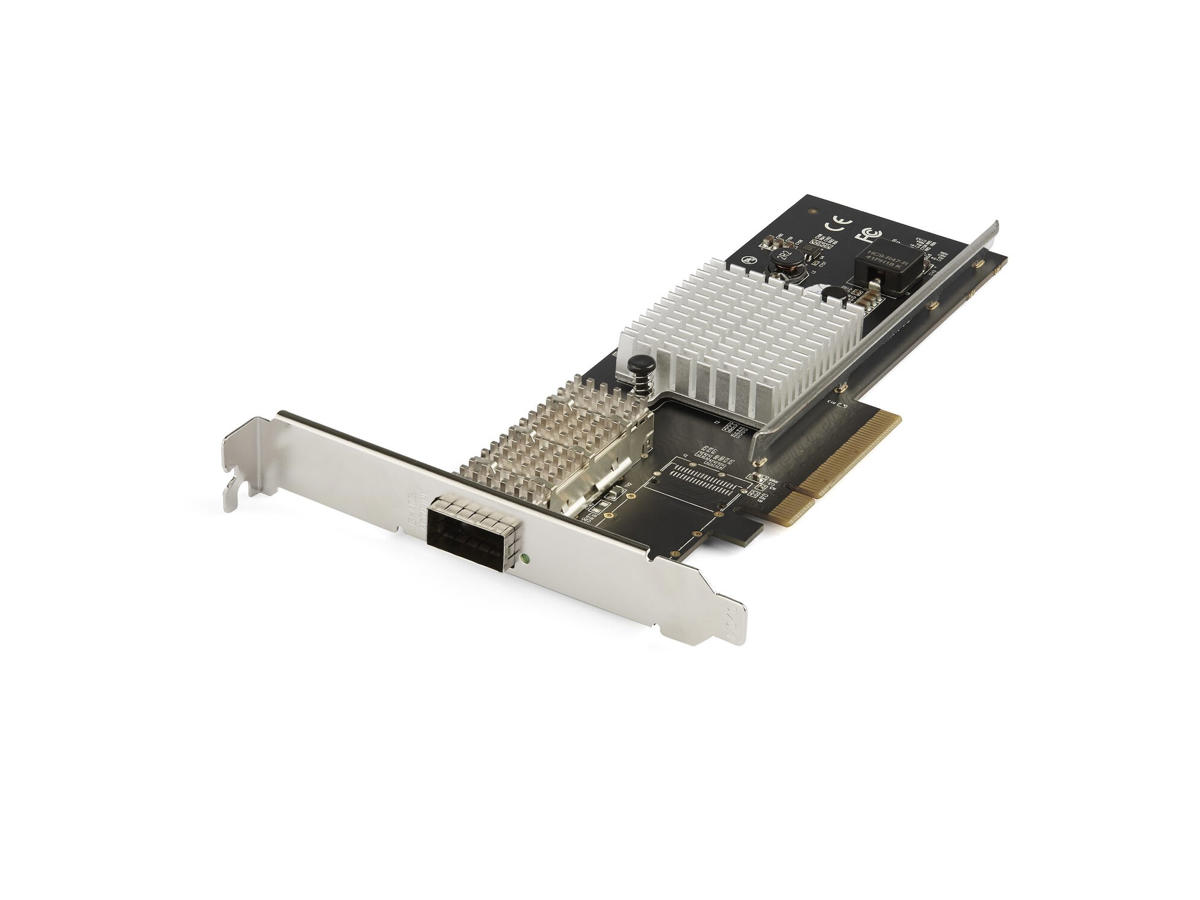

Converged Fiber NIC Adapter | PCIe | 40Gbps | 1x QSFP+ Slot
Get fast, high-bandwidth connectivity with this QSFP+ server network card. The converged network adapter adds an open QSFP+ slot to your server or workstation. The 40Gb NIC features an Intel controller and provides reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.
Increase Your Network Speed
This QSFP+ server NIC lets you take advantage of the speed and stability of a 40 Gigabit Ethernet network, with data transfers of up to 40Gbps.
Add Scalable Network Connections
With an open QSFP+ slot, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
Enhance Your Network Capabilities
The 40Gb NIC uses an Intel XL710 chipset, providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The PEX40GQSFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | PCI Express |
Grænseflade | Fiber |
Fiberkanal porte | 1 |
Fiber optisk strømstik | QSFP+ |
Netværk | |
Maksimal dataoverførselshastighed | 40000 Mbit/s |
Netværksstandarder | IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3x |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
VLAN mærkning | Ja |
Design | |
Intern | Ja |
Produktfarve | Sort |
Chipsæt | Intel® XL710-BM1 |
LED-indikatorer | Ja |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Understøttede operativsystemer til servere | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 57 °C |
Opbevaringstemperatur (T-T) | -20 - 85 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Bredde | 121 mm |
Dybde | 181 mm |
Højde | 20 mm |
Vægt | 112 g |
Emballeringsdata | |
Simpelt beslag | Ja |
Pakkebredde | 114 mm |
Pakkedybde | 207 mm |
Pakkehøjde | 38 mm |
Pakkevægt | 242 g |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Hovedkassens bredde (udvendigt) | 420 mm |
Hovedkassens længde (udvendigt) | 440 mm |
Hovedkassen højde (udvendigt) | 320 mm |
Produkter pr. hovedkasse (udvendigt) | 40 stk |
Andre funktioner | |
Hurtig start guide | Ja |
Flowkontrol support | Ja |
