iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | PCI Express |
Grænseflade | Ethernet |
Ethernet LAN-porte (RJ-45) | 1 |
PCI version | 2.1 |
Netværk | |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Ethernet LAN | Ja |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Kabelteknologi | 10/100/1000BaseT(X) |
Maksimal driftstilstand | 100 m |
LAN Kontroller | Intel I210 |
Design | |
Intern | Ja |
Kompatible produkter | Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL |
Vægt & størrelser | |
Bredde | 65 mm |
Dybde | 20 mm |
Højde | 55 mm |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Andre funktioner | |
Kabeltype | RJ45 Category 5, up to 100 m |
Markedssegment | Server |
Termisk effekt | 1 W |
Intel® Virtual Machine Device Queues (VMDq) | Ingen |
PCI-SIG* SR-IOV kompetent | Ingen |
On-chip QoS og trafik administration | Ingen |
Intel® Fleksibel Port-deling | Ingen |
Speed & slot width | 2.5 GT/s, x1 Lane |
Muligheder med lav halogen tilgængelig | Ingen |
Intelligent Offloads | Ja |
iWARP/RDMA | Ingen |
Fiberkanal over ethernet | Ingen |
Intel® Ethernet Power Administration | Ja |
Intel® Data Direct I/O Teknologi | Ingen |
Grænsefladetype | PCIe v2.1 (2.5 GT/s) |
Konfliktfri | Ja |
Produkttype | Network Interface Card |
Thermal Design Power (TDP) | 1 W |
Antal QPI-lins | Single |
Processorserie | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
Ethernet adapter ARK ID | 68668 |
Eksportkontrolklassisfikationsnummer (ECCN) | 5A991 |
Automatiseret sporingssystem til vareklassificering (CCATS) | NA |
Controller type | Intel I210 |
Beslagshøjde | Low-Profile (LP) / Full-Height (FH) |
Fødselsdato | Q1'13 |
Lanceringsdato | Q1'13 |
Netværkskort kabel medium | Copper |
Netværkskorttype | Server |
Produktbeskrivelse URL | http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html |

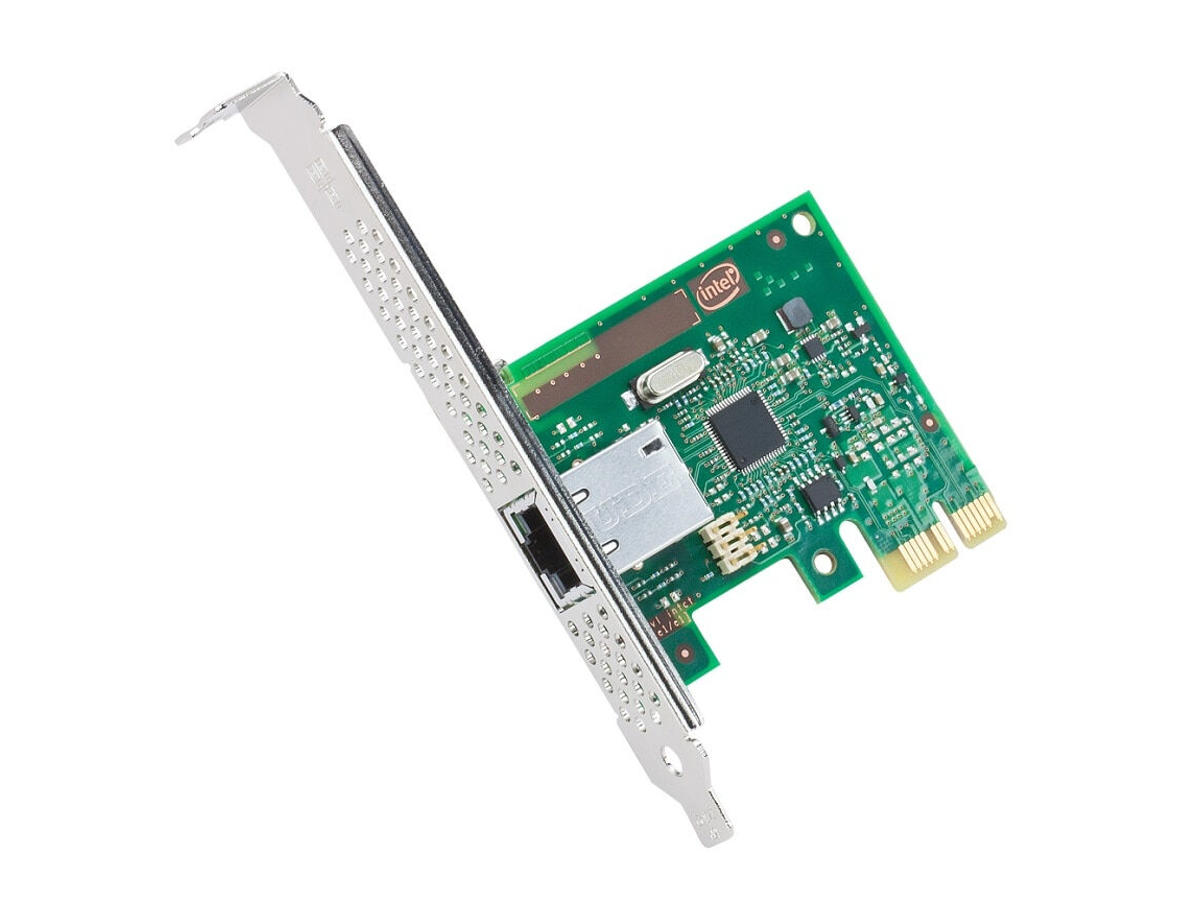

Produktnavn | Intel Ethernet Server Adapter I210-T1 |
Status | Launched |
Sidste ændring | 63903513 |
Produktfamilie | Intel Gigabit server adapter |
Produktserie | Intel I210 |
