iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | PCI Express |
Grænseflade | Ethernet |
Ethernet LAN-porte (RJ-45) | 2 |
PCI version | 2.1 |
PCI-kort formfaktor | Fuld højde (lav profil) |
Netværk | |
Maksimal dataoverførselshastighed | 1000 Mbit/s |
Netværksstandarder | IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Ethernet LAN | Ja |
Ethernet LAN-datahastigheder | 1000 Mbit/s |
Kabelteknologi | 10/100/1000BaseT(X) |
Fuld duplex | Ja |
Understøttede netværksprotokoller | TCP, UDP, IP |
Maksimal driftstilstand | 100 m |
LAN Kontroller | Intel® I350 |
Design | |
Intern | Ja |
Komponent til | Server |
Chipsæt | Intel® I350 |
Strømstyring | |
Strømforbrug (typisk) | 5 W |
Systemkrav | |
Kompatible operativsystemer | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 55 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 35 - 90% |
Vægt & størrelser | |
Bredde | 68,9 mm |
Dybde | 135,4 mm |
Logistik data | |
Harmoniseret systemkode (HS) | 8517620090 |
Andre funktioner | |
Kabeltype | Cat 5 up to 100m |
Markedssegment | Server |
Intel® Virtual Machine Device Queues (VMDq) | Ja |
PCI-SIG* SR-IOV kompetent | Ja |
On-chip QoS og trafik administration | Ja |
Intel® Fleksibel Port-deling | Ja |
Lagring over ethernet | Ja |
Speed & slot width | 5.0 GT/s, x4 Lane |
Muligheder med lav halogen tilgængelig | Ingen |
Intelligent Offloads | Ja |
iWARP/RDMA | Ingen |
Intel® Ethernet Power Administration | Ja |
Intel® Virtualization Technology for Connectivity (VT-c) | Ja |
Grænsefladetype | PCIe v2.1 (5.0 GT/s) |

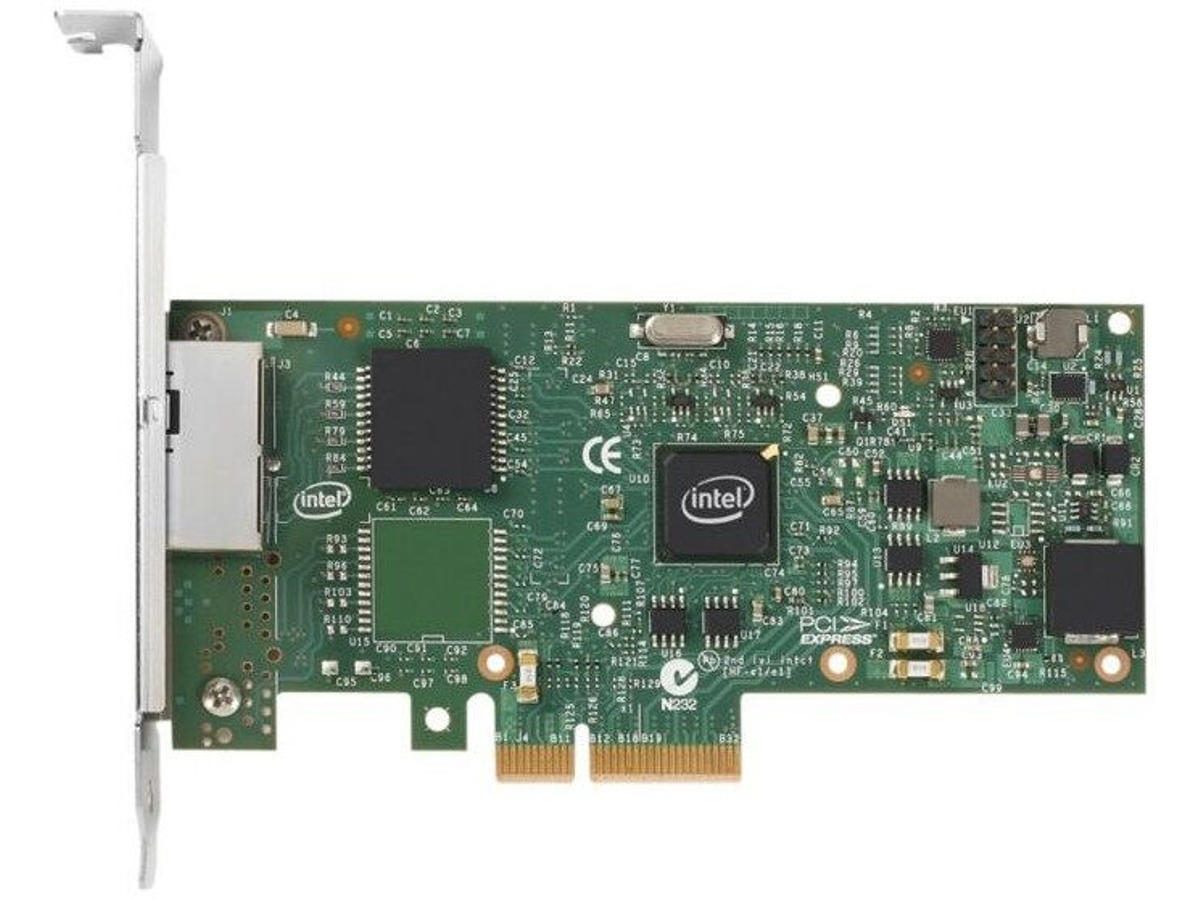

Produkttype | Network Interface Card |
Thermal Design Power (TDP) | 4,4 W |
Processorserie | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
Ethernet adapter ARK ID | 84804 |
Eksportkontrolklassisfikationsnummer (ECCN) | 5A991.B.4.A |
Automatiseret sporingssystem til vareklassificering (CCATS) | NA |
Controller type | Intel I350 |
Beslagshøjde | Low-Profile (LP) / Full-Height (FH) |
Opbevaring over ethernet | iSCSI, NFS |
Lanceringsdato | Q3'14 |
Netværkskort kabel medium | Copper |
Netværkskorttype | Server |
Produktbeskrivelse URL | http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350 |
Status | Launched |
Sidste ændring | 63903513 |
Produktfamilie | Intel Gigabit server adapter |
Produktserie | Intel® I350 |
Produktkode navn | Powerville |
