Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | PCI Express |
Grænseflade | Fiber |
Ethernet LAN-porte (RJ-45) | 1 |
Fiberkanal porte | 1 |
Fiber optisk strømstik | QSFP+ |
PCI version | 3.0 |
Netværk | |
Maksimal dataoverførselshastighed | 40000 Mbit/s |
Netværksstandarder | IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad |
Ethernet-grænsefladetype | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
Ethernet LAN-datahastigheder | 10000,40000 Mbit/s |
Fiber ethernet kabelteknologi | 40GBASE-SR4 |
VLAN mærkning | Ja |
iSCSI-understøttelse | Ja |
Balance system | Ja |
Maksimal driftstilstand | 7 m |
LAN Kontroller | Intel® XL710 |
Design | |
Intern | Ja |
Produktfarve | Sort, Grøn |
Systemkrav | |
Kompatible operativsystemer | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
Understøttede Linux-operativsystemer | Ja |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 55 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 90% |
Logistik data | |
Harmoniseret systemkode (HS) | 8517620090 |
Andre funktioner | |
Dataoverførselshastighed | 8 GT/s |
Kabeltype | QSFP+ Direct Attach Copper Cable (Twinaxial)(1-7m) / 40GBASE-SR4 Optics also supported (Purchase Intel branded optics separately), QSFP+ Direct Attach Copper Cable (Twinaxial)(1-7m) / 40GBASE-SR4 Optics also supported (Purchase Intel branded optics separately) |
Markedssegment | Server |
Flowkontrol support | Ja |
Antal VLAN'er | 4096 |
Intel® Virtual Machine Device Queues (VMDq) | Ja |
PCI-SIG* SR-IOV kompetent | Ja |
On-chip QoS og trafik administration | Ja |
Intel® Fleksibel Port-deling | Ja |
Speed & slot width | 8.0 GT/s, x8 Lane |
Muligheder med lav halogen tilgængelig | Ingen |
Intelligent Offloads | Ja |
iWARP/RDMA | Ingen |
Intel® Data Direct I/O Teknologi | Ja |
Intel® Virtualization Technology for Connectivity (VT-c) | Ja |
Grænsefladetype | PCIe v3.0 (8.0 GT/s) |

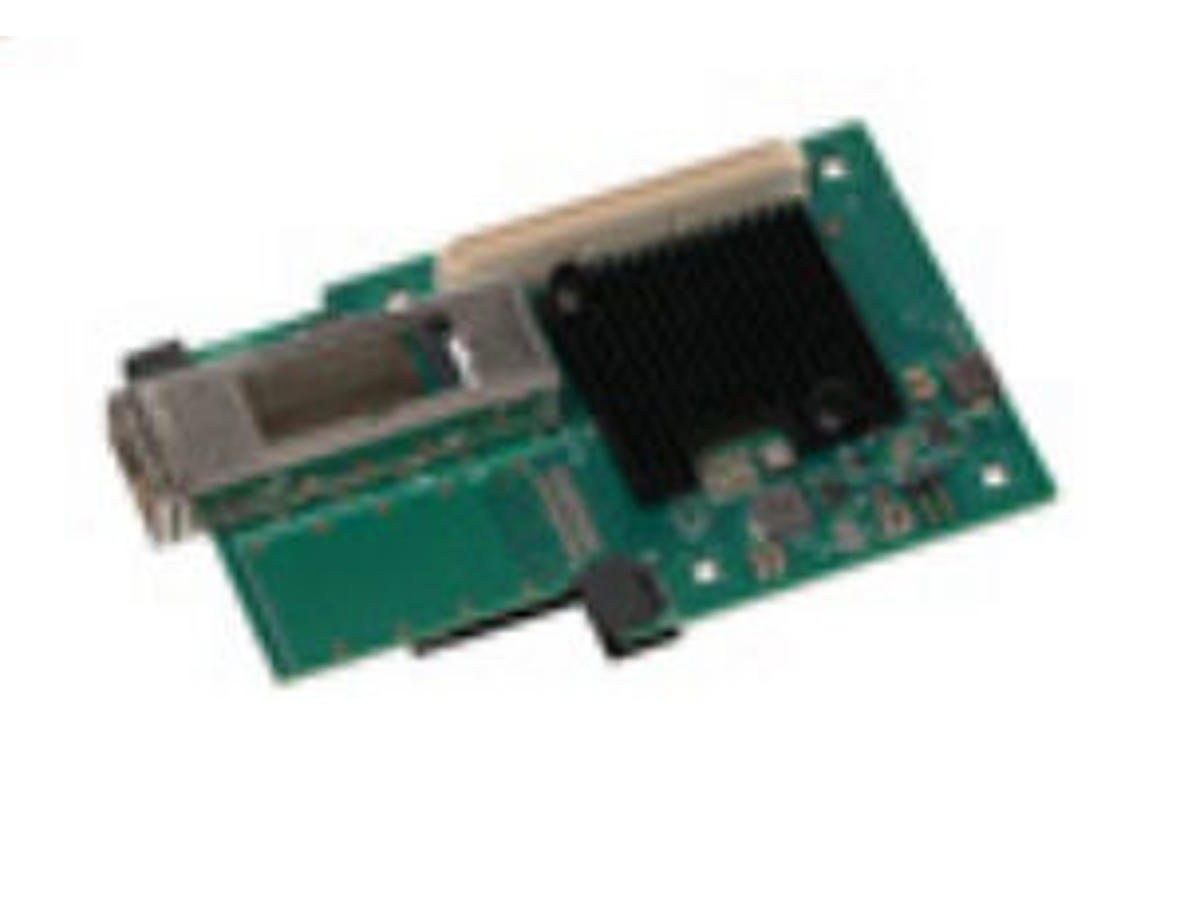

Produkttype | Network Interface Card |
Processorserie | 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) |
Ethernet adapter ARK ID | 96046 |
Eksportkontrolklassisfikationsnummer (ECCN) | 5A991 |
Automatiseret sporingssystem til vareklassificering (CCATS) | NA |
Controller type | Intel® Ethernet Controller XL710 |
Beslagshøjde | OCP form factor (Mezz 2.0 Design Spec) |
Målgruppe | Artificial Intelligence, High Performance Computing |
Opbevaring over ethernet | iSCSI, NFS |
Lanceringsdato | Q3'16 |
Netværkskort kabel medium | Copper |
Netværkskorttype | Server |
Produktbeskrivelse URL | http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ethernet-server-adapter-xl710-ocp-brief.pdf |
Status | Launched |
Sidste ændring | 64826846 |
Produktfamilie | Intel 10 Gigabit server adapter |
Produktserie | 700 Series Network Adapters (up to 40GbE) |
