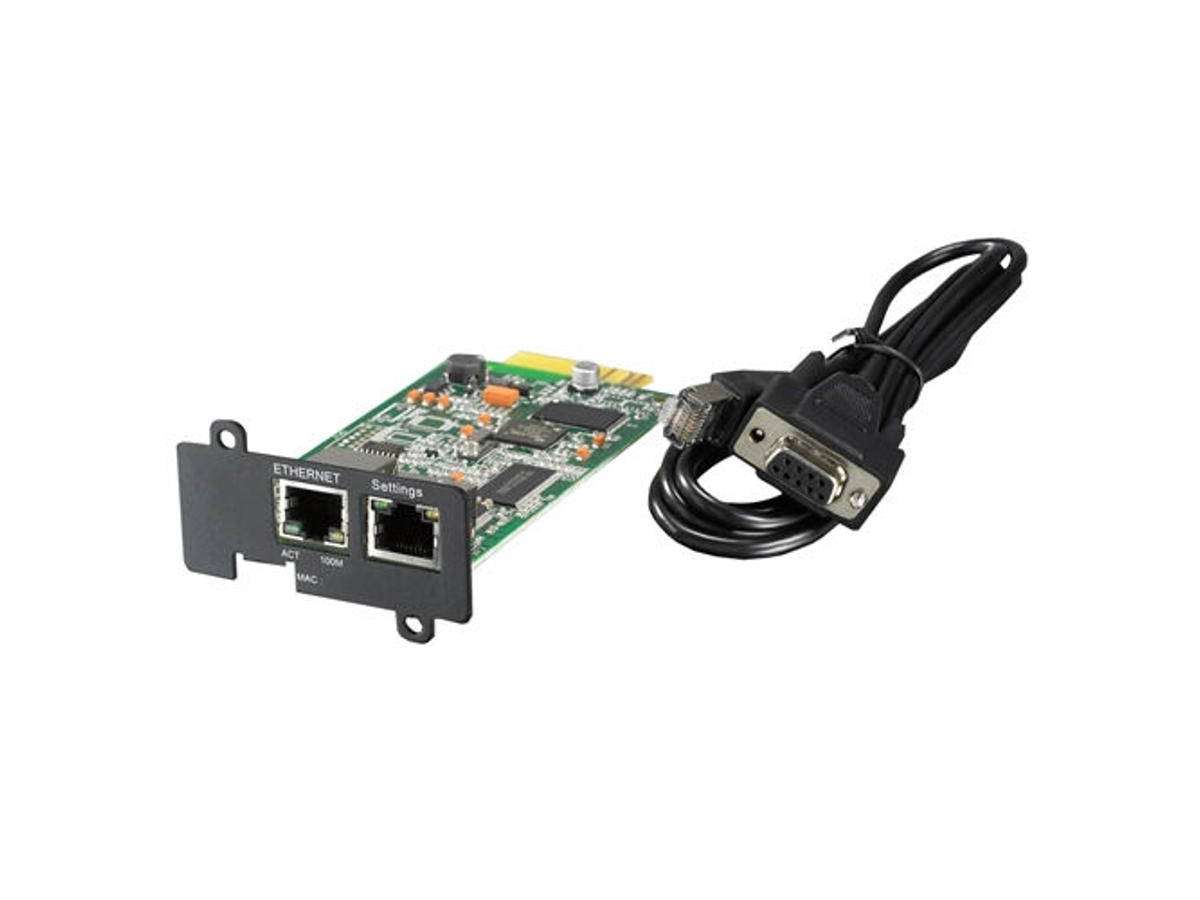

The Dell™ UPS Network Management Card works with Dell UPS Management Software to monitor, manage, and protect uninterruptible power supplies (UPSs) through standard Web pages, Simple Network Management Protocol (SNMP), and Secure Sockets Layer (SSL) security protocol. The Dell UPS Network Management Card can support up to five connected browsers at a time, or three with SSL protocol. You can configure the card with any one of the following options: Web browser, Local serial link (network parameters), Bootstrap Protocol/Dynamic Host Configuration Protocol (BOOTP/DHCP, network parameters). In addition, the Dell Network Management Card has the following features: Simultaneous monitoring of up to five connected browsers (three in SSL), Configuration of automatic e-mail message in response to UPS alarms and to transmit periodic reports, Control of UPS on/off switching with a Web browser, Adjustment and control of load segments through the Web interface, including sequential starting of the installation and optimization of backup time by shutting down non-priority systems, Automatic date and time adjustment through an NTP server, Protection by encrypted password, Protection by secure SSL connection (enabled by default), Recording of events and measurements in the non-volatile memory. Languages available: - English - French - Spanish - German - Simplified Chinese - Japanese - Russian - Korean - Traditional Chinese. Card firmware updated through the network. UPS firmware updated through the network. Fast Ethernet 10/100 MB compatibility with auto-negotiation on the RJ-45 port. Connection to the card with straight CAT 5 RJ-45 network cables [maximum card distance is 20m (65 ft)]. Easy installation—the Dell Network Management Card can be installed while the UPS is online, maintaining the highest system availability. Compatibility with the Internet Engineering Task Force (IETF) Management Information Base (MIB) and the Dell MIB.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Grænseflade | Ethernet |
Ethernet LAN-porte (RJ-45) | 2 |
Netværk | |
Maksimal dataoverførselshastighed | 100 Mbit/s |
Netværksstandarder | IEEE 802.3 |
Ethernet LAN | Ja |
Ethernet LAN-datahastigheder | 10,100 Mbit/s |
Kabelteknologi | 10/100BaseT(X) |
Webbaseret administration | Ja |
Understøttede netværksprotokoller | TCP/IP, NTP, SMTP, DHCP, DNS |
Design | |
Intern | Ja |
Produktfarve | Grøn |
Kompatible produkter | DELL PowerEdge 1950 III, 2900 III, 2950 III, 2970, R200, R300, R410, R610, R710, R805, R900, T100, T105, T110, T300, T310, T610, T710; PowerVault MD1000, MD3000, MD3000i, NX3000 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
Vægt & størrelser | |
Bredde | 132 mm |
Dybde | 66 mm |
Højde | 40,6 mm |
Vægt | 70,8 g |
Emballeringsdata | |
Antal | 1 |
Emballage indhold | |
Kabler inkluderet | LAN (RJ-45) |
Andre funktioner | |
Administrationsprotokoller | SNMP 1, HTTP, HTTPS |
