Fast and easy connection with USB

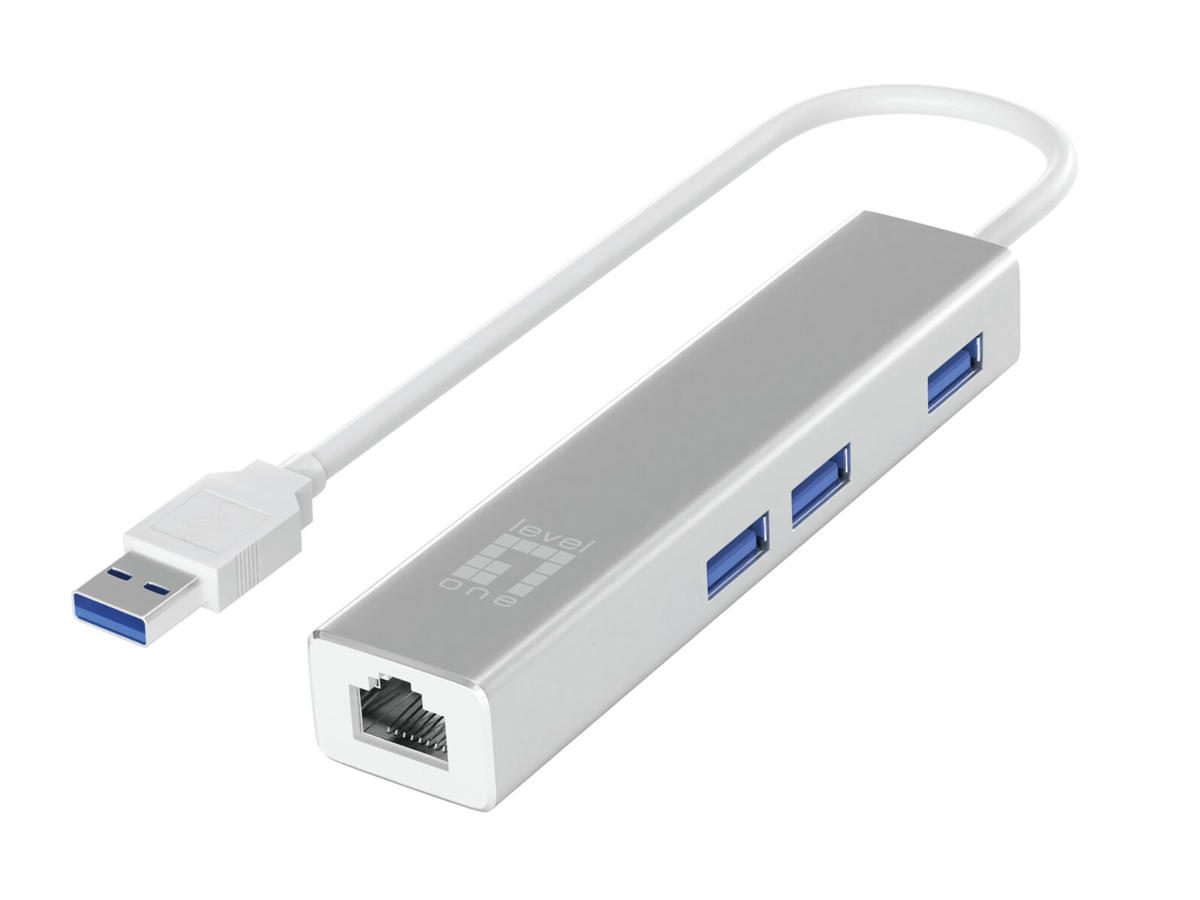

The LevelOne USB Hub and Gigabit Ethernet Combo Adapter allows you to connect to the internet easily through the built-in USB port on your laptop. Now you no longer need to have an Ethernet connection in order to surf the web. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0503 easily does the job, all through your USB port. The USB-0503 also combines a regular USB hub. So you can connect external USB peripherals, such as a MP3 player, digital camera, printer or pen drive. The USB-0503 establishes a direct point-to-point contact between the hub and the adapter that\\\'s plugged into your PC.
Reliable, efficient and standards compliant
The USB-0503 is USB 1.0, 2.0, and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB |
Grænseflade | Ethernet |
Ethernet LAN-porte (RJ-45) | 1 |
Antal USB-porte | 3 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte | 3 |
USB version | 3.2 Gen 1 (3.1 Gen 1) |
Netværk | |
Maksimal dataoverførselshastighed | 1000 Mbit/s |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
Ethernet LAN | Ja |
Ethernet-grænsefladetype | Gigabit Ethernet |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Kabelteknologi | 10/100/1000BaseT(X) |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
Wake-on-LAN klar | Ja |
Fuld duplex | Ja |
Understøttede netværksprotokoller | IPv4/IPv6 |
Design | |
Intern | Ingen |
Produktfarve | Sølv, Hvid |
Hot-swap | Ja |
Plug and play | Ja |
Oprindelsesland | Kina |
Certificering | CE |
Strømstyring | |
Indgangsstrøm | 0.9 A |
Udgangsspænding | 5 V |
USB-drevet | Ja |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Understøttede Mac-operativsystemer | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -5 - 80 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 85% |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 85% |
Vægt & størrelser | |
Bredde | 27 mm |
Dybde | 16 mm |
Højde | 95 mm |
Vægt | 42 g |
Emballeringsdata | |
Pakketype | Kasse |
Pakkebredde | 90 mm |
Pakkedybde | 21 mm |
Pakkehøjde | 165 mm |
Pakkevægt | 60 g |
Emballage indhold | |
Hurtig installationsvejledning | Ja |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Hovedkassens bredde (udvendigt) | 33,5 mm |
Hovedkassens længde (udvendigt) | 20 mm |
Hovedkassen højde (udvendigt) | 44 mm |
Hovedkassens bruttovægt (udvendigt) | 5,5 kg |
Produkter pr. hovedkasse (udvendigt) | 80 stk |
Andre funktioner | |
Flowkontrol support | Ja |
